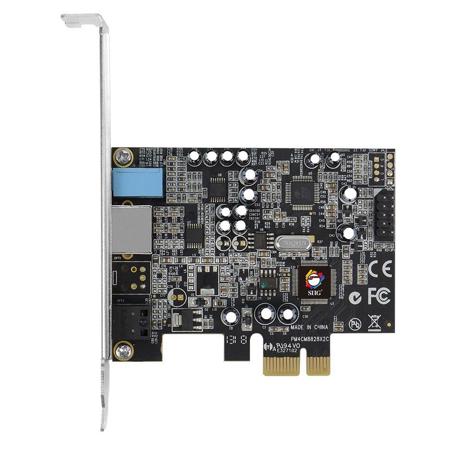

SIIG Dual Profile Dolby Digital 5.1 Surround Sound Card, S/PDIF Optical Out
See all SIIG items

SIIG Dual Profile Dolby Digital 5.1 24-bit Surround Sound Card with S/PDIF Optical Out

SKU: SIIIC510211S

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

SIIG Sound Card Specifications

  • Requirements

    Desktop PC with an available PCI-Express slot
    Windows 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit)

  • Chipset

    C-Media CM9862A + CM8826

  • Compliant with

    PCI-Express 1.1 specification

  • Supports

    Dolby Digital EX and DTS ES 5.1 CH (S/PDIF optical only)

  • Controller

    Built-in HD Audio controller

  • Full-duplex

    DAC/ADC supports simultaneous playback and record

  • S/N ratio

    97dB

  • THD + Noise

    -84dB

  • Impedance

    Input: 65kOhms
    Output: 200Ohms

  • Connectors

    3.5mm jack, Female, Stereo Line-in
    Mini Din for fanout audio cable
    Optical connector for S/PDIF output

  • Fanout cable

    MD9M to DC3.5
    Pink connector: MIC audio input
    Green connector: Front audio output
    Yellow connector: Center audio output
    Gray connector: Back surround audio output

  • Operating Temperature

    32 to 122 deg. F (0 to 50 deg. C)

  • Storage Temperature

    -4 to 140 deg. F (-20 to 60 deg. C)

  • Relative Humidity

    < 85% RH (non-condensing)

  • Certifications/Standards

    FCC, CE, RoHS

  • Dimensions (WxHxD)

    3.86 x 4.72 x 0.79" (9.80 x 11.99 x 2.01cm)

  • Weight

    1.76 oz (49.90g)

  • UPC Code

    662774021331

About SIIG Sound Card

• High-definition 5.1 channel surround sound transforms your PC into a home theater system
• S/PDIF optical output provides true 5.1-ch sound (* Requires DVD playback software, S/PDIF decoder, Toslink fiber optic cable and 5.1-ch speakers)
• Perfect audio upgrade for DVD playback, MP3 or other music, gaming and more!
• Supports Dolby Digital EX and DTS ES 5.1 CH (S/PDIF optical only)
• Reduces unwanted static and noises from D/A processing
• Dual profile design to work in standard height and low profile chassis with the included brackets

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • SIIG Dual Profile Dolby Digital 5.1 24-bit Surround Sound Card with S/PDIF Optical Out
  • Fanout Audio Cable
  • Spare Low Profile Bracket
  • Software CD
  • Installation Guide
  • SIIG 5 Year Limited Warranty
