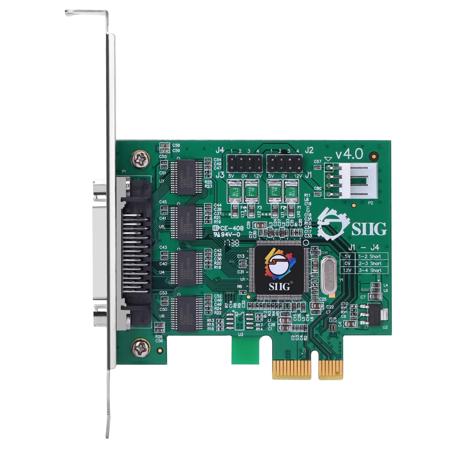

SIIG DP CyberSerial 4S PCIe Card

SIIG PCIe Card Features

• PCI Express 1-lane (x1) adapter works with PCI Express slots with different lane width
• Installs in any available PCI Express slot
• Four high-speed 16550 UART RS-232 serial ports (9-pin) support asynchronous baud rates up to 921Kbps
• Works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.). Configurable via jumpers with silk-screened settings on PCB
• Built-in 256-byte FIFO buffers dramatically increase data transmit/receive speed, especially under Windows multitasking environment
• Spare enhanced low profile bracket is included to work in low profile chassis
• Onboard power connector to provide reliable power source for devices that require power
• 4-layer PCB board: separate layers for data and grounding. Greatly reduces signal noise and loss. Delivers more reliable high-speed data transfers
