SIIG M.2 NGFF SSD PCIe Card Adapter
See all SIIG items

SIIG M.2 NGFF SSD PCIe Card Adapter

SKU: SIISCM20014S
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

SIIG M.2 NGFF SSD PCIe Card Adapter Specifications

  • Requirements

    Desktop PC with an available x4 (or larger) PCIe slot
    M.2 PCIe (M key) SSD
    Windows 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / Server 2012 R2 / 2008 R2

  • Compliant

    PCIe 3.0 compliant

  • Bus type

    4x PCIe

  • Drive Type

    M key M.2 PCIe SSD (NVMe or AHCI)

  • Connector

    Host bus connector: 4x PCI Express
    SSD: M.2 connector (M key)

  • Compatible Drive Length

    30mm (1.18")
    42mm (1.65")
    60mm (2.36")
    80mm (3.15")

  • Operating Temperature

    32 to 122 deg. F (0 to 50 deg. C)

  • Storage Temperature

    14 to 140 deg. F (-10 to 60 deg. C)

  • Relative Humidity

    10% to 90% RH (non-condensing)

  • Certifications/Standards

    FCC, CE, RoHS

  • Dimensions (WxHxD)

    4.72 x 0.79 x 3.54" (11.99 x 2.01 x 8.99cm)

  • Weight

    1.44 oz (40.82g)

  • UPC Code

    662774026008

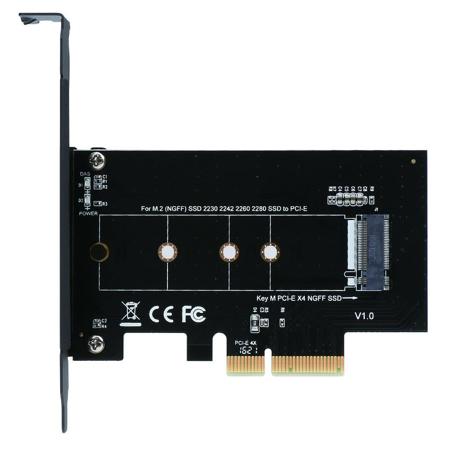

About SIIG M.2 NGFF SSD PCIe Card Adapter

Adds one M.2 PCIe SSD (M key, NVMe, AHCI) to your PCIe equipped desktop computer.

SIIG M.2 NGFF SSD PCIe Card Adapter Features

  • Adds one M.2 PCIe SSD (M key) to your PCIe equipped desktop computer to dramatically increase speed and performance (This adapter is not compatible with B key M.2 PCIe SSDs or B key M.2 SATA SSDs)
  • Accommodates 2230, 2242, 2260 and 2280 form factor M.2 SSDs (NVMe or AHCI) via multiple mounting holes
  • Supports PCIe 3.0 motherboard and backward compatible with PCIe 1.0 and PCIe 2.0
  • Supports PCIe x4 bus slot and compatible with x8 / x16 bus slot
  • Built-in LEDs indicate power and data transfer status
  • Includes both low-profile and full-profile slot brackets for flexible system chassis installation
  • No driver installation required

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • SIIG M.2 NGFF SSD PCIe Card Adapter
  • Spare Low Profile Bracket
  • User Reference Guide
  • SIIG 1 Year Limited Warranty
