SIIG 4-Port USB 3.0 PCIe Host Adapter
See all SIIG items

SIIG 4-Port USB 3.0 PCIe Host Adapter, 5Gbps Data Transfer Rate Support

SKU: SIJUP40412S1

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

SIIG 4-Port USB 3.0 PCIe Host Adapter Specifications

  • Chipset

    Renesas uPD720201

  • Connectors

    4x 9-pin, Type A, USB 3.0, Female, External
    15-pin, SATA power connector

  • Data transfer rate support

    Up to 5Gb/s

  • System Requirements

    Desktop PC with an available PCI Express (PCIe) slot
    Windows 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2008 R2 / Server 2003 & 2008 (32-/64-bit)

  • Operating temperature

    32 to 120 deg. F (0 to 48 deg. C)

  • Storage temperature

    -4 to 140 deg. F (-20 to 60 deg. C)

  • Operating humidity

    20% to 80% RH

  • Storage humidity

    10% to 90% RH

  • Certifications/Standards

    FCC, CE, RoHS

  • Dimensions (W x D x H)

    2.76 x 0.79 x 4.72" / 70.1 x 20.07 x 119.89mm

  • Weight

    0.12lbs / 0.05kg

  • UPC Code

    662774015484

About SIIG 4-Port USB 3.0 PCIe Host Adapter

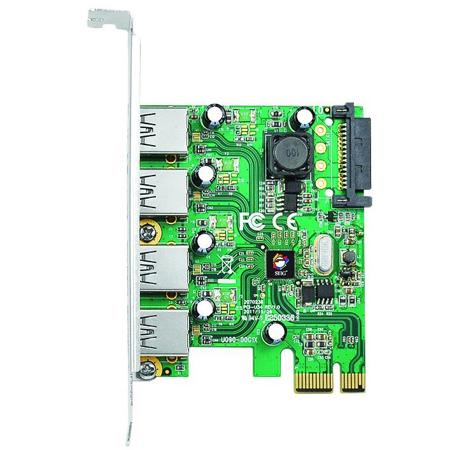

The SIIG 4-Port USB 3.0 PCIe easily adds four external USB 3.0 ports to your PCIe-enabled desktop computer. This USB 3.0 adapter features per-port over-current protection to protect your connected devices and the adapter itself from unforeseen power surges and offers full backward compatibility with USB 2.0 and 1.1 devices while allowing for simultaneous connection of multiple USB 3.0/2.0/1.1 devices. The 4-port USB 3.0 PCIe delivers power and performance enabling you to meet all your daily computing needs.

SIIG 4-Port USB 3.0 PCIe Host Adapter Features

  • Adds four external USB 3.0 ports to your PCIe-enabled desktop PC
  • Works with high-bandwidth USB 3.0 devices, such as external hard disks, high resolution webcams, video surveillance cameras, digital video cameras, multi-channel audio and more
  • Supports data transfer rate up to 5Gb/s and backward compatible with USB 2.0/1.1 devices
  • Supports per port over-current protection
  • Powered by Renesas (NEC) chipset for maximum compatibility
  • Supports UASP function (with Windows 8 native USB 3.0 Host driver only)
  • Compliant with Universal Serial Bus 3.0 Specification
  • Compliant with PCI Express Base Specification, Revision 2.0

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Adds four external USB 3.0 ports to PCIe-enabled desktop PC
  • Works with high-bandwidth USB 3.0 devices
  • Supports data transfer rate up to 5Gb/s
  • Backward compatible
  • USB 2.0/1.1 devices
  • Supports per port over-current protection

What's in the box:

  • SIIG 4-Port USB 3.0 PCIe Host Adapter
  • Driver CD
  • Installation Guide
  • SIIG Lifetime Limited Warranty
