Sirchie Scan-N-Find Pocket Imager Kit

SKU: SIKSS8900

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Sirchie Scan-N-Find Pocket Imager Kit Specifications

  • Objective Lens

    PSS100b 25mm quartz objective lens (wide-angle) with integral 254nm filter

  • Aperture

    f/2.8 fixed

  • Focus Range

    Approx. 14" to infinity within the 254nm wavelength band

  • Eyepiece (2x)

    Adjustable, 25mm eye relief with soft rubber eyecup

  • Image Intensifier Tube: Resolution

    >/=50 Lp/mm typical, with built-in over-brightness protection circuitry

  • Laser Pointer

    Class IIIa

About Sirchie Scan-N-Find Pocket Imager Kit

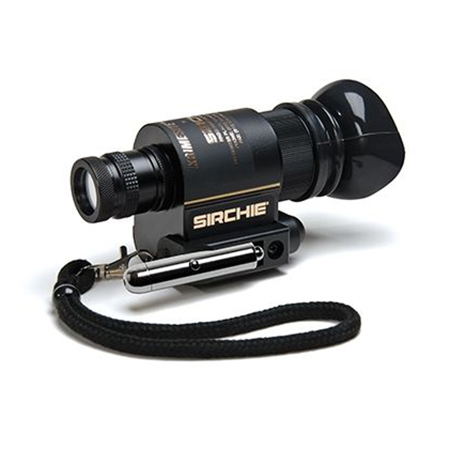

The Sirchie Scan-N-Find UV Imaging System simplifies the search for latent evidence that could be easily overlooked. With a variable focus wide-angle 30 mm UV lens, it is capable of scanning a large area in a short amount of time. In addition, the wide-field, focusable eyepiece assures the elimination of eyestrain. The imager's lightweight body is constructed from a single piece of extruded aluminum, which features a User-Facing Control Panel.

The unit is powered by a single CR123 lithium battery. The Laser Pointer, located on the left hand side, is powered by two type L1154 batteries. The KSS8997 Pocket Imager uses a high-quality image intensifier tube and the UV filter provides a peak UV transmission at 254 nm. The unit may be mounted on a tripod and it couples directly to the KSSDIG Digital Camera System (sold separately) to help facilitate photography.

What's in the box:

  • Sirchie KSS8997 Pocket Imager with PSS100b 25mm Objective Lens & 254nm Filter and Laser Pointer
  • CR123 Lithium Battery
  • 12 x AA Alkaline Batteries
  • UVP600ST UV Panther AC/DC Shortwave Light 254nm
  • 58mm Camera Adapter
  • CUV100ST UV Mini Light Source ( 4Watt & 254nm & Battery-Operated)
  • 2 x 797GV Protective Spectacles
  • KSS684 Arrow Designators (Pack of 100)
  • Operator's Manual
  • Carrying Case (Custom-Fitted & Moisture-resistant 21' X 9 X 16.5)
  • Sirchie Warranty
