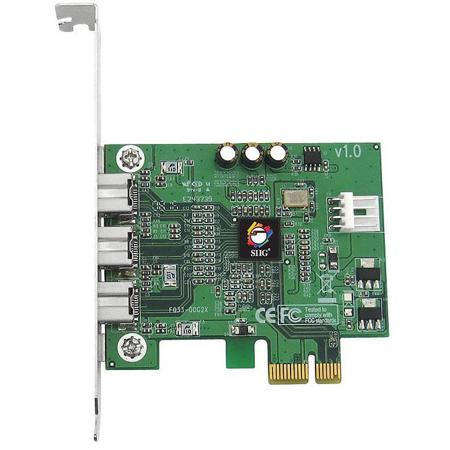

SIIG DP FireWire 800 PCIe Adapter Card

SKU: SINNFW0012S1

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

SIIG DP FireWire 800 PCIe Adapter Card Specifications

  • Chipset

    Texas Instruments TI XIO2213BZAY

  • Interfaces/Ports

    3x Firewire 800, 9-Pin, Female, External

  • Operating temperature

    32 to 122 deg. F / 0 to 50 deg. C

  • Storage temperature

    -4 to 140 deg. F / -20 to 60 deg. C

  • Operating humidity

    10% to 90% RH

  • Storage humidity

    10% to 90% RH

  • Certifications/Standards

    FCC, CE, RoHS

  • dimensions (W x H x D)

    4.72 x 3.62 x 0.79" / 11.99 x 9.19 x 2.01cm

  • Product weight

    0.1lbs / 0.05kg

  • UPC Code

    662774005614

About SIIG DP FireWire 800 PCIe Adapter Card

The SIIG DP FireWire 800 PCIe is a superior adapter card designed to add FireWire 800 interface to your computer for connecting multiple high-speed FireWire devices. It features three external FireWire 800 (1394b) ports, delivers data transfer rates up to 800 Mb/s, supports isochronous and asynchronous data transfer modes, features Plug-n-Play connection of peripheral devices and allows you to connect and disconnect devices without turning your system off.

It works flawlessly with a variety of FireWire 400 (1394a) and FireWire 800 (1394b) devices including DV camcorders, hard disk drive enclosures, digital cameras, scanners, CD-RW/DVD drives, video game systems and other audio/video devices. The DP FireWire 800 PCIe can be installed in any available PCI Express slot. It comes with a built-in 4-pin power connector to provide extra reliable power source from the system and a spare low profile bracket for systems with low profile system chassis installations.

SIIG DP FireWire 800 PCIe Adapter Card Features

  • Provides 3 FireWire 800 ports (9-pin) for multiple device connections
  • Works with DV camcorders, FireWire hard disks, digital cameras, scanners, CD-RW/DVD drives, video game systems and other audio/video devices
  • Installs in standard height or low profile chassis with included brackets
  • Compliant with IEEE 1394b and backward compatible with 1394a-2000 and 1394-1995 standards
  • Compliant with PCI Express Base Specification Revision 1.0a
  • Installs in any available PCI Express slot and supports serial bus data transfer rates of 100, 200, 400, 800 Mbps
  • Hot-swapping allows you to connect/detach devices without first turning your system off
  • Onboard power connector to provide more reliable power source

Key Features

  • Provides 3 FireWire 800 ports (9-pin) for multiple device connections
  • Installs in standard height or low profile chassis
  • Onboard power connector to provide more reliable power source

What's in the box:

  • SIIG DP FireWire 800 PCIe Adapter Card
  • Spare Low Profile Bracket
  • "Y" Split Power Cable
  • Driver CD
  • Installation Guide
  • SIIG Lifetime Limited Warranty
