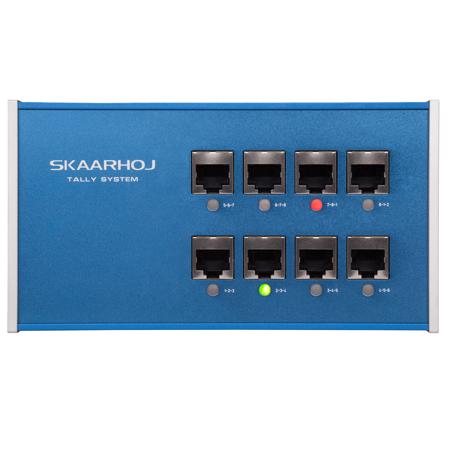

Skaarhoj 8-Channel Tally Box V2 for Blackmagic Design ATEM Switcher and vMix Software

SKU: SKAETHTALLV2 MFR: ETH-TALLY-LINK-V2
Earn VIP Reward Points

Key Features

  • Enhance your studio workflow with this 8-Channel Tally Box V2 for seamless operation.
  • Achieve perfect synchronization with Blackmagic ATEM Switchers and vMix software vision mixer.
  • Experience reliable connectivity up to 200m using standard CAT5e cable for your setup.
  • Durable enclosure ensures long-lasting performance in any professional recording studio.
  • Easily manage your audio setup with intuitive UniSketch OS for efficient control.
  • Compact design integrates effortlessly into your existing studio and recording equipment.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Skaarhoj Tally Box Specifications

  • Compatibility

    Blackmagic Design ATEM Production Switchers and vMix Software Vision Mixer

  • Works with (Tested)

    200m (656.16') CAT5e cable

  • Channel

    8-Channel

  • Enclosure

    Durable enclosure with blue anodized aluminum plates

  • Data links

    8x LAN, RJ-45
    1x USB, type B
    2x DC in, barrel connector

  • Power supply

    7.5V

  • Device Core

    UniSketch OS (Included)

  • Dimensions (W x H x D)

    16.7 x 8 x 2.9cm (6.57 x 3.15 x 1.14")

  • Weight

    0.35kg (0.77lb)

  • UPC Code

    5714074001638

About Skaarhoj Tally Box

You can elevate your live video production with the SKAARHOJ 8-Channel Tally Box V2, a reliable and user-friendly solution designed for seamless integration with Blackmagic Design ATEM Switchers and vMix software. This innovative tally system is equipped with two LEDs - one for the camera operator and a larger one for the presenter. The operator LED features both program and preview tally, while the presenter LED is dedicated to the program.

The system's two switches provide the operator with the ability to control the main LED and dim the operator LED, offering a high level of customization to suit your production needs. The SKAARHOJ Tally Box V2 can handle up to 8 tally lights, which can be connected directly via the box or daisy-chained from one tally light to another, providing a versatile and efficient solution for managing multiple inputs and outputs.

This durable tally system is an excellent addition to both consumer and prosumer cameras without an integrated tally solution. It's not just a small and simple tool, but a powerful asset for optimizing the flow of your production.

The SKAARHOJ Tally Box V2 is compatible with the entire range of ATEM Switchers, eliminating the need for the "GPI and Tally Interface" from Blackmagic. It connects to the ATEM Switcher via network for a streamlined setup. Additionally, it's compatible with vMix via the vMix Bridge Software, connecting to vMix via network for easy integration.

Furthermore, the ETH-GPI Link can take GPI signals and send them over ethernet to the Tally Box, which will then route it out to the lamps. This high-quality, innovative tally system from Skaarhoj is designed to distribute audio signals from multiple sources to multiple destinations, making it an indispensable tool for your live video production.

Skaarhoj Tally Box Features

  • Program + Preview Tally
  • Star connection
  • Daisy chain connection
  • Tested with 200m cable
  • UniSketch web interface for extensive configuration

Key Features

  • Enhance your studio workflow with this 8-Channel Tally Box V2 for seamless operation.
  • Achieve perfect synchronization with Blackmagic ATEM Switchers and vMix software vision mixer.
  • Experience reliable connectivity up to 200m using standard CAT5e cable for your setup.
  • Durable enclosure ensures long-lasting performance in any professional recording studio.
  • Easily manage your audio setup with intuitive UniSketch OS for efficient control.
  • Compact design integrates effortlessly into your existing studio and recording equipment.

What's in the box:

  • Tally Box V2
  • 12V Power Supply
  • USB Programming Cable
  • Networking Cable
  • UniSketch OS
  • Manuals and Software
  • Skaarhoj 1 Year Warranty
