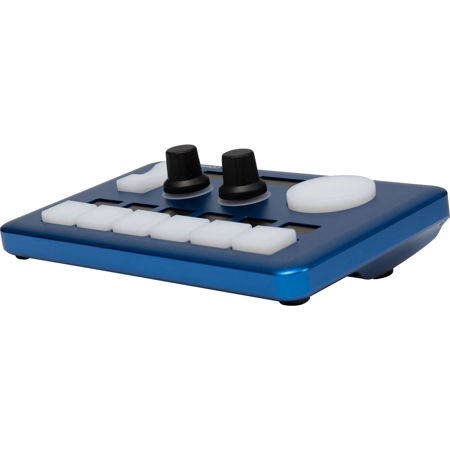

Skaarhoj PTZ Wiz V2 IP-Based Controller and Switcher, Blue

Take control of your professional video and audio equipment with the sleek and stylish PTZ Wiz V2 IP-Based Controller and Switcher in a striking blue color. This high-tech, user-friendly, and durable device is expertly crafted by Skaarhoj, a renowned brand celebrated for its superior quality equipment.

In Raw Panel mode, this controller functions as a TCP Client, connecting to a server IP address on port 9923. It sends simple action commands when buttons, encoders, faders, and other controls are activated. The server reciprocates by sending button colors and display content. The API is meticulously documented as 'UniSketch TCP Client' on our GitHub repository. In this mode, all logic is placed on the server, typically a custom-written software application.

The PTZ Wiz V2 is versatile, offering combined configurations for ATEM with Lumens VC-A50P, Panasonic PTZ cameras, Ross Pivotcam, NewTek NDI-HX-PTZ1, and PTZOptics PTx. The selector row sets and reflects the chosen camera and Preview/Program source from the ATEM, providing real-time information on which source is on air.

The AUTO/CUT buttons allow for a seamless CUT when pressed on the lower edge, while a press on the upper edge activates an auto transition. The SHIFT key, when pressed on the upper edge, cycles between PTZ adjustments settings for the two encoders. Pressing the lower edge toggles the selector row between camera/source selected and PTZ Presets.

The PTZ Wiz V2 also supports a combined configuration for vMix and PTZOptics, reflecting the chosen PTZOptics camera and Preview/Active source from vMix. It also offers a configuration for the CANON CR-N500, made with shift layers.

This controller and switcher is designed for hands-on use in professional settings like television studios or live events. It allows for quick and easy switching between different sources and control over various aspects of the video and audio output, making it an essential tool for any professional audio-visual setup.
