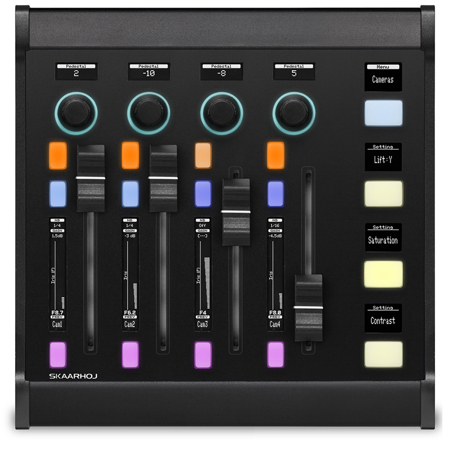

Skaarhoj Wave Board Mini Control Surface with Blue Pill Inside

SKU: SKAWBRDMNV1B MFR: W-BOARD-MINI-V1B
Earn VIP Reward Points

Key Features

  • Enjoy real-time streaming control with this intuitive Skaarhoj Wave Board Mini.
  • Experience high video quality management using four smooth, motorized faders.
  • The Skaarhoj control surface offers versatile compatibility with various systems.
  • Customize your workflow with 8 vibrant, programmable OLED screen displays.
  • Set up is easy; use Ethernet or Micro USB for quick network programming access.
  • Rely on robust connectivity via RJ45 Ethernet for seamless live production.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Skaarhoj Wave Board Mini Specifications

  • 4-way buttons

    4

  • Elastomer buttons

    12

  • Encoders

    4

  • Customizable OLED screen

    8

  • Analog components

    4 motorized faders

  • Country of Origin

    Denmark

  • Programming Port

    Ethernet (or Micro USB for setting manual IP)

  • Networking Port

    RJ45 Ethernet

  • Power Supply

    12V

  • Recommended cables

    LAN Cat 6 S/FTP or better (not in the box)

  • Power Consumption

    11 Watt

  • Operating System

    skaarOS (Blue Pill)

  • Dimensions (W x D x H)

    7.1 x 6.9 x 3.1" (180 x 175 x 80mm)

  • Weight

    2.2 lbs (1kg)

  • UPC Code

    5714074003076

About Skaarhoj Wave Board Mini

The Wave Board Mini Control Surface with Blue Pill Inside is a versatile tool designed to enhance your audio production experience. This universal fader bank is compatible with a wide range of audio mixing and processing devices, including the Direct Out Prodigy and Behringer X32. It also seamlessly integrates with any ATEM, TriCaster, or vMix setup, making it a valuable addition to your audio equipment collection.

This compact controller is perfect for smaller applications, but it can also be combined with the Wave Board to form a larger, more comprehensive control surface. The inclusion of Blue Pill Inside technology sets this product apart. This feature signifies that the hardware of a Blue Pill is integrated directly into your controller, eliminating the need for a separate Blue Pill and UniSketch panel.

The Wave Board Mini Control Surface is equipped with precise OLED VU meters, allowing you to monitor audio levels with pinpoint accuracy. It features four channel strips, each consisting of a back-lit encoder, motorized faders, and buttons for easy adjustment of parameters and volume control.

The RGB backlit encoders are complemented by crisp widescreen OLED legends, providing a clear and intuitive user interface. The device also supports Power over Ethernet (PoE) in accordance with the IEEE802.3at standard, offering a convenient, cable-free power solution.

In summary, the Wave Board Mini Control Surface with Blue Pill Inside is a robust, user-friendly device that offers a high level of control over your audio production, making it an essential tool for professionals in the field.

Skaarhoj Wave Board Mini Features

  • Universal fader bank for multiple 3rd party devices
  • Flexible user configuration
  • IP-based remote control, can be powered with PoE
  • Scroll through fader layers using button navigation
  • RGB backlit encoders with crisp widescreen OLED legends
  • Monitor audio levels with precise OLED VU meters
  • 4 channels strips each consisting of back-lit encoders, motorized faders and buttons for parameters and volume control
  • Ethernet with PoE (IEEE802.3at)
  • Designed and built in Denmark

Key Features

  • Enjoy real-time streaming control with this intuitive Skaarhoj Wave Board Mini.
  • Experience high video quality management using four smooth, motorized faders.
  • The Skaarhoj control surface offers versatile compatibility with various systems.
  • Customize your workflow with 8 vibrant, programmable OLED screen displays.
  • Set up is easy; use Ethernet or Micro USB for quick network programming access.
  • Rely on robust connectivity via RJ45 Ethernet for seamless live production.

What's in the box:

  • Skaarhoj Wave Board Mini Control Surface
  • 12V Power Supply
  • Skaarhoj 1 Year Limited Warranty
