Review Summary
CMOS linear image sensor
380 to 780 nm
1 nm
4.3" (11 cm) color dot matrix LCD color touchscreen
Ambient light: 1.0 to 200,000 lux (0.09 to 18,600 fc)
Flash: 20 to 20,500 lux
Illuminance: +/-5% +/-1 digit (1 to 3,000 lux), +/-7.5% MK +/-1 digit (3,000 to 200,000 lux) of displayed value
CCT: +/-4 MK-1 (standard illuminant A, 800 lux)
Illuminance: 1% +1 digit (30 to 200,000 lux), 5% +1 digit (1 to 30 lux) of displayed value
CCT: 2 MK-1 (500 to 100,000 lux)
CCT: 4 MK-1 (100 to 500 lux)
CCT: 8 MK-1 (30 to 100 lux)
CCT: 17 MK-1 (5 to 30 lux)
Within 9.0%
Within 6.0%
Illuminance: +/-5% of displayed value CCT: +/-12 MK-1 (standard illuminant A, 1,000 lux)
Illuminance: +/-3% of displayed value
CCT: +/-12 MK -1 (standard illuminant A, 1,000 lux)
2x AA 1.5 V (not included), USB bus power
Ambient max: 15 sec
Ambient min: 0.5 sec
Text mode, Spectral graph mode, CRI mode, Lighting Filter mode, Camera Filter mode, Spectral Comparison mode, Multi Lighting mode, White Balance mode
Standard System:
FCC and IC
Ch. 1 to 16, 344.04 MHz
Ch. 17 to 32, 346.5 - 354 MHz
CE
Ch.1 to 16, 433.62 MHz
Ch. 17 to 32, 434.22 MHz
ControlTL System:
FCC and IC
Ch. 1 to 4, 344 to 346 MHz
Ch. 5 to 20, 341.5 to 351 MHz
CE
Ch. 1 to 3, 433.42 - 434.42 MHz
Digital/Film mode, data memory: 99 data, preset function, auto power off, auto dimmer
English, Japanese, Chinese (simplified)
USB 2.0
14 to 140 deg. F (-10 to 60 deg. C)
14 to 104 deg. F (-10 to 40 deg. C)
Class A of JIS C 1609-1:2006 (illuminance meter part 1)
Body: 2.87 x 7.2 x 1" (72.90 x 182.88 x 25.40mm)
light receptor depth: 1.57" (39.88mm)
8.4oz (238.14g) (without batteries)
4962294011840

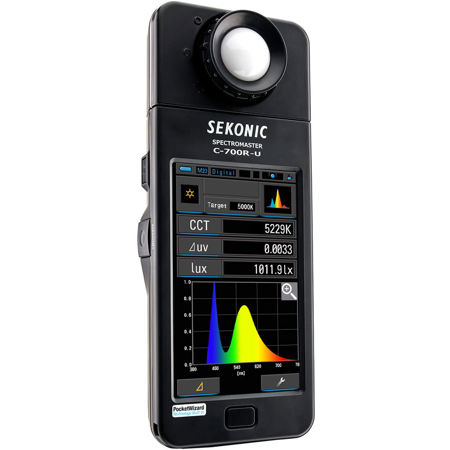

The Sekonic SpectroMaster C-700 is designed for motion and still image capturers who must produce quality results with proper subject color while working with multiple types and brands of light sources. A full-spectrum color meter, the C-700 can precisely measure LED, HMI, Fluorescent sources, new-style plasma lamps as well as tungsten lamps, natural light and electronic flash. Its high-resolution measuring system, featuring CMOS sensor, capture and displays spikes in light source output to provide unsurpassed color measurement accuracy.
The C-700's large, color touch screen displays light-source information as a color spectrum graph that is expandable for closer inspection, CRI (Ra plus R1 to R15), Kelvin (correlated color temperature), Illuminance (footcandle or Lux) and light source filtration values in Mired, CC index as well as filter correction values for major light source and lens filter brands. Its "Multi Lights" display enables quick data comparison of four lights with full data on each at the touch of a finger. Its "Multi Spectrum" mode enables displaying spectral graphs of three sources for quick visual comparison.
Different than any spectrometer today, the C-700 meter not only displays more ways to view and compare light-source information, it also provides filtration information to correct and modify light color for cleaner recording and simpler post process.
