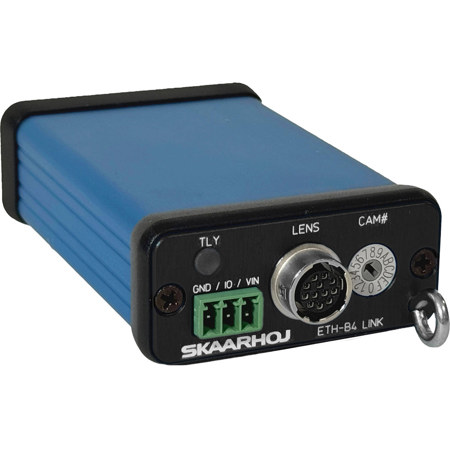

Skaarhoj ETH-B4 Link V2 Network Interface for 12-Pin Hirose Lenses
See all Skaarhoj items
New Arrival

Skaarhoj ETH-B4 Link V2 Network Interface for 12-Pin Hirose Lenses

SKU: SKETHB4LNKV2 MFR: ETH-B4-LINK-V2
Be the first to review this itemAsk a Question
$897.00
OR
$75/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Seamlessly integrate with 12-pin Hirose lenses for precise video control and reliability.
  • Enjoy flexible power options with 12V DC or Power over Ethernet (PoE) for versatile setups.
  • Experience robust 100 Mbit Ethernet networking, ensuring stable and responsive control.
  • Effortlessly update firmware and configure settings via the convenient Micro USB service port.
  • Benefit from the compact and portable design, making it ideal for on-the-go productions.
  • Achieve superior control precision for your video projects with this advanced network interface.
See More Product Details
New Item?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
2-Year Adorama Protect$79.99
3-Year Adorama Protect$99.99
4-Year Adorama Protect$129.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Skaarhoj ETH-B4 Link V2 Specifications

  • Color

    Blue

  • Power Supply

    12V DC Jack 0.22 x 0.08 x 0.39" (5.5 x 2.1 x 10mm) Center Positive PoE IEEE802.3af/t

  • Networking

    100 Mbit Ethernet w/Power over Ethernet (PoE IEEE802.3af)

  • Service Port

    Micro USB for updating firmwares and setting manual IP

  • Platform Link

    Link IO

  • Operating Conditions

    32 to 104 Degree F (0 to 40 Degree C) up to 90% Humidity

  • Storage Conditions

    -4 to 113 Degree F (-20 to 45 Degree C) up to 90% Humidity

  • Country of Origin

    Denmark

  • Dimensions

    3.4 x 2.2" (86 x 57mm)

  • Weight

    3.88 oz (110g)

  • UPC Code

    5714074003731

About Skaarhoj ETH-B4 Link V2

The ETH-B4 Link facilitates network connection for analog B4 broadcast lenses with a Hirose-12 connector, providing lens control via Ethernet. Utilizing SKAARHOJ's device cores, operators can precisely manage the iris of B4 lenses and access a dedicated tally channel. This device stands out with its incredibly light and compact form, offering a unique solution where iris control data is transmitted separately from camera control signals. Features include a camera selector switch for ID and IP configuration, analog output via Hirose-12 connector, and a dual-color tally lamp, along with a relay output for program tally signals, ensuring a comprehensive control experience.

Skaarhoj ETH-B4 Link V2 Features

  • Hirose-12 connector for analog broadcast lenses
  • Camera selector dip switch
  • Relay output for Tally
  • Tally LED integrated
  • 100 Mbit Ethernet w/Power over Ethernet (PoE IEEE802.3af)
  • Designed and made in Denmark
  • Enables precise network-based control of B4 lens iris, enhancing production quality
  • Light and compact form factor ensures easy integration into existing setups
  • Separate iris control data transmission for increased reliability and flexibility
  • Built-in camera selector switch for easy ID and IP management
  • Features a dual-color tally lamp and relay output for comprehensive tally solutions

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Seamlessly integrate with 12-pin Hirose lenses for precise video control and reliability.
  • Enjoy flexible power options with 12V DC or Power over Ethernet (PoE) for versatile setups.
  • Experience robust 100 Mbit Ethernet networking, ensuring stable and responsive control.
  • Effortlessly update firmware and configure settings via the convenient Micro USB service port.
  • Benefit from the compact and portable design, making it ideal for on-the-go productions.
  • Achieve superior control precision for your video projects with this advanced network interface.

What's in the box:

  • Skaarhoj ETH-B4 Link V2 Network Interface
  • 12V Power Supply
  • Micro-USB Cable
  • Link IO Software
  • User Manual
  • Skaarhoj 1 Year Limited Warranty
