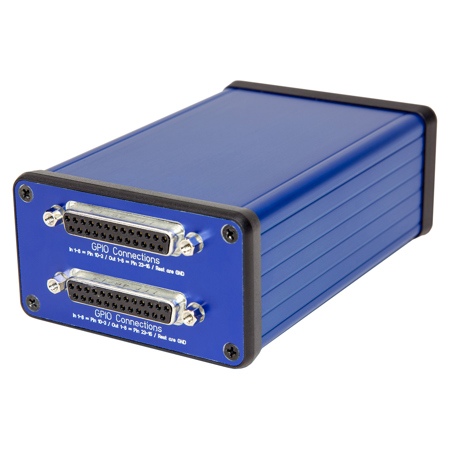

Skaarhoj ETH-GPI Link Dual Interface

With the ETH-GPI Link Dual Interface, experience unprecedented flexibility in setting up your I/O devices. This advanced interface allows you to seamlessly connect and control a wide range of devices, from tally lamps and ATEM switcher routines to HyperDecks and SmartScope Duos. It also enables efficient routing of inputs/outputs on a VideoHub.

The ETH-GPI Link Dual Interface is powered by the intuitive UniSketch OS, which facilitates rapid definition of parameters for inputs and outputs. Its user-friendly drop-down menu structure allows you to connect and control up to eight devices simultaneously.

This versatile interface features 8/16 inputs and 8/16 outputs, all electrically separated by high-quality relays and optocouplers. The GPO is implemented with relays shorting to GND, while the GPI is implemented with optical isolators shorted to GND.

The ETH-GPI Link Dual Interface is compatible with SKAARHOJ Controllers with GPI inputs, which accept open collector and relay outputs (pulled to GND). However, please note that the default HD15 tally connector on the TriCaster TC1 does not provide a direct working signal to the ETH-GPI Link. A conversion of the 5V potential to GND is required.

The interface comes with a DB25 Connector Configuration, 8 GPO, and 8 GPI. It supports PoE Ethernet with PoE (IEEE802.3af) and is compatible with NewTek TriCaster and Blackmagic ATEM.

Whether you're looking to get tally from a NewTek TriCaster switcher onto an ATEM switcher, or seeking to control cameras like Studio Camera, URSA Mini, and URSA Broadcast, the ETH-GPI Link Dual Interface can help. It can also facilitate routing control for Panasonic AW-RP50 & AW-RP120 via GPI, and Panasonic AW-RP120 & AW-RP150 via IP.

The ETH-GPI Link Dual Interface offers various ways to configure the GPI and GPO, and it supports a range of configurations for different devices and scenarios. From ATEM Connectivity and ATEM Tally follow TriCaster Tally to Joystick Override RCP touchdown via hold groups, this interface provides a comprehensive solution for your I/O device setup needs.
