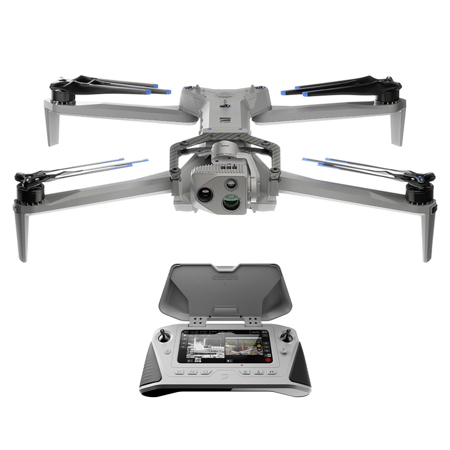

Skydio X10 Drone Starter Kit with Visible Light Navigation Camera and VT300-Z Sensor Package

SKU: SKYD4ESKT1VZ MFR: DR4ESKT1VZG0000NA

Key Features

  • Capture stunning 4K video with the Skydio X10 drone's advanced camera system.
  • Enjoy extended flights with a maximum flight time of 40 minutes, ideal for inspections.
  • Ensure stable footage with the integrated 3-axis gimbal, perfect for smooth aerial shots.
  • Navigate confidently using GPS and advanced sensors for precise drone positioning.
  • The Skydio X10 offers enterprise-level performance with its robust and reliable design.
  • Benefit from IP55 weather resistance, allowing the drone to operate in challenging conditions.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Skydio X10 VT300 Specifications

General

General

Jump to...
  • Number of Rotors

    4

  • Configuration

    Drone with Camera

  • Edition

    with Visible Light Navigation Camera and VT300-Z Sensor

  • FAA Registration (Non-Commercial Usage)

    Required

  • Features

    IP Rated, Thermal Camera, Camera Included

  • Kit Style

    Base

  • Model

    Skydio X10

  • Skill Level

    Enterprise

Aircraft

Jump to...
  • Color

    Gray

  • Maximum Flight Time

    40 Minutes

  • Takeoff Weight

    5.49 lbs (2.49kg)

  • Max Ascent/Decent Speed

    Ascent: 6 m/s / 13.4mph
    Descent: 4 m/s / 9.0mph

  • Max Horizontal Speed

    Max Horizontal Speed (at sea level): 20 m/s / 45mph
    Max Horizontal Speed: 16 m/s / 36mph (with Obstacle Avoidance)

  • Max Hovering Time

    35 minutes

  • Max Tilt Angle

    40 degrees

  • Max Angular Velocity

    Yaw: 100 deg/s
    Roll / Pitch: 225 deg/s

  • Global Navigation Satellite System

    GPS + Galileo + GLONASS + BeiDou

  • Hovering Accuracy Range

    VIO: +/- 10cm
    GNSS: +/- 1m

  • Operating Temperature

    Drone: -4 Degree F to 113 Degree F (-20 Degree C to +45 Degree C)

  • IP Rating

    Drone: IP55
    Controller: IP54

  • Camera Still Resolution

    48 MP, 64 MP, 0.3 MP

  • Video Resolution

    4K

  • Image Sensor

    Telephoto Camera: Sony 1/2" 48MP CMOS

    Narrow Camera: Sony 1/1.7" 64MP CMOS

    Vision Systems / Navigation Cameras: Samsung 1/2.8" 32MP color CMOS

  • Lens

    Telephoto Camera:
    Diagonal Field of View- 13 Degree
    Focal Length- 35mm (190mm equivalent)
    Aperture- f/2.2
    Focus- hybrid PDAF, 5 m to Infinite

    Narrow Camera:
    Diagonal Field of View- 50 Degree
    Focal Length- 10mm (46mm equivalent)
    Aperture- f/1.8
    Focus- Hybrid PDAF, 1 m to Infinite

    Thermal Camera:
    Diagonal Field of View- 41 Degree
    Focal Length- 13.6mm (60mm equivalent)
    Aperture- f/1.0
    Focus- 5m to Infinite

    Vision Systems / Navigation Cameras:

  • ISO Range

    100 to 16000 (Telephoto Camera, Narrow Camera)

  • Shutter Speed

    1/30 to 1/8000 (Telephoto Camera, Narrow Camera)

  • Max Image Size

    Telephoto Camera: 8000 x 6000

    Narrow Camera: 9248 x 6944

    Thermal Camera: 640 x 512

  • Photo Format

    Thermal Camera: JPEG, RJPEG

  • Gimbal Option

    3-Axis Gimbal

  • Mechanical Range

    +/-140 Degree pitch, +/-90 Degree yaw, +75 Degree to -230 Degree roll

  • Controllable Range

    +/-90 Degree pitch

  • Angular Vibration Range

    +/-0.01°

Video Transmission

Jump to...
  • Operating Frequency

    Drone:
    Connect SL: 2400-2483.5MHz, 5150-5850Mhz

    Controller:
    Connect SL: 2400-2483.5MHz, 5150-5850MHz

    Skydio Connect:
    Connect SL: 2400-2483.5MHz, 5150-5850MHz

  • Transmitter Power (EIRP)

    Drone:
    Connect SL: 34.3dBmi (2.4GHz)
    Connect SL: 33.7dBmi (5GHz)

    Controller:
    Connect SL: 34.7dBmi (2.4GHz)
    Connect SL: 35.9dBmi (5GHz)

    Skydio Connect:
    Connect SL: 34.7dBmi (2.4GHz)
    Connect SL: 35.9dBmi (5GHz)

Battery

Jump to...
  • Capacity

    Controller: 9600mAh

    Flight Battery: 8419 mAh

  • Voltage

    18.55 V

  • Battery Material

    Lithium ion

  • Energy

    156.17 Wh

  • Battery Quantity

    3

Remote Controller

Jump to...
  • Remote Controller

    with Remote Controller

  • Max Operating Time

    Approx. 5 hours

  • Operating Temperature

    Controller: -4 Degree F to 113 Degree F (-20 Degree C to 45 Degree C)

Physical

Jump to...
  • Dimensions

    Drone:
    Unfolded, with propellers: 31.1 x 25.6 x 5.7" (78.99 x 65.02 x 14.47cm)
    Folded, without battery: 13.8 x 6.5 x 4.7" (35.05 x 16.51 x 11.93cm)

    Controller:
    10.5 x 5 x 3" (26.67 x 12.7 x 7.62cm)

    Dual Charger:
    7.08 x 2.95 x 1.88" (180 x 75 x 48mm)

  • Weight

    Drone:
    Connect SL with batteries: 4.65 lbs (2.11kg)

    Controller:
    2.5 lbs (1.135kg)

    Dual Charger:
    Without Battery: 11.68 oz (331.12g)

10 Accessories for Skydio X10 Drone Starter Kit with Visible Light Navigation Camera and VT300-Z Sensor Package

  • All Accessories (10)
  • Controllers (1)
  • Batteries & Power Supply (2)
  • Parachute Attachment (1)
  • GPS Devices (1)
  • Propellers & Guards (1)
  • Bags & Cases (3)
  • Flash & Lighting (1)

About Skydio X10 VT300

A cutting-edge blend of technology and innovation, the X10 Drone Starter Kit with Visible Light Navigation Camera and VT300-Z Sensor Package is a game-changer in the realm of aerial photography and videography. This high-tech drone kit is equipped with a 4K gimbal camera, a built-in camera, and a thermal camera, offering a suite of advanced features that set it apart from its competitors.

Designed for enterprise-level use, the X10 Drone is not only sophisticated but also durable and reliable. It boasts a 3-axis gimbal and an impressive flight time of up to 40 minutes, outperforming many other drones in its class.

The X10 Drone's onboard AI, powered by an NVIDIA Jetson Orin GPU, enables it to recognize its surroundings, capture data automatically, and improve over time. Its six custom-designed navigation lenses provide 360-degree visibility, eliminating blind spots and allowing fearless flight in any environment.

The drone's superior AI flight assistance and obstacle avoidance capabilities make it easy to navigate complex missions confidently, even in GPS-denied or high EMI environments. Its new Spatial AI Engine allows for targeted inspections to be completed automatically, and data can be efficiently built into 2D maps and 3D models onboard, in real time.

The X10 Drone is also the first drone ever to integrate a FLIR Boson+ sensor, delivering the highest quality thermal imaging. This, combined with its custom wide aperture lenses, ensures outstanding image quality even in low light conditions.

The VT300-Z Sensor Package that accompanies the X10 Drone carries both a 64MP narrow and 48MP telephoto visual module for maximum zoom distance, along with a FLIR Boson+ radiometric module. This makes it an excellent choice for law enforcement and inspections requiring large standoff distances.

The X10 Drone is designed to adapt to changing mission requirements with its modular sensor packages and four attachment areas. It can mount a parachute, microphone, spotlight, and more, for a max payload of 12 oz.

Weighing under 4.7 pounds with a 13.8-inch length, the X10 Drone is compact and portable, yet it doesn't compromise on performance. Its efficient motors and folding 3-blade design allow for top speeds of up to 45 mph in stable air, while its lightweight and durable magnesium and carbon fiber frame ensures it can withstand harsh environments.

In summary, the X10 Drone Starter Kit with Visible Light Navigation Camera and VT300-Z Sensor Package is a state-of-the-art solution for those seeking advanced, reliable, and versatile aerial photography and videography equipment.

Skydio X10 VT300 Features

  • 45mph Max flight speed
  • 40min Max flight time
  • <40 sec Deployment time
  • IP55 Certified against dust and water

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Product Documents

User Manual

Key Features

  • Capture stunning 4K video with the Skydio X10 drone's advanced camera system.
  • Enjoy extended flights with a maximum flight time of 40 minutes, ideal for inspections.
  • Ensure stable footage with the integrated 3-axis gimbal, perfect for smooth aerial shots.
  • Navigate confidently using GPS and advanced sensors for precise drone positioning.
  • The Skydio X10 offers enterprise-level performance with its robust and reliable design.
  • Benefit from IP55 weather resistance, allowing the drone to operate in challenging conditions.

What's in the box:

  • Skydio X10 Drone with Visible Light Navigation Camera
  • VT300-Z Sensor Package
  • Gimbal Protector
  • Controller
  • 100W Adapter
  • 230W Adapter
  • USB-C to USB-C Cable
  • Additional Propellers Set (2x Clock Wise/2x Counter Clock Wise)
  • 2x 256GB microSD Cards (Pre-Installed)
  • 3x Batteries (One Attached To Drone)
  • Dual Charger
  • Microfiber Cloth
  • Pro Case
  • Skydio 1 Year Limited Warranty
