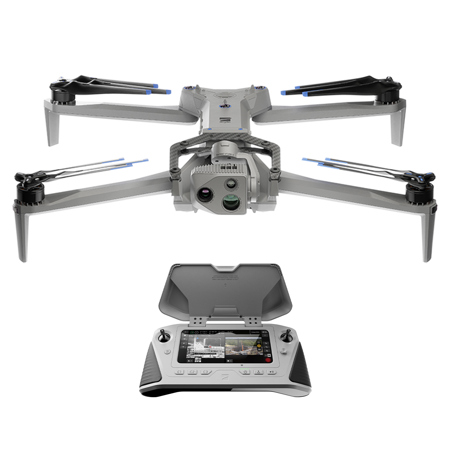

Skydio X10 Drone Starter Kit with Cellular 5G, Visible Light Navigation Camera and VT300-Z Sensor Package

SKU: SKYD4ESKT2VZ MFR: DR4ESKT2VZG0000NA

Key Features

  • Capture stunning 4K video with the Skydio X10 drone's advanced camera system for pro-quality footage.
  • Enjoy extended flights with a 40-minute maximum flight time, perfect for comprehensive aerial surveys.
  • The Skydio X10's superior flight stability ensures smooth footage, even in challenging weather conditions.
  • Navigate with confidence using the drone's GPS, Galileo, GLONASS, and BeiDou global navigation systems.
  • Benefit from the included thermal camera, ideal for inspections, search & rescue, and agricultural analysis.
  • The Skydio X10 drone is IP55 rated, offering enhanced durability for reliable operation in harsh environments.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Skydio X10 VT300 Specifications

General

General

Jump to...
  • Number of Rotors

    4

  • Configuration

    Drone with Camera

  • Edition

    with Cellular 5G, Visible Light Navigation Camera and VT300-Z Sensor

  • FAA Registration (Non-Commercial Usage)

    Required

  • Features

    IP Rated, Thermal Camera, Camera Included

  • Kit Style

    Base

  • Model

    Skydio X10

  • Skill Level

    Enterprise

Aircraft

Jump to...
  • Color

    Gray

  • Maximum Flight Time

    40 Minutes

  • Takeoff Weight

    5.49 lbs (2.49kg)

  • Max Ascent/Decent Speed

    Ascent: 6 m/s / 13.4mph
    Descent: 4 m/s / 9.0mph

  • Max Horizontal Speed

    Max Horizontal Speed (at sea level): 20 m/s / 45mph
    Max Horizontal Speed: 16 m/s / 36mph (with Obstacle Avoidance)

  • Max Hovering Time

    35 minutes

  • Max Tilt Angle

    40 degrees

  • Max Angular Velocity

    Yaw: 100 deg/s
    Roll / Pitch: 225 deg/s

  • Global Navigation Satellite System

    GPS + Galileo + GLONASS + BeiDou

  • Hovering Accuracy Range

    VIO: +/- 10cm
    GNSS: +/- 1m

  • Operating Temperature

    Drone: -4 Degree F to 113 Degree F (-20 Degree C to +45 Degree C)

  • IP Rating

    Drone: IP55
    Controller: IP54

  • Camera Still Resolution

    48 MP, 64 MP, 0.3 MP

  • Video Resolution

    4K

  • Image Sensor

    Telephoto Camera: Sony 1/2" 48MP CMOS

    Narrow Camera: Sony 1/1.7" 64MP CMOS

    Vision Systems / Navigation Cameras: Samsung 1/2.8" 32MP color CMOS

  • Lens

    Telephoto Camera:
    Diagonal Field of View- 13 Degree
    Focal Length- 35mm (190mm equivalent)
    Aperture- f/2.2
    Focus- hybrid PDAF, 5 m to Infinite

    Narrow Camera:
    Diagonal Field of View- 50 Degree
    Focal Length- 10mm (46mm equivalent)
    Aperture- f/1.8
    Focus- Hybrid PDAF, 1 m to Infinite

    Thermal Camera:
    Diagonal Field of View- 41 Degree
    Focal Length- 13.6mm (60mm equivalent)
    Aperture- f/1.0
    Focus- 5m to Infinite

    Vision Systems / Navigation Cameras:

  • ISO Range

    100 to 16000 (Telephoto Camera, Narrow Camera)

  • Shutter Speed

    1/30 to 1/8000 (Telephoto Camera, Narrow Camera)

  • Max Image Size

    Telephoto Camera: 8000 x 6000

    Narrow Camera: 9248 x 6944

    Thermal Camera: 640 x 512

  • Photo Format

    Thermal Camera: JPEG, RJPEG

  • Gimbal Option

    3-Axis Gimbal

  • Mechanical Range

    +/-140 Degree pitch, +/-90 Degree yaw, +75 Degree to -230 Degree roll

  • Controllable Range

    +/-90 Degree pitch

  • Angular Vibration Range

    +/-0.01°

Video Transmission

Jump to...
  • Operating Frequency

    Drone:
    Connect SL: 2400-2483.5MHz, 5150-5850Mhz
    Cellular 5G: 600MHz-4400MHz

    Controller:
    Connect SL: 2400-2483.5MHz, 5150-5850MHz
    Connect 5G: 600MHz-4400MHz

    Skydio Connect:
    Connect SL: 2400-2483.5MHz, 5150-5850MHz
    Connect 5G: 600MHz-4400MHz

  • Transmitter Power (EIRP)

    Drone:
    Connect SL: 34.3dBmi (2.4GHz)
    Connect SL: 33.7dBmi (5GHz)
    Connect 5G: 20dBmi

    Controller:
    Connect SL: 34.7dBmi (2.4GHz)
    Connect SL: 35.9dBmi (5GHz)
    Connect 5G: 20dBmi

    Skydio Connect:
    Connect SL: 34.7dBmi (2.4GHz)
    Connect SL: 35.9dBmi (5GHz)
    Connect 5G: 20dBmi

Battery

Jump to...
  • Capacity

    Controller: 9600mAh

    Flight Battery: 8419 mAh

  • Voltage

    18.55 V

  • Battery Material

    Lithium ion

  • Energy

    156.17 Wh

  • Battery Quantity

    3

Remote Controller

Jump to...
  • Remote Controller

    with Remote Controller

  • Max Operating Time

    Approx. 5 hours

  • Operating Temperature

    Controller: -4 Degree F to 113 Degree F (-20 Degree C to 45 Degree C)

Physical

Jump to...
  • Dimensions

    Drone:
    Unfolded, with propellers: 31.1 x 25.6 x 5.7" (78.99 x 65.02 x 14.47cm)
    Folded, without battery: 13.8 x 6.5 x 4.7" (35.05 x 16.51 x 11.93cm)

    Controller:
    10.5 x 5 x 3" (26.67 x 12.7 x 7.62cm)

    Dual Charger:
    7.08 x 2.95 x 1.88" (180 x 75 x 48mm)

  • Weight

    Drone:
    Connect SL with batteries: 4.65 lbs (2.11kg)
    Connect SL + 5G with batteries: 4.72 lbs (2.14kg)

    Controller:
    2.5 lbs (1.135kg)

    Dual Charger:
    Without Battery: 11.68 oz (331.12g)

10 Accessories for Skydio X10 Drone Starter Kit with Cellular 5G, Visible Light Navigation Camera and VT300-Z Sensor Package

  • All Accessories (10)
  • Controllers (1)
  • Batteries & Power Supply (2)
  • Parachute Attachment (1)
  • GPS Devices (1)
  • Propellers & Guards (1)
  • Bags & Cases (3)
  • Flash & Lighting (1)

About Skydio X10 VT300

Take your aerial capabilities to new heights with the X10 Drone Starter Kit, a marvel of modern drone technology designed for the discerning professional. This advanced quadcopter is not just a drone; it's a high-tech tool that revolutionizes aerial photography and videography with its sophisticated features and state-of-the-art design.

The X10 Drone is equipped with Cellular 5G connectivity, ensuring rapid data transmission and real-time communication, even in remote locations. Its Visible Light Navigation Camera, coupled with the VT300-Z Sensor Package, offers unparalleled imaging capabilities. The drone's 4K gimbal camera, integrated with a built-in camera and a thermal camera, captures crisp, high-resolution footage and images, while the 3-axis gimbal ensures stable and smooth video capture.

With enterprise-level capabilities, the X10 Drone is built for demanding tasks and professional use. It boasts an impressive flight time of up to 40 minutes and can handle heavier payloads, setting it apart from competitors in its class. The drone's modular sensor packages, including high-resolution visual and radiometric cameras, allow you to capture the exact details needed for your job.

The X10 Drone is the first of its kind to integrate a FLIR Boson+ sensor, delivering the highest quality thermal imaging available, with resolutions of 640 x 512 px and increased sensitivity. Custom-engineered lenses provide unrivaled resolution and superior focus, ensuring that every image is pixel-perfect.

The onboard AI, powered by an NVIDIA Jetson Orin GPU, offers off-the-charts capability, enabling the drone to recognize its surroundings, capture data automatically, and learn over time. With six custom-designed navigation lenses, the X10 Drone provides 360-degree visibility, eliminating blind spots for fearless flying in any environment.

Navigate complex missions with ease, thanks to superior AI flight assistance and obstacle avoidance. The X10 Drone automates targeted inspections with its new Spatial AI Engine and efficiently builds 2D maps and 3D models onboard in real-time. Data can also be exported to industry-standard software like Pix4D, Bentley iTwin Capture, DroneDeploy, or ESRI SiteScan.

Experience autonomy in the dark with the groundbreaking NightSense mode, enabling zero-light navigation. The X10 Drone uses visible or infrared illumination to avoid obstacles and make informed decisions, ensuring safe operation around the clock.

Ultimate control becomes second nature with the Skydio X10 Controller and Flight Deck. Customize your flying experience with the Skydio Flight Deck app's pro-grade interface, designed for quick and efficient operation during critical missions. With IP54 weatherproofing, the rugged hardware is built to withstand harsh conditions.

The X10 Drone's open modular platform allows for swift adaptation to changing mission requirements. Attach a spotlight, microphone, parachute, or RTK GPS to customize the drone for your specific needs. Its compact size and quiet propulsion system make it ideal for one-person operation, while the lightweight materials ensure durability in any environment.

The VT300-Z Sensor Package elevates the X10 Drone's capabilities even further. With a 64MP narrow and 48MP telephoto visual module, it provides maximum zoom distance, and the FLIR Boson+ radiometric module offers 40% more sensitivity than its predecessor, enabling precise radiometric measurements and greater detail visibility.

Designed for anything, anytime, anywhere, the X10 Drone Starter Kit with Cellular 5G, Visible Light Navigation Camera, and VT300-Z Sensor Package is the ultimate choice for professionals seeking advanced, high-tech drone solutions.

Skydio X10 VT300 Features

  • 45mph Max flight speed
  • 40min Max flight time
  • <40 sec Deployment time
  • IP55 Certified against dust and water

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Product Documents

User Manual

Key Features

  • Capture stunning 4K video with the Skydio X10 drone's advanced camera system for pro-quality footage.
  • Enjoy extended flights with a 40-minute maximum flight time, perfect for comprehensive aerial surveys.
  • The Skydio X10's superior flight stability ensures smooth footage, even in challenging weather conditions.
  • Navigate with confidence using the drone's GPS, Galileo, GLONASS, and BeiDou global navigation systems.
  • Benefit from the included thermal camera, ideal for inspections, search & rescue, and agricultural analysis.
  • The Skydio X10 drone is IP55 rated, offering enhanced durability for reliable operation in harsh environments.

What's in the box:

  • Skydio X10 Drone with Cellular 5G and Visible Light Navigation Camera
  • VT300-Z Sensor Package
  • Gimbal Protector
  • Controller
  • 100W Adapter
  • 230W Adapter
  • USB-C to USB-C Cable
  • Additional Propellers Set (2x Clock Wise/2x Counter Clock Wise)
  • 2x 256GB microSD Cards (Pre-Installed)
  • 3x Batteries (One Attached To Drone)
  • Dual Charger
  • Microfiber Cloth
  • Pro Case
  • Skydio 1 Year Limited Warranty
