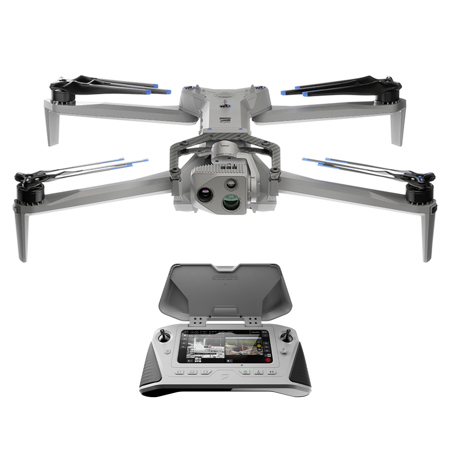

Skydio X10 Drone with Visible Light Navigation Camera and VT300-Z Sensor Package

SKU: SKYD4EVH1VZ MFR: DR4EVHG1VZG0000NA

Key Features

  • Capture stunning 4K video with the Skydio X10 drone's advanced camera system.
  • Enjoy extended flights with a maximum flight time of up to 40 minutes for your aerial needs.
  • Navigate complex environments easily with superior obstacle avoidance technology.
  • The Skydio X10's GPS ensures stable hovering and precise positioning for optimal shots.
  • Use the thermal camera for inspections, search & rescue, and detailed heat mapping tasks.
  • Capture crisp, clear images with up to 64MP resolution for professional-quality results.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Skydio X10 VT300 Specifications

General

General

Jump to...
  • Number of Rotors

    4

  • Configuration

    Drone with Camera

  • Edition

    with Visible Light Navigation Camera and VT300-Z Sensor

  • FAA Registration (Non-Commercial Usage)

    Required

  • Features

    IP Rated, Thermal Camera, Camera Included

  • Kit Style

    Base

  • Model

    Skydio X10

  • Skill Level

    Enterprise

Aircraft

Jump to...
  • Color

    Gray

  • Maximum Flight Time

    40 Minutes

  • Takeoff Weight

    5.49 lbs (2.49kg)

  • Max Ascent/Decent Speed

    Ascent: 6 m/s / 13.4mph
    Descent: 4 m/s / 9.0mph

  • Max Horizontal Speed

    Max Horizontal Speed (at sea level): 20 m/s / 45mph
    Max Horizontal Speed: 16 m/s / 36mph (with Obstacle Avoidance)

  • Max Hovering Time

    35 minutes

  • Max Tilt Angle

    40 degrees

  • Max Angular Velocity

    Yaw: 100 deg/s
    Roll / Pitch: 225 deg/s

  • Global Navigation Satellite System

    GPS + Galileo + GLONASS + BeiDou

  • Hovering Accuracy Range

    VIO: +/- 10cm
    GNSS: +/- 1m

  • Operating Temperature

    Drone: -4 Degree F to 113 Degree F (-20 Degree C to +45 Degree C)

  • IP Rating

    Drone: IP55

  • Camera Still Resolution

    48 MP, 64 MP, 0.3 MP

  • Video Resolution

    4K

  • Image Sensor

    Telephoto Camera: Sony 1/2" 48MP CMOS

    Narrow Camera: Sony 1/1.7" 64MP CMOS

    Vision Systems / Navigation Cameras: Samsung 1/2.8" 32MP color CMOS

  • Lens

    Telephoto Camera:
    Diagonal Field of View- 13 Degree
    Focal Length- 35mm (190mm equivalent)
    Aperture- f/2.2
    Focus- hybrid PDAF, 5 m to Infinite

    Narrow Camera:
    Diagonal Field of View- 50 Degree
    Focal Length- 10mm (46mm equivalent)
    Aperture- f/1.8
    Focus- Hybrid PDAF, 1 m to Infinite

    Thermal Camera:
    Diagonal Field of View- 41 Degree
    Focal Length- 13.6mm (60mm equivalent)
    Aperture- f/1.0
    Focus- 5m to Infinite

    Vision Systems / Navigation Cameras:

  • ISO Range

    100 to 16000 (Telephoto Camera, Narrow Camera)

  • Shutter Speed

    1/30 to 1/8000 (Telephoto Camera, Narrow Camera)

  • Max Image Size

    Telephoto Camera: 8000 x 6000

    Narrow Camera: 9248 x 6944

    Thermal Camera: 640 x 512

  • Photo Format

    Thermal Camera: JPEG, RJPEG

  • Gimbal Option

    3-Axis Gimbal

  • Mechanical Range

    +/-140 Degree pitch, +/-90 Degree yaw, +75 Degree to -230 Degree roll

  • Controllable Range

    +/-90 Degree pitch

  • Angular Vibration Range

    +/-0.01°

Video Transmission

Jump to...
  • Operating Frequency

    Drone:
    Connect SL: 2400-2483.5MHz, 5150-5850Mhz

    Skydio Connect:
    Connect SL: 2400-2483.5MHz, 5150-5850MHz

  • Transmitter Power (EIRP)

    Drone:
    Connect SL: 34.3dBmi (2.4GHz)
    Connect SL: 33.7dBmi (5GHz)

    Skydio Connect:
    Connect SL: 34.7dBmi (2.4GHz)
    Connect SL: 35.9dBmi (5GHz)

Battery

Jump to...
  • Capacity

    Flight Battery: 8419 mAh

  • Voltage

    18.55 V

  • Battery Material

    Lithium ion

  • Energy

    156.17 Wh

  • Battery Quantity

    1

Remote Controller

Jump to...
  • Remote Controller

    with Remote Controller

  • Max Operating Time

    Approx. 5 hours

  • Operating Temperature

    Controller: -4 Degree F to 113 Degree F (-20 Degree C to 45 Degree C)

Physical

Jump to...
  • Dimensions

    Drone:
    Unfolded, with propellers: 31.1 x 25.6 x 5.7" (78.99 x 65.02 x 14.47cm)
    Folded, without battery: 13.8 x 6.5 x 4.7" (35.05 x 16.51 x 11.93cm)

  • Weight

    Drone:
    Connect SL with batteries: 4.65 lbs (2.11kg)

10 Accessories for Skydio X10 Drone with Visible Light Navigation Camera and VT300-Z Sensor Package

  • All Accessories (10)
  • Controllers (1)
  • Batteries & Power Supply (2)
  • Parachute Attachment (1)
  • GPS Devices (1)
  • Propellers & Guards (1)
  • Bags & Cases (3)
  • Flash & Lighting (1)
Models
Skydio X10 Drone with Visible Light Navigation Camera and VT300-Z Sensor Package

Ships from Manufacturer

Usually ships within 8-10 Weeks. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

Skydio X10 Drone Starter Kit w/Cellular 5G, Visible Light Camera, V100-L Sensor

Ships from Manufacturer

Usually ships within 8-10 Weeks. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

Skydio X10 Drone Starter Kit w/Battery, Cellular 5G, Visible Light Camera,V100-L

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

FeaturesCamera Included, IP Rated, Thermal CameraCamera Included, IP Rated, Thermal CameraCamera Included
Kit StyleBaseBaseBase
ConfigurationDrone with CameraDrone with CameraDrone with Camera
Video Resolution4K4K4K
Camera Still Resolution0.3 MP, 48 MP, 64 MP0.3 MP, 50 MP, 64 MP0.3 MP, 50 MP, 64 MP
Maximum Flight Time40 min.40 min.40 min.
FAA Registration (Non-Commercial Usage)RequiredRequiredRequired
Gimbal Option3-Axis Gimbal3-Axis Gimbal3-Axis Gimbal

About Skydio X10 VT300

Enhance your aerial photography and videography capabilities with the advanced X10 Drone, equipped with a Visible Light Navigation Camera and the VT300-Z Sensor Package. This high-tech drone is powered by the most sophisticated AI in the sky, designed to deliver the data you need, whenever and wherever you need it.

The X10 Drone boasts superior sensors, including a 4K gimbal camera, built-in camera, and thermal camera, all packed into a compact, lightweight frame. These innovative features, combined with the drone's 3-axis gimbal, ensure smooth and stable footage, even in challenging conditions.

This state-of-the-art drone is the first of its kind to integrate a FLIR Boson+ sensor, offering unrivaled thermal imaging capabilities. With resolutions of 640 x 512 px and increased sensitivity, the X10 Drone captures the sharpest details, making every decision more informed and precise.

The X10 Drone's custom-engineered lenses deliver unrivaled resolution and superior focus, ensuring pixel-perfect images every time. With the powerful Spectra 480 image signal processor, you can improve white balance, de-noise photos, extend HDR capabilities, and more.

Experience the power of onboard AI with the X10 Drone. Backed by an onboard NVIDIA Jetson Orin GPU, this drone harnesses unrivaled computing power to make real-time decisions. Its six custom-designed navigation lenses provide 360-degree visibility, eliminating blind spots and enabling fearless flight in any environment.

The X10 Drone is designed for complex missions, even in GPS-denied or high EMI environments. Its superior AI flight assistance and obstacle avoidance capabilities mean you no longer need a specialist to get the job done. With the new Spatial AI Engine, you can automate targeted inspections, build 2D maps and 3D models in real time, or export data to Pix4D, Bentley iTwin Capture, DroneDeploy, or ESRI SiteScan.

The X10 Drone is not just advanced; it's adaptable. With modular sensor packages and four attachment areas, it can swiftly adapt to changing mission requirements. Mount a parachute, microphone, spotlight, and more, for a max payload of 12 oz.

Designed for durability and reliability, the X10 Drone is built to withstand wind, rain, dust, and the unexpected. Its lightweight and durable magnesium and carbon fiber frame, coupled with an innovative graphite heat-spreading system, ensures it can deliver vital aerial intelligence in any environment.

The VT300-Z Sensor Package, included with the X10 Drone, carries both a 64MP narrow and 48MP telephoto visual module for maximum zoom distance, along with a FLIR Boson+ radiometric module. This makes it an excellent choice for law enforcement and inspections requiring large standoff distances.

In summary, the X10 Drone with Visible Light Navigation Camera and VT300-Z Sensor Package is a sophisticated, innovative solution for professionals seeking high-quality aerial footage. Its advanced features, durability, and adaptability make it a reliable choice for a variety of environments and applications.

Skydio X10 VT300 Features

  • 45mph Max flight speed
  • 40min Max flight time
  • <40 sec Deployment time
  • IP55 Certified against dust and water

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Product Documents

User Manual

Key Features

  • Capture stunning 4K video with the Skydio X10 drone's advanced camera system.
  • Enjoy extended flights with a maximum flight time of up to 40 minutes for your aerial needs.
  • Navigate complex environments easily with superior obstacle avoidance technology.
  • The Skydio X10's GPS ensures stable hovering and precise positioning for optimal shots.
  • Use the thermal camera for inspections, search & rescue, and detailed heat mapping tasks.
  • Capture crisp, clear images with up to 64MP resolution for professional-quality results.

What's in the box:

  • Skydio X10 Drone with Visible Light Navigation Camera
  • VT300-Z Sensor Package
  • Skydio 1 Year Limited Warranty
