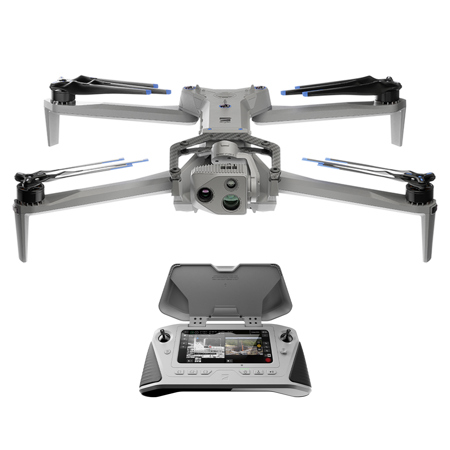

Skydio X10 Drone with Cellular 5G, Visible Light Navigation Camera and VT300-Z Sensor Package

SKU: SKYD4EVH2VZ MFR: DR4EVHG2VZG0000NA

Key Features

  • Capture stunning 4K video with the Skydio X10 drone's advanced camera system.
  • Enjoy extended flights with a maximum flight time of up to 40 minutes on a single charge.
  • Ensure stable footage using the integrated 3-Axis Gimbal, minimizing shakes and vibrations.
  • Navigate complex environments confidently with GPS, Galileo, GLONASS, and BeiDou support.
  • Use the Skydio X10 for detailed inspections with its high-resolution 48MP/64MP camera.
  • Benefit from enhanced connectivity with Cellular 5G for reliable, real-time data transmission.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Skydio X10 VT300 Specifications

General

General

Jump to...
  • Number of Rotors

    4

  • Configuration

    Drone with Camera

  • Edition

    with Cellular 5G, Visible Light Navigation Camera and VT300-Z Sensor

  • FAA Registration (Non-Commercial Usage)

    Required

  • Features

    IP Rated, Thermal Camera, Camera Included

  • Kit Style

    Base

  • Model

    Skydio X10

  • Skill Level

    Enterprise

Aircraft

Jump to...
  • Color

    Gray

  • Maximum Flight Time

    40 Minutes

  • Takeoff Weight

    5.49 lbs (2.49kg)

  • Max Ascent/Decent Speed

    Ascent: 6 m/s / 13.4mph
    Descent: 4 m/s / 9.0mph

  • Max Horizontal Speed

    Max Horizontal Speed (at sea level): 20 m/s / 45mph
    Max Horizontal Speed: 16 m/s / 36mph (with Obstacle Avoidance)

  • Max Hovering Time

    35 minutes

  • Max Tilt Angle

    40 degrees

  • Max Angular Velocity

    Yaw: 100 deg/s
    Roll / Pitch: 225 deg/s

  • Global Navigation Satellite System

    GPS + Galileo + GLONASS + BeiDou

  • Hovering Accuracy Range

    VIO: +/- 10cm
    GNSS: +/- 1m

  • Operating Temperature

    Drone: -4 Degree F to 113 Degree F (-20 Degree C to +45 Degree C)

  • IP Rating

    Drone: IP55

  • Camera Still Resolution

    48 MP, 64 MP, 0.3 MP

  • Video Resolution

    4K

  • Image Sensor

    Telephoto Camera: Sony 1/2" 48MP CMOS

    Narrow Camera: Sony 1/1.7" 64MP CMOS

    Vision Systems / Navigation Cameras: Samsung 1/2.8" 32MP color CMOS

  • Lens

    Telephoto Camera:
    Diagonal Field of View- 13 Degree
    Focal Length- 35mm (190mm equivalent)
    Aperture- f/2.2
    Focus- hybrid PDAF, 5 m to Infinite

    Narrow Camera:
    Diagonal Field of View- 50 Degree
    Focal Length- 10mm (46mm equivalent)
    Aperture- f/1.8
    Focus- Hybrid PDAF, 1 m to Infinite

    Thermal Camera:
    Diagonal Field of View- 41 Degree
    Focal Length- 13.6mm (60mm equivalent)
    Aperture- f/1.0
    Focus- 5m to Infinite

    Vision Systems / Navigation Cameras:

  • ISO Range

    100 to 16000 (Telephoto Camera, Narrow Camera)

  • Shutter Speed

    1/30 to 1/8000 (Telephoto Camera, Narrow Camera)

  • Max Image Size

    Telephoto Camera: 8000 x 6000

    Narrow Camera: 9248 x 6944

    Thermal Camera: 640 x 512

  • Photo Format

    Thermal Camera: JPEG, RJPEG

  • Gimbal Option

    3-Axis Gimbal

  • Mechanical Range

    +/-140 Degree pitch, +/-90 Degree yaw, +75 Degree to -230 Degree roll

  • Controllable Range

    +/-90 Degree pitch

  • Angular Vibration Range

    +/-0.01°

Video Transmission

Jump to...
  • Operating Frequency

    Drone:
    Connect SL: 2400-2483.5MHz, 5150-5850Mhz
    Cellular 5G: 600MHz-4400MHz

    Skydio Connect:
    Connect SL: 2400-2483.5MHz, 5150-5850MHz
    Connect 5G: 600MHz-4400MHz

  • Transmitter Power (EIRP)

    Drone:
    Connect SL: 34.3dBmi (2.4GHz)
    Connect SL: 33.7dBmi (5GHz)
    Connect 5G: 20dBmi

    Skydio Connect:
    Connect SL: 34.7dBmi (2.4GHz)
    Connect SL: 35.9dBmi (5GHz)
    Connect 5G: 20dBmi

Battery

Jump to...
  • Capacity

    Flight Battery: 8419 mAh

  • Voltage

    18.55 V

  • Battery Material

    Lithium ion

  • Energy

    156.17 Wh

  • Battery Quantity

    1

Remote Controller

Jump to...
  • Remote Controller

    with Remote Controller

  • Max Operating Time

    Approx. 5 hours

  • Operating Temperature

    Controller: -4 Degree F to 113 Degree F (-20 Degree C to 45 Degree C)

Physical

Jump to...
  • Dimensions

    Drone:
    Unfolded, with propellers: 31.1 x 25.6 x 5.7" (78.99 x 65.02 x 14.47cm)
    Folded, without battery: 13.8 x 6.5 x 4.7" (35.05 x 16.51 x 11.93cm)

  • Weight

    Drone:
    Connect SL with batteries: 4.65 lbs (2.11kg)
    Connect SL + 5G with batteries: 4.72 lbs (2.14kg)

10 Accessories for Skydio X10 Drone with Cellular 5G, Visible Light Navigation Camera and VT300-Z Sensor Package

  • All Accessories (10)
  • Controllers (1)
  • Batteries & Power Supply (2)
  • Parachute Attachment (1)
  • GPS Devices (1)
  • Propellers & Guards (1)
  • Bags & Cases (3)
  • Flash & Lighting (1)

About Skydio X10 VT300

While the X10 Drone with Cellular 5G, Visible Light Navigation Camera, and VT300-Z Sensor Package may appear compact, it's packed with advanced, high-tech features that make it a standout in the field of aerial photography and videography. This innovative drone is equipped with a 4K gimbal camera, built-in camera, and thermal camera, all designed to deliver high-quality footage and images. Its state-of-the-art 3-axis gimbal ensures smooth and stable footage, even in challenging wind conditions.

One of the key features of this sophisticated drone is its long flight time. Capable of flying for up to 40 minutes on a single charge, the X10 Drone outperforms many other drones in its class. This extended flight time allows users to capture more footage and images in a single flight, reducing the need for frequent battery changes or recharges.

The X10 Drone is not just about capturing stunning visuals; it's also about intelligent navigation. With its onboard AI, powered by an NVIDIA Jetson Orin GPU, the drone is capable of making real-time decisions, recognizing its surroundings, and capturing data automatically. It even gets smarter over time, thanks to its six custom-designed navigation lenses that provide 360-degree visibility, eliminating blind spots for fearless flying in any environment.

The drone's advanced features extend to its night-time capabilities as well. With its NightSense mode, the X10 Drone can operate 24/7, even in zero-light conditions. It uses visible or infrared illumination to avoid obstacles, understand its environment, and make the right decisions, every time.

The X10 Drone is also designed for ultimate control and ease of use. Whether you're flying by controller, browser, or handing off piloting to a remote operator, this drone makes it easy. And with Skydio Connect, you can fly up to 7.5 miles with a local connection, or extend your range wherever there's a cellular connection with Skydio Connect 5G.

The X10 Drone is more than just a drone; it's a versatile tool for aerial photography and videography. With its modular sensor packages and four attachment areas, it can be customized to meet changing mission requirements. Whether you need to mount a parachute, microphone, spotlight, or more, the X10 Drone is ready to adapt.

In conclusion, the X10 Drone with Cellular 5G, Visible Light Navigation Camera, and VT300-Z Sensor Package is a compact, yet powerful tool for capturing high-quality aerial footage and images. Its advanced features, long flight time, and intelligent navigation capabilities make it a top choice for professionals in the field of aerial photography and videography.

Skydio X10 VT300 Features

  • 45mph Max flight speed
  • 40min Max flight time
  • <40 sec Deployment time
  • IP55 Certified against dust and water

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Product Documents

User Manual

Key Features

  • Capture stunning 4K video with the Skydio X10 drone's advanced camera system.
  • Enjoy extended flights with a maximum flight time of up to 40 minutes on a single charge.
  • Ensure stable footage using the integrated 3-Axis Gimbal, minimizing shakes and vibrations.
  • Navigate complex environments confidently with GPS, Galileo, GLONASS, and BeiDou support.
  • Use the Skydio X10 for detailed inspections with its high-resolution 48MP/64MP camera.
  • Benefit from enhanced connectivity with Cellular 5G for reliable, real-time data transmission.

What's in the box:

  • Skydio X10 Drone with Cellular 5G and Visible Light Navigation Camera
  • VT300-Z Sensor Package
  • Skydio 1 Year Limited Warranty
