Skywatcher Wave 150i Pro Strainwave Mount Head with Carbon Fiber Tripod and Extension Tube

SKU: SKWS40015 MFR: S40015
Earn VIP Reward Points

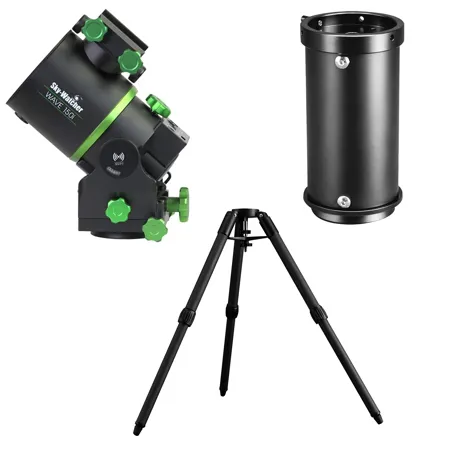

PACKAGE INCLUDES:

  • Sky-Watcher Wave 150i GoTo Strainwave Mount Head
    Sky-Watcher Wave 150i GoTo Strainwave Mount Head
  • +
  • Sky-Watcher Wave Carbon Fiber Tripod Extension Tube
    Sky-Watcher Wave Carbon Fiber Tripod Extension Tube
  • +
  • Sky-Watcher Wave 2-Section Carbon Fiber Tripod
    Sky-Watcher Wave 2-Section Carbon Fiber Tripod
  • +
  • Show more

Note: 1 or more items are unavailable for immediate shipping

Key Features

  • Experience superior stability with our carbon fiber tripod, perfect for clear, shake-free observations.
  • Enjoy effortless portability with this lightweight yet robust telescope tripod, ideal for stargazing on the go.
  • Achieve precise celestial tracking with the advanced strainwave mount, enhancing your astrophotography.
  • Customize your viewing height with the included extension tube, ensuring comfortable and versatile use.
  • Support heavy optical tubes confidently with a 44 lbs load capacity, designed for serious astronomers.
  • Benefit from quick setup and breakdown, making your stargazing sessions more enjoyable and efficient.
See More Product Details
Temporarily On Backorder?Expected Availability: 07/2026Request assistance or get notified
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Skywatcher Wave 150i Specifications

Wave 150i Mount General

Wave 150i Mount General

Jump to...
  • Mount type

    AZEQ

  • Mounting Thread Size

    38-16

  • Mounting Saddle type

    DV-style

  • Type of motor

    Stepper

  • Drive type

    Belt

  • RA Gear Ratio

    101 x 3

  • Dec gear ratio

    84 x 3.4

  • Clutch type

    Strain-Wave

  • Tracking Modes

    Sideral, Solar, Lunar

  • Maximum Slew Speed

    7.5 degreessecond

  • Latitude range

    0 Degree to 90 Degree

  • Operational Temperature

    14 Degree F - 131 Degree F (-10 Degree C - 50 Degree C)

  • Mount capacity

    Without Counterweight 33 lbs (14.96kg)brWith Counterweight 55 lbs (24.94kg)

Wave 150i Mount ComputerDrive System

Jump to...
  • GoTo

    Yes

  • Freedom Find

    No

  • Hand controller port

    Yes

  • Guide Port

    Yes

  • SNAP Port

    No

  • PC connect USB port

    Yes

  • Cable management

    Yes, 1x USB 2.0brUSBs hub powered NobrPower ports Two (2.5mm5amp DC Max)brAUX ports No

  • Built-in GPS

    No

  • Built-in Wi-Fi

    Yes

  • Hand controller

    No

  • GoTo Database

    42,000+

  • Power requirements

    DC12-16v, 2A

  • Internal Battery Pack

    No

  • Mount power port size and style

    2.1mm Center-Positive

Wave 150i Mount Physical

Jump to...
  • Color

    Black

  • Dimensions

    Mount Head 9.9 x 6.2 x 7.2 (252mm x158mm x 184mm)

  • Weight

    Mount Head 12.8 lbs (5.8kg)

Wave Carbon Fiber Tripod

Jump to...
  • Color

    Black

  • Section

    2

  • Pier or Leg Material

    Carbon Fiber

  • Height

    Minimum 19.7 (500.38mm)brMaximum 29 (736.6mm)

  • Load Capacity

    44 lbs (20kg)

  • Weight

    Tripod or Pier 5.3 lbs (2.4kg)

Wave CF Tripod Extension Tube

Jump to...
  • Color

    Black

  • Length

    7 (180mm)

  • Radius

    3.9 (100mm)

  • Weight

    2.4 lbs (1.1kg)

  • UPC Codes

    810098970990 | 810098970433 | 810098970457 | 810098970440

About Skywatcher Wave 150i

bHigh Torque High Precision High PortabilitybbrTaking advantage of the strain wave design with its high torque and compact construction, these mounts deliver high precision and power in an affordable and portable package. With exclusive features found on no other strain wave mounts, the Wave series is a serious update and upgrade to Sky-Watcher's already immensely popular family of astronomy mount platforms.brbrBoasting 22 and 33 pounds of payload capacity respectively (33 and 55 pounds with optional counterweight kits), the Wave 100i and 150i are incredibly compact and lightweight (9.5 and 12.8 pounds) and stow in durable carry cases with dense, machine-cut foam perfectly suited for travel. Sky-Watcher's Wave mounts also feature both EQ and AZ tracking modes with RA and Dec home positions, DV hybrid saddles, 0-90-degree latitude range, Wi-Fi and Bluetooth capability, RA power-off braking, 12V 2A power (not included), and a red backlit latitude display and bubble level to make your setup routine that much easier.brbrbCable ManagementbbrDesigned for the serious astro-imager, the Wave 150i mount features through-mount cabling and a powered hub built into the saddle with ports for autoguiding, Dec USB, and 2 Dec outputs. The RA hub sits at the back of the mount and never moves, keeping all your cabling neat, organized, and safe from snags.brbrbOTA BalancingbbrUnique to the strain wave mounts currently on the market, Sky-Watcher's larger Wave 150i also features the ability to balance the OTA on the RA and Dec axes adding to the overall stability, security, and performance of the system.brbrbFast SlewingbbrTrack satellites and space stations with the Wave's swift slew rate of 7.5 degrees per second and the downloadable Satellite Tracker Application for Windows PC found on Sky-Watcher's International Support website.brbrbStrainwave Drive TechnologybbrThe Wave mount was built around advanced strain wave drive technology which delivers exceptionally smooth and precise tracking without the need of bulky counterweights, tripods, and mount heads. This approach allows users to capture stunning images of celestial objects on a more streamlined platform without sacrificing performance.brbrbRobust Payload CapacitybbrWhether you're mounting a small wide field refractor, a stocky Mak-Cassegrain, a massive astrograph, or a long, glass-heavy triplet, the Wave's adaptive payload capacity and array of add-ons and accessories ensures compatibility with a wide range of optical tubes and tripods. This adaptability provides a stable platform for an entirely open ecosystem tailored by the user with an intuitive interface and a fit and finish that inspires confidence.brbrbSeamless ConnectivitybbrThe Wave mount easily integrates with Sky-Watcher's SynScan hand controller or SynScan app allowing users to control their telescopes by hand or wirelessly via smartphone or tablet, as well as through third-party control platforms (ASIAir, Eagle, Stellar Mate, etc.) enabling access to advanced features like plate solving and automated imaging runs.brbrbrb - Wave Carbon Fiber Tripod -bbrHigh-strength carbon fiber tripod for Wave mounts with 44-pound payload.brbrbrb - Wave Carbon Fiber Tripod Extension Tube -bbrExtension tube for Wave carbon fiber tripod.

Skywatcher Wave 150i Features

  • bWave 150i Pro Strainwave Mountb
  • Works seamlessly with ASI Air (USB-B cable included)
  • EQ and AZ modes
  • Built-in cable management
  • 33-pound (15kg) payload capacity without optional counterweight
  • 55-pound (25kg) payload capacity with optional counterweight
  • Single DV hybrid saddle
  • Latitude range from 0 Degree to 90 Degree
  • Red LED for latitude scale and bubble level
  • Wi-Fi and Bluetooth
  • RA power off braking function
  • RA and DEC home position functions
  • Requires 12V 2A power (not included)
  • bWave Carbon Fiber Tripodb
  • High-strength carbon fiber tripod for Wave mounts
  • 29 (747mm) maximum extended length
  • 19.7 (500mm) minimum retracted length
  • bWave Carbon Fiber Tripod Extension Tubeb
  • Extension tube for Wave carbon fiber tripod
  • 7 (180mm) length
  • 3.9 (100mm) radius

Key Features

  • Experience superior stability with our carbon fiber tripod, perfect for clear, shake-free observations.
  • Enjoy effortless portability with this lightweight yet robust telescope tripod, ideal for stargazing on the go.
  • Achieve precise celestial tracking with the advanced strainwave mount, enhancing your astrophotography.
  • Customize your viewing height with the included extension tube, ensuring comfortable and versatile use.
  • Support heavy optical tubes confidently with a 44 lbs load capacity, designed for serious astronomers.
  • Benefit from quick setup and breakdown, making your stargazing sessions more enjoyable and efficient.

What's in the box:

  • Sky-Watcher 2 Year Limited Warranty
