PACKAGE INCLUDES:

Note: 1 or more items are unavailable for immediate shipping
See Options
Need help? Ask our experts.
Review Summary
AZ/EQ
3/8"-16
D/V-style
Stepper
Belt
101 x 3
84 x 3.4
Strain-Wave
Sideral, Solar, Lunar
7.5 degrees/second
0 Degree to 90 Degree
14 Degree F - 131 Degree F (-10 Degree C - 50 Degree C)
Without Counterweight: 33 lbs (14.96kg)
With Counterweight: 55 lbs (24.94kg)
Yes
No
Yes
Yes
No
Yes
Yes, 1x USB 2.0
USBs hub powered: No
Power ports: Two (2.5mm/5amp DC Max)
AUX ports: No
No
Yes
No
42,000+
DC12-16v, 2A
No
2.1mm Center-Positive
Black
9.9" x 6.2 x 7.2" (252mm x158mm x 184mm)
12.8 lbs (5.8kg)
Silver
Steel
Sky-Watcher Wave Mount (Requires Separately Sold Pier) / NEQ6 / EQ6 / EQ6-R / AZ-EQ6
Maximum: 48" (121.9cm)
Minimum: 28" (71.1cm)
Black
Steel
Sky-Watcher EQ6 Tripod / Wave Mount
7 x 3.9" (177.8 x 99.1mm)
2.4 lbs (1.1kg)
810098971003 | 810098970433 | 810098970594 | 810098970600
High Torque High Precision High Portability
Taking advantage of the strain wave design with its high torque and compact construction, these mounts deliver high precision and power in an affordable and portable package. With exclusive features found on no other strain wave mounts, the Wave series is a serious update and upgrade to Sky-Watcher's already immensely popular family of astronomy mount platforms.
Boasting 22 and 33 pounds of payload capacity respectively (33 and 55 pounds with optional counterweight kits), the Wave 100i and 150i are incredibly compact and lightweight (9.5 and 12.8 pounds) and stow in durable carry cases with dense, machine-cut foam perfectly suited for travel. Sky-Watcher's Wave mounts also feature both EQ and AZ tracking modes with RA and Dec home positions, D/V hybrid saddles, 0-90-degree latitude range, Wi-Fi and Bluetooth capability, RA power-off braking, 12V 2A power (not included), and a red backlit latitude display and bubble level to make your setup routine that much easier.
Cable Management
Designed for the serious astro-imager, the Wave 150i mount features through-mount cabling and a powered hub built into the saddle with ports for autoguiding, Dec USB, and 2 Dec outputs. The RA hub sits at the back of the mount and never moves, keeping all your cabling neat, organized, and safe from snags.
OTA Balancing
Unique to the strain wave mounts currently on the market, Sky-Watcher's larger Wave 150i also features the ability to balance the OTA on the RA and Dec axes adding to the overall stability, security, and performance of the system.
Fast Slewing
Track satellites and space stations with the Wave's swift slew rate of 7.5 degrees per second and the downloadable Satellite Tracker Application for Windows PC found on Sky-Watcher's International Support website.
Strainwave Drive Technology
The Wave mount was built around advanced strain wave drive technology which delivers exceptionally smooth and precise tracking without the need of bulky counterweights, tripods, and mount heads. This approach allows users to capture stunning images of celestial objects on a more streamlined platform without sacrificing performance.
Robust Payload Capacity
Whether you're mounting a small wide field refractor, a stocky Mak-Cassegrain, a massive astrograph, or a long, glass-heavy triplet, the Wave's adaptive payload capacity and array of add-ons and accessories ensures compatibility with a wide range of optical tubes and tripods. This adaptability provides a stable platform for an entirely open ecosystem tailored by the user with an intuitive interface and a fit and finish that inspires confidence.
Seamless Connectivity
The Wave mount easily integrates with Sky-Watcher's SynScan hand controller or SynScan app allowing users to control their telescopes by hand or wirelessly via smartphone or tablet, as well as through third-party control platforms (ASIAir, Eagle, Stellar Mate, etc.) enabling access to advanced features like plate solving and automated imaging runs.

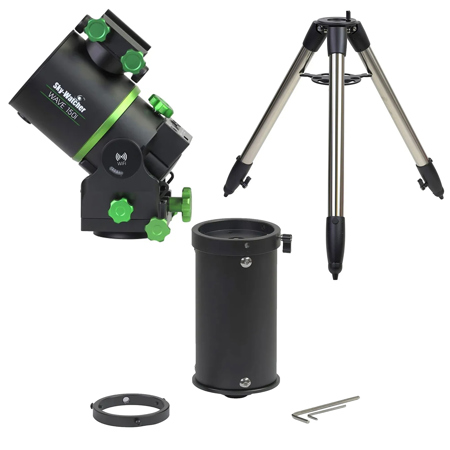

- EQ6 to Wave Steel Tripod -
2-inch steel leg heavy-duty EQ6 tripod for Wave mounts and Wave Pier Adapters with matching black trim for the most stable platform for Wave mounts loaded with larger optical tube assemblies. Also compatible with NEQ6, EQ6, EQ6-R, and AZ-EQ6 mounts.
