61 keys, TP/9S semi-weighted action
Balanced spring action
Dual-switch detection system
Aftertouch
Soft, medium, hard fixed (programmable) on MIDI output
35 pots
3 chicken head rotary switches (7 positions)
1 rotary encoder with push function
Master volume (with panic and anti-thump circuit)
Numeric keypad
Power
2x 16 digits backlit LCD
Pitch and modulation
999 user programs (+13 categories)
Fast sound selection via numeric keypad or encoder
Auto Dual Mode - Split/Layer - programmable Split for each program
Master tune - Transposer - Pitch/Bend range - Pedal functions (volume, mod wheel, cutoff) - Pot mode (snap/direct) - Display time - Pitch wheel, hold pedal assign
24 voices
Monophonic with single or multiple trigger
LFO1, LFO2 (phase synchronized), WHEEL (for Mod wheel and Aftertouch)
Adjustable LFOs speed and depth
LFO Shapes: Sawtooth, square, triangle, sine, sample & hold, ramp
Destinations: OSC1, OSC2, OSC3, PWM / Wave / FM, Volume, Filter Cutoff
Range: From 64 to 1' with semitone and detune
Shapes: Sawtooth, Square, Triangle, Sine, Pulse (with Pulse Width Modulation)
Oscillator 1 with 66 original PPG Wavetables and sample player (60MB internal memory)
FM (Tone generation): OSC2, OSC3 amount control - Oscillator hard sync (OSC2 to OSC3)
Volume and On/Off switch for each oscillator
Noise Generator: White/Pink - Volume control
Filter & Amplifier
Slope (24/12 dB): Low-pass, high-pass, band-pass
Resonance up to self-oscillation
Adjustable key track and drive
Filter Envelope: ADSR with amount control
Amplifier Envelope: ADSR with velocity control
Proportional velocity control on Filter and Amplifier sections
Latch mode
Syncable to MIDI Clock
Direction Up, Down, Alternate
Range up to 10 octaves
2 simultaneous effects:
Effect 1: Chorus / Phaser / Flanger
Effect 2: Reverb / Delay / Reverb+Delay
Frequency Modulation of sine and triangle
Oscillator Hardsync (Osc 2 to Osc 3)
Noise Generator with selectable white and pink noise
Mixer with Volume and On/Off switch for each Oscillator and Noise
2 fast envelopes per voice (filter / amplifier)
Auto Dual Mode: Split or Layer mode - programmable split point for each Program
In and out
MIDI Channel
Local On/Off
Clock control
Send/Receive controls
Expression pedal
Hold pedal
Line Out: 2x 1/4" / 6.35mm
Headphone: 1x stereo 1/4" / 6.35mm
USB connector for MIDI In/ Out, firmware update, samples loading (with Spectre)
Uses standard USB MIDI driver provided by host computer OS
Windows ME minimum, Windows XP or newer recommended
macOS 10.2 minimum, macOS 10.3 or newer recommended
Built-In: 110 to 240 VAC
38.2 x 16.0 x 4.5" (97.03 x 40.64 x 11.43cm)
20.5 lbs (9.30kg)
8034141640520


Surf the synthetic wave, sample your music

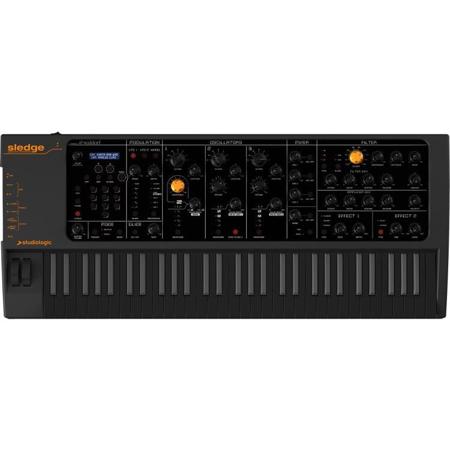

The exclusive dark look includes a black case, a semi-weighted keyboard with reverse black and Gray keys and an even more professional touch feeling. New modulation features and sounds, with a mix of pure synthesis and sampling, push Sledge further than ever before.
Sledge 2.0 introduces new features and sound innovations that set the instrument above any competitor, thanks to a mix of pure synthesis and sound sampling. In addition to the incredible sound engine and the user-friendly vintage style control panel, the new features further expand the synthesizer's power and versatility.
Auto Dual Mode, mix the sound
Combine and play two sounds at the same time, in Split or Layer mode. Every sound combination can be stored in any of the 999 available presets.
Hold the loop and pitch the sound
Pitch and Hold functions can be enabled separately for the Lower and Upper sounds in Dual Mode, allowing you to keep the sample loop running while playing the upper sound. Elevate your performance.
Let your samples play
Sound samples and new waves can be loaded in the internal memory, played by OSC 1 and modifiable by all parameters of the control panel, adding other oscillators, setting filters, envelopes and effects.
Spectre & Sound Mapper
Create and transfer Sample content, manage and reorganize the internal sound library of your Sledge. Load, save, copy, send, receive. Everything you want to do with your sound library, you can do that thanks to a user-friendly interface.
