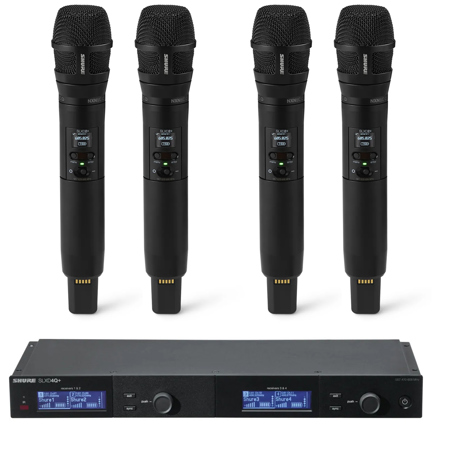

Shure SLXD4Q+ Quad-Channel Digital Wireless Receiver Kit with 4x SLXD2+/N8C Handheld Transmitters, G57: 470-608MHz

SKU: SLXD4QN8CQ MFR: SLXD4QN8CQ
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Shure SLXD4Q+ Quad-Channel Digital Wireless Receiver, G57: 470-608MHz
    Shure SLXD4Q+ Quad-Channel Digital Wireless Receiver, G57: 470-608MHz
  • +
  • Shure SLXD2+/N8C Digital Wireless HH Tx with Nexadyne 8/C Mic, G57: 470-608MHz
    Shure SLXD2+/N8C Digital Wireless HH Tx with Nexadyne 8/C Mic, G57: 470-608MHz

    Qty: 4

  • +
  • Show more

Note: 1 or more items are unavailable for immediate shipping

Key Features

  • Experience crystal-clear digital audio with the Shure SLXD4Q+ wireless receiver kit, perfect for professional venues.
  • Enjoy seamless multi-channel operation with four included SLXD2+/N8C handheld transmitters, ideal for conferences.
  • Benefit from true diversity reception and a 328' operating range, ensuring reliable performance for live events.
  • Quickly set up your system with auto-scan RF channel scanning, saving you valuable time before any performance.
  • Manage your wireless audio effortlessly using the mobile app compatibility for Android and iOS devices.
  • Achieve pristine sound quality with a wide 118 dB dynamic range and 20 Hz to 20 kHz frequency response.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Shure SLXD4Q+ Specifications

System
  • Wireless Technology

    Digital UHF

  • Diversity

    Yes, True Diversity

  • RF Frequency Band

    470 to 608 MHz

  • Number of RF Channel Frequencies

    5520

  • RF Channel Scanning

    Auto-Scan

  • Max Operating Range

    328' (100m)

  • Max Transmitters per Band

    Receiver: 32
    Transmitter: 14

  • Latency

    Receiver: 3.2 ms
    Transmitter: 2.8 ms

  • Built-In Recorder

    No

  • Timecode Support

    No

  • Encryption

    Transmitter: AES 256

  • Dynamic Range

    118 dB

  • Mobile App Compatible

    Yes: Android & iOS

SLXD4Q+ Receiver

Jump to...
  • Housing

    Metal

  • Receiver Type

    1x Tabletop / Rack-Mountable

  • Mounting Options

    Rackmount (with included Hardware, 1 RU)

  • Antenna

    2x Removable BNC 1/4 Wave (Rear-Mount)

  • Number of Audio Channels

    4

  • Audio I/O

    4x XLR 3-Pin Balanced Mic/Line Output
    4x 1/4" TRS Balanced Output

  • Network I/O

    2x RJ45

  • USB/Lightning Connectivity

    No

  • Gain Range

    18 to +42 dB (1 dB Steps)

  • Frequency Response

    20 Hz to 20 kHz +1/-2 dB (Dependent on Mic)

  • Display

    LCD (Non-Backlit)

  • Power Requirements

    AC/DC Power Adapter

  • AC/DC Power Adapter

    15 VDC at 0.9 A, Center-Positive (Included)

  • Input Power

    100 to 240 VAC, 50 / 60 Hz

  • Environmental Resistance

    No

  • Dimensions

    15.5 x 6 x 1.7" (39.37 x 15.24 x 4.31cm)

  • Weight

    3.9 lbs (1.76kg)

SLXD2+/N8C Handheld Transmitter

Jump to...
  • Housing

    Aluminum

  • Included Transmitters

    4x Handheld

  • RF Output Power

    1 / 10 mW

  • Antenna

    Fixed Single-Band Helical

  • Input Level

    Microphone

  • Audio I/O

    No

  • USB I/O

    No

  • Muting

    Off/On Switch

  • Auto-Level/Gain

    No

  • Sync Method

    IR

  • Display

    Backlit LCD

  • Microphone Type

    Handheld with Interchangeable Capsule

  • Polar Pattern

    Cardioid

  • Frequency Response

    50 Hz to 20 kHz

  • Sensitivity

    -54 dBV/Pa

  • Transmitter Battery Life

    8 Hours

  • Environmental Resistance

    No

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    8

  • Dimensions

    Transmitter: 1.46 x 6.93" (37.1 x 176mm)

  • weight

    Transmitter: 5.08 oz (144g)

  • UPC Codes

    42406869874, 042406920292

About Shure SLXD4Q+

- SLXD4Q+ Quad-Channel Digital Wireless Receiver -
If you're seeking a streamlined solution for SLX-D digital wireless performance, the Shure SLXD4Q+ Quad-Channel Digital Wireless Receiver in the G57 band (470-608MHz) is your ideal choice. This advanced receiver is designed to enhance speech presentations and vocal performances, making it perfect for environments ranging from lecture halls to live entertainment venues.

The SLXD4Q+ offers four channels of wireless versatility, delivering transparent 24-bit digital audio with exceptional RF performance. Its network-ready setup and rechargeability options make it a versatile addition to any wireless system configuration. With its industry-leading digital wireless technology, this full-rack quad configuration efficiently saves space and accessories, allowing for easy scalability to meet your channel requirements.

One of the standout features of the SLXD4Q+ is its 138MHz wide tuning range, which ensures that each SLX-D Quad Receiver can be used across the country without the hassle of managing narrow range receiver inventory. The space-saving design allows for expansion with minimal impact, fitting four channels into a single rack space.

For those with limited mixer channels, the audio summing feature allows you to set and combine audio levels for three, two, or even a single Quad Receiver audio output, perfectly matching your available inputs. Additionally, the RF cascade capability enables the creation of an 8-channel SLX-D receiver system by simply connecting two SLX-D Quad Receivers, with no need for extra accessories or cables.

The SLXD4Q+ Quad Receiver is equipped with standard compatibility, featuring 4 XLR and 4 1/4" outputs along with 2 local Ethernet connections, ensuring seamless integration into your existing setup. This receiver is the epitome of efficiency and performance, making it a must-have for any professional audio environment..


- SLXD2+/N8C Digital Wireless Handheld Transmitter with Nexadyne 8/C Microphone Capsule -
The SLXD2+/N8C Wireless Handheld Transmitter sends transparent, 24-bit digital audio to SLX-D+ wireless receivers via a rock-solid RF connection. Unlock a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike. With rugged metal construction, wide-tuning SLX-D+ handheld transmitters stay in sync with SLX-D+ receivers, courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.

With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including: Changing the transmitter frequency once open frequency is identified, Adjust transmitter gain, Lock and unlock transmitter controls, Transmitter firmware updates.

Nexadyne 8/C Cardioid Dynamic Vocal Microphone
• Acoustic signal processing of the dual engine design enables exceptional signal clarity, reducing the need for typical corrective EQ
• Industry-leading Shure reliability standards provides innovation with confidence
• Dent-resistant hardened grille
• Comes with protective zipper case, mic clip and brass stand adapter
• XLR connection with black finish

Shure SLXD4Q+ Features

  • SLXD4Q+ Quad-Channel Digital Wireless Receiver
  • Four channels in one rack space
  • Wide 138 MHz tuning range
  • 32 available channels per frequency band (region dependent)
  • Transparent 24-bit digital audio
  • 118 dB dynamic range
  • Audio Summing matches receiver output to available mixer channels (4,3,2 or 1)
  • 4x XLR and 4x 1/4" outputs and 2x local ethernet connections
  • RF Cascade creates an 8-channel system by linking two SLXD4Q+ together, no other accessories required
  • Bias Voltage power supply management
  • Digital predictive switching diversity
  • Easy pairing of transmitters and receivers over IR scan and sync
  • Rugged metal construction
  • SLXD2+/N8C Digital Wireless Handheld Transmitter
  • Transparent 24-bit digital audio quality with >118 dB dynamic range
  • Automatic Setup - once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
  • Rugged metal construction

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience crystal-clear digital audio with the Shure SLXD4Q+ wireless receiver kit, perfect for professional venues.
  • Enjoy seamless multi-channel operation with four included SLXD2+/N8C handheld transmitters, ideal for conferences.
  • Benefit from true diversity reception and a 328' operating range, ensuring reliable performance for live events.
  • Quickly set up your system with auto-scan RF channel scanning, saving you valuable time before any performance.
  • Manage your wireless audio effortlessly using the mobile app compatibility for Android and iOS devices.
  • Achieve pristine sound quality with a wide 118 dB dynamic range and 20 Hz to 20 kHz frequency response.

What's in the box:

  • 4x SLXD2+/N8C Digital Wireless Handheld Transmitter with Nexadyne 8/C Microphone Capsule
  • 8x AA Batteries
  • 4x Zippered Carrying Pouch
  • Shure 2 Year Limited Warranty
