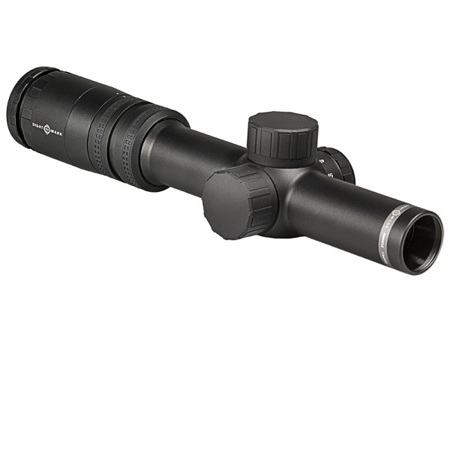

Sightmark 1-6x24 Pinnacle Riflescope, Matte Black with First Focal Plane Red/Green Illuminated TMD Tactical Mil-Dot Reticle, 30mm Tube Diameter

SKU: SM13028TMD

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sightmark SM13028TMD Specifications

  • Reticle Type

    TMD

  • Reticle Color

    Red and Green

  • Illuminated

    Yes

  • Reticle Brightness Settings

    0-5

  • Magnification

    1-6x

  • Objective Lens Diameter

    24mm

  • Eyepiece Diameter

    33mm

  • Exit Pupil Diameter

    24-4mm

  • Eye Relief

    103mm

  • Field of View

    29.7-5.2 (m@100m)
    90-15.9 (ft @100yd)

  • Diopter Adjustment

    +/-3.5

  • Tube Diameter

    30mm

  • Parallax Setting

    100yds

  • Windage Adjustment Range

    40 MRAD

  • Elevation Adjustment Range

    40 MOA

  • Windage & Elevation Lock

    Yes

  • MRAD Adjustment (one click)

    0.1

  • Maximum Recoil (G's)

    800G

  • Battery Life

    50-900 Hours

  • Battery Voltage

    3V

  • Sunshade

    No

  • Waterproof/Nitrogen-filled

    Yes

  • Shockproof

    Yes

  • Fog Proof

    Yes

  • Focal Plane

    First

  • IP Standard

    IP67

  • Body material

    High-Grade Aluminum

  • Lens material/type

    Glass

  • Lens Coatings

    Fully Multi-Coated

  • Battery Type

    CR2032

  • Storage/Operating Temperature

    -20 to 160 deg.F

  • Dimensions (L x W x H)

    260 x 73.5 x 56mm / 10.23 x 2.89 x 2.20cm

  • Weight

    20.4oz / 578.3g

About Sightmark SM13028TMD

Engineered with Sightmark's Triple Duty concept, the 1-6x24TMD features a Tactical Mil-Dot first-focal plane reticle for rangefinding and quick target acquisition in competition, tactical or hunting scenarios. Precision-machined with high definition optics and premium Japanese glass, the Pinnacle 1-6x24TMD offers crystal clear resolution from edge to edge, free from distortions at any magnification.

The red/green illuminated reticle remains in the same visual proportion to the target across the riflescope's entire magnification range, allowing shooters to rangefind and shoot with holdovers at any magnification effectively. Its true 1x provides both-eyes-open usage for increased situational awareness at close range, while the 6x optical system hones in on far-away targets with ease.

The device includes fully adjustable ballistic-tested BDC dials for both 5.56x45 55gr and 7.62x51 180gr loads. The riflescope boasts constant eye relief and a 6:1 zoom ratio for long-range shots, a wide field of view and 5 brightness settings for unmatched clarity in bright to lowlight conditions. Waterproof, fog proof and shock proof, it is fully submergible to 1m of water. Shooters have the luxury of a capped or exposed turret option as well as scratch-resistant lenses, helping to further protect the optic from impact.

Sightmark SM13028TMD Features

  • Premium, High-definition optics
  • Fully, multi-coated optics
  • Scratch resistant lenses
  • Constant Eye Relief
  • First focal plane reticle

Key Features

  • Premium, High-definition optics
  • Fully, multi-coated optics
  • Scratch resistant lenses
  • Constant Eye Relief
  • First focal plane reticle

What's in the box:

  • Sightmark 1-6x24 TMD Riflescope
  • 5.56x45 55gr BDC Dial
  • 7.62x51 180gr BDC Dial
  • 2xTurret Caps
  • 2xThread Protector
  • CR2032 Battery
  • Manual
  • Sightmark Lifetime Limited warranty
