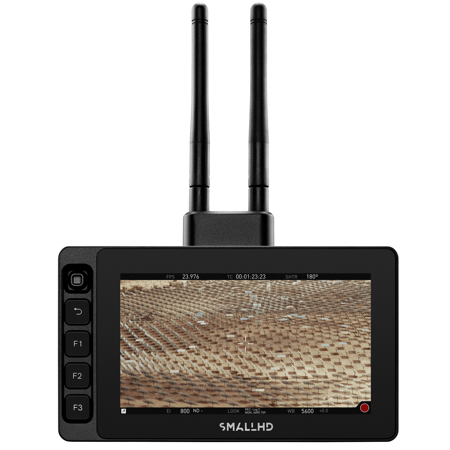

SmallHD Ultra 5 5" 16:9 Full HD Touchscreen On-Camera Monitor with Teradek Bolt 6 750 Transmitter Monitor Module

SKU: SM160529 MFR: 16-0529
Earn VIP Reward Points

Key Features

  • Experience superior clarity with the SmallHD Ultra 5's Full HD on-camera monitor.
  • Achieve wireless freedom with the Teradek Bolt 6 750 TX module, up to 750' range.
  • Enjoy a bright, clear view with the 5" touchscreen's impressive 3000nits brightness.
  • Utilize the customizable false color & waveform tools for precise exposure control.
  • Mount your monitor easily with multiple 1/4"-20 mounting points for versatile setup.
  • Streamline your workflow with HDMI & SDI inputs/outputs on this video monitor.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$399.99

3 Year

$599.99

4 Year

$699.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

SmallHD Ultra 5 Specifications

Ultra 5: Environmental

Ultra 5: Environmental

Jump to...
  • Mount Points

    6x 1/4"-20 Mounting Points

Ultra 5: Display

Jump to...
  • Panel Type

    Touch-Screen

  • Display Size

    5.0" (12.7cm)

  • Resolution

    1920 x 1080

  • Aspect Ratio

    16:9

  • Brightness

    3000nits

  • Backlight Type

    Edgelit

Ultra 5: Input Signal

Jump to...
  • 3G-SDI Input Types

    1x 3G-SDI

Ultra 5: Output Signal

Jump to...
  • HDMI Output Types

    1x HDMI 2.0 (4Kp30)

Ultra 5: Connector Type

Jump to...
  • SDI

    1x 3G-SDI (In)
    1x 3G-SDI (In/Out)

  • HDMI

    1x HDMI 2.0 (4Kp30) (In)
    1x HDMI 2.0 (4Kp30) (Out)

  • Audio

    1x 3.5mm Stereo Headphone Jack

Ultra 5: Data I/O

Jump to...
  • Connector Type

    1x RJ45 Ethernet

  • Storage Media

    1x SD Card Slot

  • USB

    1x Micro USB
    1x Locking USB

  • Input

    2-pin Locking Power Input (10-34V DC, 2.1A)

Ultra 5: Software

Jump to...
  • Pixel Zoom

    Yes

  • Focus Assist

    Yes

  • Peaking

    Yes

  • False Color

    Customizable False Color Overlays

  • Waveform

    Customizable 4K Waveform with Region of Interest Highlighting (Coming Soon)

  • Custom LUTS

    17pt 3D-LUT on Output/Input
    33pt 3D-LUT on Output/Input

Ultra 5: General

Jump to...
  • Material

    Aluminum Unibody Chassis

  • Compatibility

    Ultra Clear Screen Protector for Smart 5 Monitors
    Ultra Matte Screen Protector for Smart 5 Monitors

Ultra 5: Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Bolt 6 Tx: Video

Jump to...
  • Video Inputs

    1x HDMI 1.4b Type-A receptacle

  • SDI Ancillary Data Support

    Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit
    HDMI: RGB 4:4:4, 8-bit

  • Delay Tx To Rx

    <0.001sec

Bolt 6 Tx: Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30
    1080p23.98/24/25/29.97/30/50/59.94/601080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p50 576p59.94/60
    480i(NTSC)/576i(PAL)

Bolt 6 Tx: Video Processing

Jump to...
  • Video Compression

    Visually Lossless

  • Color Correction

    None

Bolt 6 Tx: Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

Bolt 6 Tx: Inputs

Jump to...
  • Audio Input

    Embedded HDMI Audio Input (2 Channel)

Bolt 6 Tx: Interfaces

Jump to...
  • Configuration Interfaces

    SmallHD Monitor UI

  • Mobile App

    Bolt App

  • Usb Interface Functionality

    SmallHD Monitor UI
    2x 5pin Locking Connector CCU (Host)

  • Bluetooth

    Via SmallHD Monitor

Bolt 6 Tx: Network

Jump to...
  • Antennas

    2x External 2dBi antennas (included)

  • Wireless

    Non-DFS Frequencies: 5.190 - 5.230GHz, 5.755 - 5.795GHz, 5.945 - 6.425GHz
    DFS Frequencies: 5.270 - 5.670GHz

  • Rf Channel Selection

    Auto, Manual

  • Encryption

    AES-256, RSA-1024 key exchange

  • Rf Power

    23 dbm EIRP

  • Range

    Up to 750' (228.6m), line of sight

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

  • Interoperability

    Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)

Bolt 6 Tx: Power

Jump to...
  • Power Input

    2-Pin Circular locking Connector 6-18 VDC

  • Battery

    None

  • Power Consumption

    7 Watts

Bolt 6 Tx: Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

Bolt 6 Tx: Physical

Jump to...
  • Material

    Milled Aluminum(Chassis) and regulation-compliant PCB

  • Mountability

    SmallHD 5" Monitor

  • Dimensions

    2.36 x 4.05 x 1.29" (60 x 103 x 33mm)

  • Weight

    7.3 oz (206g)

  • UPC Code

    811786033430

About SmallHD Ultra 5

Discover the SmallHD Ultra 5: The Pinnacle of On-Camera Monitoring

Experience precision, clarity, and seamless integration like never before. The SmallHD Ultra 5, combined with Teradek's Bolt 6 750 Transmitter Monitor Module, sets new benchmarks in on-camera monitoring.

- SmallHD Ultra 5 - Top-of-the-Line Display Dynamics -
At the heart of the SmallHD Ultra 5 is a scintillating 5" touchscreen monitor that boasts an impressive 1920 x 1080 resolution. With a dazzling 3000 nits brightness, be assured of immaculate visuals, whether you're indoors or out. Beyond its display, delve deeper into color precision with its 10-bit 4:2:2 Rec. 709 color processing. This ensures every frame, every shot, is in its purest form.

Wireless Command with Teradek Bolt 6 TX Module
Step up your production capabilities with the integrated Teradek Bolt 6 750 Monitor Module. This powerhouse module sits comfortably at the back, paving the way for wireless image transmission of up to 750'. Toggle between multiple Teradek receivers - be it the Bolt 6 series on the 6 GHz band or even the Bolt 4K series on the 5 GHz spectrum.

Defining Refined Design and Functionality
SmallHD's ULTRA 5 Bright Touchscreen Monitor isn't just a treat for the eyes. It's designed for utility. Whether you're navigating through the touchscreen or using the physical buttons, perhaps in more challenging terrains that require gloves, the monitor responds to your touch.

Connectivity and Control: Reinvented
Armed with HDMI and 3G-SDI inputs/outputs, the monitor goes beyond basic display functions. Command your camera with its integrated 5-pin USB and Ethernet ports, ensuring compatibility with optional controls for renowned camera brands like RED, ARRI, and Sony VENICE. Dive into PageOS 5, the beating heart of the monitor's interface, bringing a plethora of features with an intuitive design.

Features that Elevate

Daylight-optimized: 5" touchscreen, radiating at 3000 nits
10-bit 4:2:2 DCI-P3 color processing: For unparalleled color accuracy
HDMI and 3G-SDI integration: ensures robust connectivity
PageOS 5 toolset: Advanced tools like EL Zone Exposure Assist, Teradek RT overlays, and a slew of display tools
Ergonomic Design: With four 1/4"-20 mounting threads and a resilient aluminum chassis

Display Tools: A Deep Dive
From adjustable aspect ratios to customizable LUTs, the SmallHD Ultra 5 is replete with tools. Harness the power of pinch-zoom, anamorphic de-squeeze, dual zebra patterns, and a customizable histogram, to name a few. With a dedicated image capture button, audio meters accommodating up to eight channels, and an effortless LUT import system, you're always in control.


- Teradek Bolt 6 750 Transmitter Monitor Module -

Step into a world where 4K video transmission and cinema camera control blend seamlessly. With the Bolt 6 Monitor Module 750 TX from Teradek, transcend the barriers of distance, complexity, and quality.

4K Video at Your Command
Imagine sending out up to 4K30 HDR video from the heart of your cinema operations directly to any Bolt 4K receiver. That's the prowess this module promises. No wires, no tangles, and most importantly, no delay. Mounted to elite monitors like the SmallHD Cine 7, Indie 7, and the 702 Touch, this module becomes an integral part of your cinema production. And while the 5 GHz band caters to all Bolt 4K series receivers, the more robust 6 GHz band remains an exclusive treat for the Bolt 6 device users.

Seamless Camera Control
Synchronize your cinema with real-time camera control, right from your fingertips. By syncing with an optional Bolt 4K RX monitor module on a compatible monitor, you get instantaneous command over your camera. With zero delay, both the TX and RX module monitors grant you unprecedented control, locally and remotely.

Connectivity Redefined
Dive into the convenience of Bluetooth with the desktop Bolt Manager software or the dedicated Bolt app, available for both iOS and Android. From spectrum analysis and channel selection to configuration tweaks, these platforms empower you to manage your module like a pro.

Enhanced Video Display and Transmission
Featuring an HDMI block connection, the monitor can effortlessly ingest up to 4K30 video, giving you a pristine preview. Plus, the 10-bit 4:2:2 HDR support ensures every frame radiates with vibrancy. Broadcasting to six receivers simultaneously The Bolt 6 Monitor Module handles that with grace. And, with enhancements outclassing its Bolt 4K predecessors, expect better range, metadata, and compatibility.

Rock-Solid Security and Performance
Your video's security is paramount. With AES-256 encryption and RSA 1024 key pairing, unauthorized access becomes a tale of the past. And in a world swarming with wireless devices, this module's noise rejection feature ensures your video remains untainted.

Power and Compatibility
Tailored for adaptability, power the module with its 2-pin DC input or opt for a separate battery plate. Powered by PageOS 5-echoing the very software pulse of SmallHD monitors-it marries effortlessly with them. However, remember, for specific camera controls, an additional license needs a separate purchase.

SmallHD Ultra 5 Features

  • Daylight-viewable 5" touchscreen: Offers a 3000 cd/sq. m brightness ideal for all environments
  • Premium color accuracy: 10-bit 4:2:2 DCI-P3 color and touchscreen LCD panel
  • Versatile connectivity: Equipped with HDMI and 3G-SDI inputs/outputs
  • Convenient physical buttons: Ensures monitor's ease-of-use in challenging conditions
  • Advanced PageOS 5 toolset: Comes with EL Zone Exposure Assist, waveform, and more
  • Multiple mounting options: Four 1/4"-20 mounting threads positioned on various sides of the monitor
  • Extended camera controls: Options for RED via micro-USB and ARRI/Sony VENICE through the Ethernet port
  • Robust build: Constructed with a durable aluminum chassis
  • Flexible viewing adjustments: Features like anamorphic de-squeeze, image flip, and more
  • Comprehensive display tools: Includes histogram, vectorscope, and customizable waveform
  • 6 GHz wireless transmission: Transmit visually lossless video up to 4K30 HDR
  • Multifaceted camera control: Wireless control options and support for multiple camera brands
  • Enhanced security: AES-256 encryption and RSA 1024 key pairing safeguards video transmission
  • Compatibility: Works seamlessly with SmallHD monitors via PageOS 5

Key Features

  • Experience superior clarity with the SmallHD Ultra 5's Full HD on-camera monitor.
  • Achieve wireless freedom with the Teradek Bolt 6 750 TX module, up to 750' range.
  • Enjoy a bright, clear view with the 5" touchscreen's impressive 3000nits brightness.
  • Utilize the customizable false color & waveform tools for precise exposure control.
  • Mount your monitor easily with multiple 1/4"-20 mounting points for versatile setup.
  • Streamline your workflow with HDMI & SDI inputs/outputs on this video monitor.

What's in the box:

  • SmallHD Ultra 5 5" 16:9 Full HD Touchscreen On-Camera Monitor with Teradek Bolt 6 750 Transmitter Module
  • 2x Antenna
  • HDMI to HDMI Block Adapter
  • 1/4"-20 Light Stand Adapter
  • Hex Wrench Set
  • Screw Socket Head Set
  • 36" D-Tap to 2-Pin Power Cable
  • SmallHD 1 Year Limited Warranty
