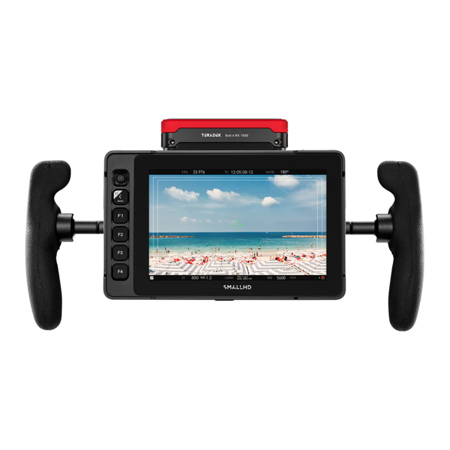

SmallHD Ultra 7 7" WUXGA Touchscreen On-Camera Monitor with Teradek Bolt 6 750 Receiver Monitor Module, V-Mount

SKU: SM160728VM MFR: 16-0728-VM
Earn VIP Reward Points

Key Features

  • Experience superior clarity with the SmallHD Ultra 7's WUXGA touchscreen display.
  • Enjoy wireless video with the integrated Teradek Bolt 6 750 receiver module.
  • Achieve accurate colors with 95% DCI-P3 coverage on this on-camera monitor.
  • Power your monitor using the included V-Mount battery plate for extended shoots.
  • Utilize HDMI and SDI cross conversion for seamless integration with your gear.
  • Monitor audio levels with up to 8 channels via HDMI & SDI inputs on set.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$159.99

3 Year

$215.99

4 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

SmallHD Ultra 7 Specifications

Ultra 7: Display

Ultra 7: Display

Jump to...
  • Panel Type

    IPS LCD

  • Diagonal Size

    7.02" (17.83cm)

  • Max Brightness

    2300nits

  • Contrast

    1000:1

  • Gamut

    95% DCI-P3 Coverage / 98% REC 709

  • Color Depth

    10-bit Processing (8-bit panel)

  • Backlight Type

    LED Edgelit

Ultra 7: EVF

Jump to...
  • Resolution

    WUXGA (1920x1200)

Ultra 7: Input Signal

Jump to...
  • 3G-SDI Input Types

    YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102

  • 6G-SDI Input Types

    YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95

  • HD-SDI Input Types

    YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100

  • SD-SDI Input Types

    YCC 4:2:2 @ 10-bits: 480i59.94, 576i52

  • HDMI Input Types

    YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840x2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i52

Ultra 7: Output Signal

Jump to...
  • 3G-SDI Output Types

    YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102

  • HD-SDI Output Types

    YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100

  • SD-SDI Output Types

    YCC 4:2:2 @ 10-bits: 480i59.94, 576i52

  • HDMI Output Types

    YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200

  • HDMI Output Types (Contd.)

    YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i51

  • Audio Output Types

    HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

Ultra 7: Data I/O

Jump to...
  • SDI

    1x BNC 6G input and 1x BNC 6G input/output (12G BNC compatible)

  • HDMI

    1 input and 1 output: HDMI Type-A Receptacles (full size)

  • Audio

    1x 3.5mm 3-pin Stereo Headphone Jack

  • Ethernet

    RJ45

Ultra 7: Power

Jump to...
  • Connector

    2-Pin Locking Connector

  • Voltage

    DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max

  • Power Supply

    Recommend DC 12-15V at -2.5 amp or greater

  • Battery Types

    V-Mount Battery Plate

  • Overload Protection

    DC input: Reverse polarity

Ultra 7: Software

Jump to...
  • Pixel Zoom

    1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom

  • Frame Guides

    Preset Aspect Ratios & Customizable

  • DSLR Scale

    Canon 5DMkii & Canon 7D

  • Custom Scale

    Yes (Underscan Only)

  • Anamorphic De-Squeeze

    0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x

  • Image Rotate

    Automatic or Manual Control

  • Image Flip

    Automatic or Manual Control

  • Cross Conversion

    Yes: HDMI - SDI & SDI - HDMI

  • Focus Assist

    User Adjustable Color Style and Intensity

  • Peaking

    User Adjustable Intensity

  • False Color

    Rainbow, Arri Style, Custom with up to 10 nodes

  • Zebra

    Dual - User Configurable

  • Waveform

    Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting

  • Vectorscope

    Yes

  • RGB Parade

    Fully User Customizable

  • Histogram

    Luma & RGB Style

  • Image Capture

    Yes

  • LUTS

    33pt User LUT instead of 17pt - 33pt Cal LUT instead of 17pt - LUT tool continues to work after removable media containing the LUT has been removed

  • Custom LUTS

    Loadable as Looks on Pages or as System wide Color Calibration via the settings menu - LUT Downstream: Available on SDI or HDMI Out. Applied on Output Preview Page - LUT Import: via SD Card or USB Storage Device

  • Color Pipe

    Unique Calibrations may be saved to each Color Pipe - Accurate color processing

  • Overlay

    With Opacity Slider and Blink Setting

  • Audio Meters

    HDMI & SDI up to 8 channel

  • Multi-View

    2 camera feeds simultaneously while filling vertical 9x16 screen with two 16:9 images on its vertical axis (Coming Soon)

Ultra 7: Physical

Jump to...
  • Dimensions (L x W x H)

    8.23 x 5.12 x 1.36" (20.90 x 13 x 3.45cm)

  • Weight

    32 oz (907.18g)

Bolt 6 Rx: Video

Jump to...
  • Video Inputs

    1x HDMI 1.4b Type-A receptacle

  • SDI Ancillary Data Support

    Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.

  • Color Sampling

    SDI: YCbCr 4:2:2, 10-bit
    HDMI: RGB 4:4:4, 8-bit

  • Delay Tx To Rx

    <0.001sec

Bolt 6 Rx: Supported Resolutions

Jump to...
  • Supported Resolutions

    4Kp23.98/24/25/29.97/30
    1080p23.98/24/25/29.97/30/50/59.94/60
    1080psf23.98/24/25/29.97/30
    1080i50/59.94/60
    720p50/59.94/60
    480p50 576p59.94/60
    480i(NTSC)/576i(PAL)

Bolt 6 Rx: Video Processing

Jump to...
  • Video Compression

    Visually Lossless

  • Color Correction

    None

Bolt 6 Rx: Audio Processing

Jump to...
  • Audio Compression

    48kHz 24-bit PCM

Bolt 6 Rx: Inputs

Jump to...
  • Audio Input

    Embedded HDMI Audio Input (2 Channel)

Bolt 6 Rx: Interfaces

Jump to...
  • Configuration Interfaces

    SmallHD Monitor UI

  • Mobile App

    Bolt App

  • Sub Interface Functionality

    SmallHD Monitor UI
    2x 5pin Locking Connector CCU (Host)

  • Bluetooth

    Via SmallHD Monitor

Bolt 6 Rx: Network

Jump to...
  • Antennas

    5x External 2dBi antennas (included)

  • Wireless

    Non-DFS Frequencies: 5.190 - 5.230GHz, 5.755 - 5.795GHz, 5.945 - 6.425GHz
    DFS Frequencies: 5.270 - 5.670GHz

  • Fry Channel Selection

    Auto, Manual

  • Encryption

    AES-256, RSA-1024 key exchange

  • Fry Power

    21 dbm EIRP

  • Range

    Up to 750' (228.6m), line of sight

  • Noise Rejection

    Can coexist with Wi-Fi and 5GHz cordless phones
    Can operate up to 6 sets in same location

  • Interoperability

    Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device)

Bolt 6 Rx: Power

Jump to...
  • Power Input

    2-Pin Circular locking Connector 6-18 VDC

  • Battery

    V-Mount Battery Plate

  • Power Consumption

    6 Watts

Bolt 6 Rx: Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

Bolt 6 Rx: Physical

Jump to...
  • Material

    Milled Aluminum(Chassis) and regulation-compliant PCB

  • Mountability

    SmallHD 5" Monitor

  • Dimensions

    4.8 x 3.7 x 1.06" (122 x 94 x 27mm)

  • Weight

    10.3 oz (292g)

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

  • UPC Code

    811786033928

19 Accessories for SmallHD Ultra 7 7" WUXGA Touchscreen On-Camera Monitor with Teradek Bolt 6 750 Receiver Monitor Module, V-Mount

  • All Accessories (19)
  • Batteries & Power Supply (3)
  • Shades (1)
  • Screen Protection (2)
  • Cables & Adapters (4)
  • Bags & Cases (1)
  • Headphones (6)
  • Brackets & Mounts (2)

About SmallHD Ultra 7

Make your on-camera monitoring experience seamless and efficient with the Ultra 7 7" WUXGA Touchscreen On-Camera Monitor. This robust and powerful device offers a remarkable 2300nits brightness, providing clear and vibrant visuals even in challenging lighting conditions. The Ultra 7 is equipped with a full suite of large, front-facing custom-function buttons, ensuring maximum control and ease of use in all environments.

This 7-inch touchscreen field monitor is not only capable of ingesting a 4K signal with 6G-SDI but also boasts a range of PageOS tools and functions. It's our first IP-certified monitor at IP53, offering water resistance in damp situations and protection against dust and dirt in extreme environments. The monitor operates efficiently in variable temperatures ranging from 0 Degree C to 40 Degree C.

The Ultra 7's chassis is fortified with a new design aesthetic, featuring raised edges that protect the front glass of the display and additional shock-absorbing bumpers that safeguard against drops, tumbles, and impacts. This adaptable monitor is suitable for all situations and conditions. It includes optional V-Mount Micro Battery Plates for a compact power solution, an Ethernet port for ARRI and Sony VENICE Camera Control, and a 5-Pin USB port for RED Camera Control (Camera Control license and cable sold separately).

The Ultra 7 7" WUXGA Touchscreen On-Camera Monitor is integrated with Teradek's wireless transmission technology. The Ultra 7 Bolt 6 RX integrates a Bolt 6 Receiver directly inside the monitor, allowing for wireless image transmission from your camera with the new internal V-Antenna. This deluxe receiver package includes your choice of V-Mount Wooden Camera Micro Battery Plates, Monitor Handles, and Neck Strap.

The Teradek Bolt 6 750 Receiver Monitor Module is a real-time wireless video receiver that supports 4K video with Teradek's patented Zero-Delay technology. This module integrates directly with the SmallHD Smart 7 Monitor Series, providing color-accurate, 4K HDR videos in under 0.001 seconds. The Bolt 6 Receiver Monitor Module attaches easily to the back of SmallHD's Cine 5, Ultra 5, and Indie 5 Smart Monitors, sharing power and video to reduce cable clutter on set.

Key features of the Bolt 6 RX Monitor Module include range options designed for diverse production needs, fast reconnection times, intuitive setup with the Bolt Manager App for iOS or Android, and consistent, stable connectivity. The Bolt 6 series utilizes the 6GHz band for superior image quality and reduced interference. In high-traffic areas, the 6GHz wireless frequency provides more options for frequency adjustments with 12 new channels. The Bolt 6 can also pass metadata, timecode, and start/stop flags from most camera manufacturers. With the Bolt 6 Monitor Module, Wireless Camera-Control is also made possible, integrating directly into SmallHD Smart Monitors. The Bolt 6 RX Monitor Module is cross-compatible with the entire Bolt 4K Series, offering flexibility to expand your workflow requirements.

The Bolt 6 uses the newly opened 6GHz wireless frequency, providing a quieter wireless environment with faster connections and less interference for an enhanced wireless experience.

SmallHD Ultra 7 Features

  • Ultra 7 7" WUXGA Touchscreen On-Camera Monitor
  • Ultra Bright (2300nits)
  • Dust and water resistant with an IP53 rating
  • 6G-SDI for modern 4K end-to-end workflows
  • Camera Control compatible with all current SmallHD licenses
  • Function Buttons for tactile control
  • Integrated Bolt 6 RX 750
  • Teradek Bolt 6 750 Receiver
  • Zero Delay under 0.001 seconds
  • 6GHz Wireless Frequency Access
  • Bolt 4K Cross-Compatibility
  • Direct SmallHD Integration
  • Inputs: HDMI

Key Features

  • Experience superior clarity with the SmallHD Ultra 7's WUXGA touchscreen display.
  • Enjoy wireless video with the integrated Teradek Bolt 6 750 receiver module.
  • Achieve accurate colors with 95% DCI-P3 coverage on this on-camera monitor.
  • Power your monitor using the included V-Mount battery plate for extended shoots.
  • Utilize HDMI and SDI cross conversion for seamless integration with your gear.
  • Monitor audio levels with up to 8 channels via HDMI & SDI inputs on set.

What's in the box:

  • SmallHD Ultra 7 7" WUXGA Touchscreen On-Camera Monitor with Teradek Bolt 6 750 Receiver Monitor Module (V-Mount)
  • V-Mount Battery Plate
  • 36" D-Tap to 2-Pin Power Cable
  • Monitor Handles
  • Neck Strap
  • SmallHD 1 Year Limited Warranty
