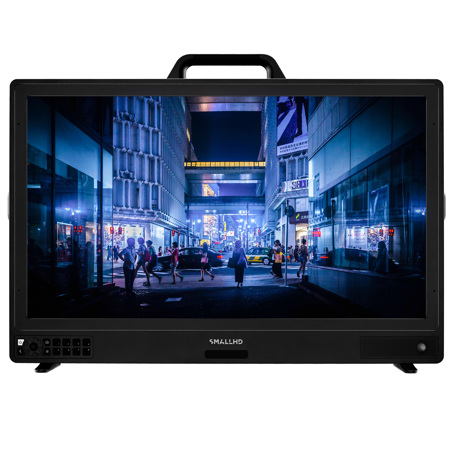

SmallHD OLED 27" 4K Ultra HD LED Reference Monitor

SKU: SM162701

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What makes the OLED 27" 4K Ultra HD LED Reference Monitor ideal for professional use?

The OLED 27" 4K Ultra HD LED Reference Monitor is designed for professional use with its high resolution of 3840 x 2160, 550nits brightness, and 1,000,000:1 contrast ratio. It also offers 10-bit true-to-life color accuracy, covering 110% DCI-P3 and 135% Rec. 709 color gamuts, making it perfect for precise color grading.

What software is included with the OLED 27" 4K Ultra HD LED Reference Monitor?

The OLED 27" 4K Ultra HD LED Reference Monitor comes equipped with PageOS, a powerful software toolset designed for simplicity and speed. It includes features such as Waveform, Vectorscope, Color Pipe HDR color-rendering, and a Monitor Calibration Wizard.

What are the mounting options for the OLED 27" 4K Ultra HD LED Reference Monitor?

The OLED 27" 4K Ultra HD LED Reference Monitor is designed for flexible placement in a professional setting. It comes equipped with a stand mount, table mount, tripod mount, and wall mount.

Is the OLED 27" 4K Ultra HD LED Reference Monitor compatible with Bolt 4K?

Yes, the OLED 27" 4K Ultra HD LED Reference Monitor is Bolt 4K-compatible, allowing for seamless integration into high-resolution workflows.

Reviews about this item

Review Summary

SmallHD OLED Specifications

Display

Display

Jump to...
  • Diagonal Size

    26.9"

  • Resolution

    3840x2160

  • Brightness

    Up to 550nits

  • Contrast

    1,000,000:1

  • Gamut

    100% DCI-P3

  • Color Depth

    True 10-bit

  • Backlight Type

    OLED

  • Display Size

    27" (68.58cm)

  • Panel Resolution

    3840 x 2160

  • Color Bit Depth

    True 10-bit

Input Signal

Jump to...
  • 12G-SDI Input Types

    4x 12G-SDI

  • HDMI Input Types

    1x HDMI 2.0 (4K60)

Output Signal

Jump to...
  • 12G-SDI Output Types

    4x 12G-SDI

  • Audio Output Types

    1x 3.5mm 3-pin Stereo Headphone Jack

Data I/O

Jump to...
  • Connector Type

    1x SD Card Slot, 1x RJ45 Ethernet, 1x RJ45 GPI

  • Input

    1x 3-pin XLR (142W max, 12V-34V, 12A max)

  • Output

    2x 2pin (12V / 2A combined) 1x USB (2.4A) (Front) 1x USB (1.5A) (Front) 1x USB-C (5V / 1.5A)

Battery

Jump to...
  • Battery Plate Included

    No

  • Battery Types

    1x Dual-GM/VM Battery Plate (14/26V) (Not Included)

  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

Physical

Jump to...
  • Weight

    13.16 lbs (5.97kg)

  • UPC Code

    811786033157

About SmallHD OLED

Enhance your professional video and photography editing experience with the OLED 27" 4K Ultra HD LED Reference Monitor from SmallHD. As the brand's largest and brightest 4K OLED reference monitor to date, it delivers an unparalleled blend of superior color accuracy and lightweight, set-ready portability, making it an essential tool in any professional workflow.

Experience the stunning clarity of 4K Ultra HD, boasting a high resolution of 3840 x 2160. This advanced monitor delivers up to 550nits of brightness and an impressive 1,000,000:1 contrast ratio, enabling you to preview HDR content on set with exceptional detail and depth.

The OLED 27" 4K Ultra HD LED Reference Monitor is not just about high resolution. It also offers 10-bit, true-to-life color accuracy, covering 110% DCI-P3 and 135% Rec. 709 color gamuts. This ensures precise color grading in the suite, making it an ideal choice for professionals seeking to produce high-quality, accurate, and vibrant visuals.

This innovative monitor is Bolt 4K-compatible and comes equipped with PageOS, a powerful software toolset designed for simplicity and speed. With features including Waveform, Vectorscope, Color Pipe HDR color-rendering, and a Monitor Calibration Wizard, you can easily manage and optimize your display settings up to 4K resolution.

Whether you're working on location or in post-production, the OLED 27" 4K Ultra HD LED Reference Monitor delivers OLED-quality image and color that meets the highest professional standards. Experience the difference of high-quality, advanced, and durable technology with this stylish and innovative monitor.

SmallHD OLED Features

  • Offering the best combination of premium color-accuracy and lightweight
  • Up to 550nits of brightness and a 1,000,000:1 contrast ratio for previewing HDR on set
  • 10-bit, true-to-life color accuracy with 110%DCI-P3 & 135% Rec. 709 color gamuts
  • OLED 27 is Bolt 4K-compatible and comes with PageOS

Key Features

  • 27" OLED 4K Ultra HD monitor with 3840 x 2160 resolution for professional editing precision
  • High dynamic range with 550nits brightness and 1,000,000:1 contrast ratio for vivid HDR previewing
  • Accurate color reproduction with 110% DCI-P3 & 135% Rec. 709 for detailed color grading
  • Bolt 4K-compatible for seamless integration into high-resolution workflows
  • Equipped with PageOS software featuring Waveform, Vectorscope, and HDR color-rendering tools
  • Flexible mounting options including stand, table, tripod, & wall mounts for versatile studio setup

What's in the box:

  • SmallHD OLED 27" 4K Ultra HD LED Reference Monitor
  • Acrylic Screen Protector
  • 3' HDMI Cable
  • 2x Cheese Stick Mount (1/4"-20)
  • 2x Combo Cheese Stick Mount (1/4"-20 & 3/8"-16)
  • Monitor Feet
  • Monitor Handle
  • 3-Pin XLR Power Supply
  • 8GB SD Card
  • Microfiber Cleaning Cloth
  • (Battery Plate Not Included)
  • SmallHD 1 Year Limited Warranty
