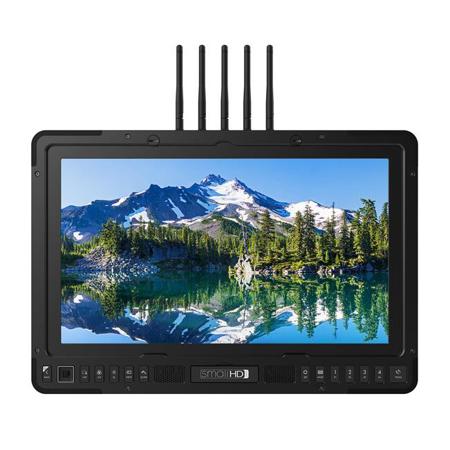

SmallHD 1703 P3X Bolt Sidekick Reference Grade 17" Production Monitor with Built-in Teradek Sidekick II Receiver

SKU: SM1703P3XSKR

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

SmallHD 1703 P3X Bolt Sidekick Specifications

Display

Display

Jump to...
  • Panel Type

    IPS LCD

  • Size Diagonal

    17

  • Resolution

    1920x1080

  • Pixel Density (PPI)

    133 PPI

  • Aspect Ratio

    16:9

  • Active Area

    16.52

  • Brightness

    1000 Nits

  • Contrast

    1400:1

  • Color Gamut

    100% DCI-P3

  • Color Depth

    True 10 bit

  • Viewing Angle

    178 degrees Vertical and Horizontal

  • Backlight Type

    White LED

  • Adjustable Backlight

    Yes - 0 - 100 in 6 steps with 100-nit studio mode

  • Temperature Adaptive Color

    No

Input Signal Types/Formats

Jump to...
  • 3G-SDI

    YCC 4:2:2 @ 10bit: 1920x1080p60, 1920x1080p59.94, 1920x1080p50, 1080i60, 1080i59.94, 1080i50

  • HD-SDI

    YCC 4:2:2 @ 10bit: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080psF25, 1080psF24, 1080psF23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

  • SD-SDI

    YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

  • Audio

    HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal Types/Formats

Jump to...
  • 3G-SDI

    YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

  • HD-SDI

    YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

  • SD-SDI

    YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

  • Audio

    HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

Wireless

Jump to...
  • Video Inputs

    Teradek Sidekick 5 antenna unit

  • Delay Tx To Rx

    < 1mSec (0.001 sec)

  • Supported Resolutions

    HDMI (8-b RGB, YCC 4:2:2, YCC 4:4:4) & SDI (10-b YCC 4:2:2) 1080p60/59.94, 1080p/50, 1080i60/59.94, 1080i/50, 1080p30/29.97, 1080p24/23.98, 720p60/59.94, 720p/50, 480i60/59.94, 480p60/59.94, 576i50, 576p/50

  • Video Compression

    Visually lossless

  • Audio Compression

    48 kHz 24-bit PCM

  • Wireless Network

    5GHz

  • RF Channel Selection

    AFS (Automatic frequency selection)

  • Encryption

    AES-127

  • Range

    Upto 500' line of sight (or 500' LoS)

  • Noise Rejection

    Can coexist with WiFi and 5 Ghz cordless phones

Connector Type

Jump to...
  • SDI

    2x BNC 3G Inputs and 2x BNC 3G Outputs

  • HDMI

    1x Output, HDMI Type-A Receptacles (full size)

  • Audio

    1x Headphone Jack on Front of Monitor

  • Power In

    1x AC Power Input - 3 Prong 90-260V, 1x XLR 4-pin Input 12-34VDC

  • Power Out

    1x Lemo Output 12VDC @ 4A Max

  • USB

    1x Front USB2, 2x Rear USB2

Controls

Jump to...
  • Primary Control Interface

    Joystick Navigation, Dedicated Back Button. Additional Dedicated buttons for: LUT Selection; Backlight Level; Input Switch; Settings Menu; Multi View; Page 1-4 Instant Selection; Tools Menu

  • Record/Capture

    Dedicated Capture Button on Front Bezel

Data I/O

Jump to...
  • Storage

    SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades, Profile Saving

  • USB

    USB ports support storage devices for LUTs, Captured Images, Image Overlays, Profile Saving - 3x USB 2.0 (2 rear, 1 front)

  • Connector Type

    Single XLR 4-pin 12-34V DC IN for Battery or Power Supply, 12V Lemo 2-pin OUT MAX 2A

  • Voltage

    DC: 12 - 34 VDC, AC: 100 - 240 VAC 50-60Hz

  • Power Consumption

    20 - 104W

  • Recommended Power Supply

    Included

  • Overload Protection

    Yes

  • Battery Types

    Gold-Mount, V-Mount with optional Battery Plate Accessory

  • Output Voltage (VDC)

    12V @ 2A via 2-pin Locking Connector

  • Battery Charging Time (hours)

    Battery Charging Not Supported

Software

Jump to...
  • Pixel Zoom (type)

    1.1-2x & 2x-8x Custom Zoom Levels with smooth pan via joystick

  • Frame Guides

    Preset Aspect Ratios & Customizable

  • DSLR Scale

    Canon 5DMkii & Canon 7D

  • Custom Scale

    Image Crop & Scale Tool for Overscan; Image Size & Position for Underscan

  • Anamorphic De-Squeeze

    .75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x, Custom

  • Image Rotate(Manual/Automatic)

    Automatic or Manual Control

  • Image Flip (Manual/Automatic)

    Automatic or Manual Control

  • Cross Conversion

    Wireless - SDI, Wireless - HDMI & SDI - HDMI

  • Focus Assist (Colors)

    User Adjustable Color Style and Intensity

  • Peaking

    User Adjustable Intensity

  • False Color

    Rainbow, Arri Style, Custom up to 10 bands

  • Zebra

    Dual - User Configurable

  • Waveform

    Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting

  • Vectorscope

    Yes

  • RGB Parade

    Fully User Customizable

  • Histogram

    Luma & RGB Style

  • Image Capture

    With Dedicated Button and Image Gallery

  • Custom LUTS

    Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu

  • LUT Downstream

    Available on SDI 1 or HDMI Out. Applied on Output Preview Page.

  • LUT Import

    via SD Card or USB Storage Device

  • Image Overlay

    Yes with Opacity Slider and Blink Setting

  • Firmware

    SmallHD Unified Firmware Version 3.5.1 or Later

  • Audio Meters

    Up to 8 channel

Environmental

Jump to...
  • Compliance

    FCC, IC, CE, RoHS

  • Operating Temperature

    32 to 100 Degree F (0 to 37 Degree C)

  • Storage Temperature

    0 to 104 Degree F (-17 to 40 Degree C)

General

Jump to...
  • Mount Points

    Multiple 1/4"-20 & 3/8"-16 Threads on Top, Bottom, Left & Right Sides. Cold Shoe Style Rails on Back of Monitor. Available Cheeseplate for Battery Bracket Mounting. Available Rapid Rail Mount interfaces with cold shoe slots for 2 additional 1/4"-20 threads.

  • Screen Protection

    Optional Acrylic Screen Protector

  • Dimensions (W x H x D)

    17 x 11.7 x 2.5" (43.18 x 29.72 x 6.35cm)

  • Weight

    12.25 lb (5.56kg) (Item Only without battery)

  • UPC Code

    811786031214

About SmallHD 1703 P3X Bolt Sidekick

The 13RX and 17RX production monitors provide cinematographers with an image they can trust. With high-performance display quality and the industry's most reliable real- time wireless technology built-in, these ruggedly designed production monitors bring tremendous value while eliminating the number of accessories on set.

Equipped with a reference grade, daylight viewable display, and built-in Teradek wireless receiver, smallHD 1703 P3X Bolt Sidekick is a 17-inch production monitor is a DIT's dream. It's literally a complete video village with a ruggedly built exterior. With color reproduction that rivals OLED technology and the ability to send real-time 3D LUTs downstream, the 17RX saves time, eliminates clutter and provides cinematographers with an accurate view of the post-production look.

SmallHD 1703 P3X Bolt Sidekick Features

  • 17" wireless production monitor with built in Sidekick II receiver
  • 1920 x 1080 with 1000 nits bright
  • Input: 2x SDI, 1x Wireless
  • Output: HDMI, 2x SDI
  • Incredible color accuracy, daylight visibility, and built-in zero-delay wireless
  • Wireless Compatibility: Teradek Bolt 500, 1000, 3000 transmitters, SmallHD TX monitors

Key Features

  • 17" wireless production monitor with built in Sidekick II receiver
  • 1920 x 1080 with 1000 nits bright
  • Input: 2x SDI, 1x Wireless
  • Output: HDMI, 2x SDI
  • Incredible color accuracy, daylight visibility, and built-in zero-delay wireless
  • Wireless Compatibility: Teradek Bolt 500, 1000, 3000 transmitters, SmallHD TX monitors

What's in the box:

  • 1703 P3X Bolt Sidekick Reference Grade 17 " Production Monitor with Built-in Teradek Sidekick II Receiver
  • XLR AC Power Adapter
  • HDMI Cable (3')
  • 17 " and 24 " Production Monitor Feet
  • 5x Antenna
  • SmallHD 1 Year Limited Warranty
