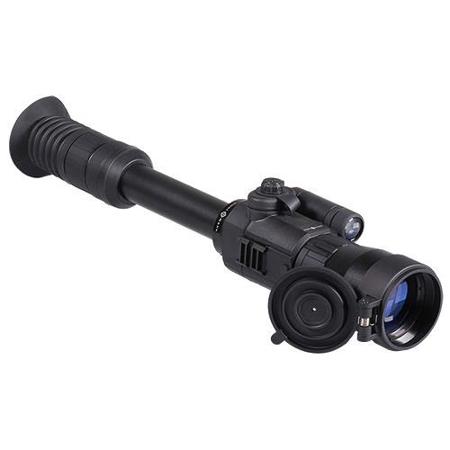

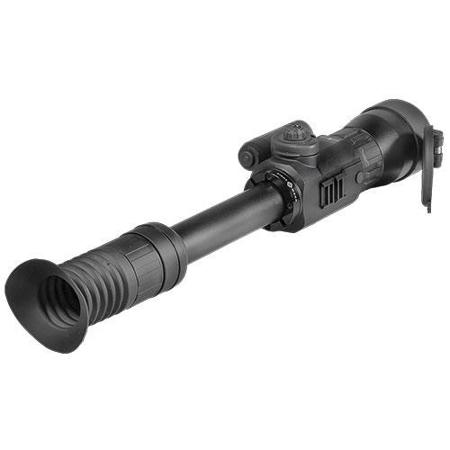

Sightmark Photon XT 6.5x50L Digital Night Vision Riflescope, Red, Green & White Illuminated Mil-Dot Reticle

SKU: SM18007

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Jeffrey T : Good reviews

Reviews about this item

Review Summary

Sightmark Photon XT 6.5x50L Specifications

  • Sensor Type

    CMOS

  • Camera Resolution

    656x492

  • Display Type

    LCD

  • Display Resolution

    640x480

  • Video IN/OUT pin

    RCA

  • Magnification

    6.5x

  • Objective Lens Dia.

    50mm

  • Lens Focus

    70mm

  • Relative aperture

    1:1.2

  • Field of view

    3.5 (horizontal)

  • Field of View

    6m at 100m

  • Min. focusing distance

    10m

  • Eye Relief

    60mm

  • Diopter Adjustment

    +/-3

  • Resolution

    38 (lines per mm)

  • Emitter

    Laser

  • IR Wavelength

    780nm

  • Equivalent IR Power

    125mW

  • Range detection

    200m

  • Power Supply

    2.0-3.3

  • Battery Type

    2xAA

  • Battery Life

    Without IR: 5 hours
    with IR: 4 hours

  • External power supply

    No

  • Windage & Elevation (1click (H/V))

    18/18 mm at 100m

  • Number of clicks

    60/60

  • Number of preloaded reticles

    6

  • Body Material

    Glass-nylon composite/metal

  • Additional accessory mount type

    Weaver

About Sightmark Photon XT 6.5x50L

Delivering a higher magnification, 33% longer battery life and 20% lighter weight than other digital night vision riflescopes on the market, the extremely versatile Sightmark Photon XT 6.5x50L features six red/green/white digital reticle options for a vast range of long-distance applications. Included are two crossbow reticles designed for 320, 350, 370 and 400 fps crossbows; two Duplex reticles for hog and varmint hunting; a Mil-Dot reticle for rangefinding and holdovers; and a German-style reticle.

Its impressive 6.5x magnification, large 50mm objective lens and higher than average 640x480 resolution allows for optimal brightness and vivid detailing at up to 200 yards. Shooters have the ability to capture everything seen, day or night, through the video output feature and attach additional accessories to the scope's integrated weaver rail. The device also utilizes a digital windage and elevation adjustment system for guaranteed precision and an overall streamlined design.

Sightmark Photon XT 6.5x50L Features

  • Day and Night Use
  • Digital Reticle with Option of 6 Reticle Styles
  • High magnification for extended viewing range
  • High Resolution Display
  • Long Eye Relief
  • Built-in 780nm laser IR illuminator
  • Resistant to Bright Light Exposure
  • Intuitive easy-to-use interface
  • Front focus objective lens
  • Additional weaver rail for accessories
  • Video output enables video recording

Key Features

  • Day and Night Use
  • Digital Reticle with Option of 6 Reticle Styles
  • High magnification for extended viewing range
  • High Resolution Display
  • Long Eye Relief
  • Built-in 780nm laser IR illuminator

What's in the box:

  • Sightmark Photon XT 6.5x50L Digital Night Vision Riflescope
  • Carrying Case
  • Video Cable
  • Lens Cloth
  • User Manual
  • Sightmark Lifetime Limited Warranty
