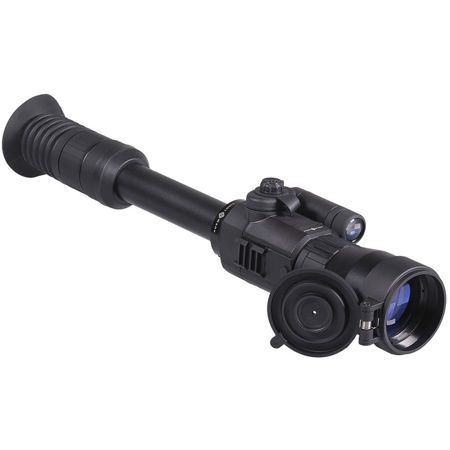

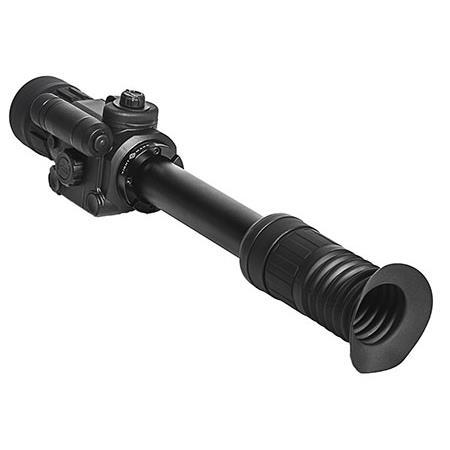

Sightmark Photon XT 4.6x42S Digital Night Vision Riflescope, Digital Reticle with Option of 6 Reticle Styles, 30mm Tube Diameter, Shockproof/Weatherproof

SKU: SM18008

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : What does the video cable look like?RUDY M : 3.5mm Jack Plug stereo - 3 RCA Plugs 3.5 mm jack plug to a 1 video Rica plug..
Shopper : Why Did You Choose This?Judy C : Hog huntingMatthew A : Good reviews

Reviews about this item

Review Summary

Sightmark Photon XT 4.6x42S Digital Night Vision Riflescope Specifications

  • Type of Sensor

    CMOS Sensor

  • Camera Resolution, pixels (EIA)

    656x492

  • Display Resolution, pixels

    640x480

  • Display Type

    LCD

  • Video IN/OUT Availability

    No/Yes

  • Pin Type of Video Output

    RCA

  • Magnification

    4.6x

  • Objective Lens Diameter

    42mm

  • Lens Focus

    50mm

  • Relative Aperture

    1:1.2 D/f'

  • Field of View, horizontal

    4.3deg

  • Field of View

    7.5m at 100m

  • Minimum Focusing Distance

    10m

  • Eye Relief

    60mm

  • Diopter Adjustment

    -3 to +3dptr

  • Resolution

    38 lines per mm

  • Emitter

    LED

  • IR Wavelength

    810nm

  • Equivalent IR Power

    100mW

  • Beam divergence, degree

    =FOV

  • Range of Detection

    120m

  • Power Supply

    2.0-3.3

  • Battery Type

    2xAA

  • Battery Life

    5 Hours (w/o IR)
    4Hours (With I/R)

  • Windage and Elevation, 1 Click (H/V)

    25/25mm at 100mm

  • Number of clicks

    60/60 (H/V)

  • Number of Preloaded Reticles

    6

  • Lens Material

    Glass

  • Type of Mount For Attachment

    Weaver

  • Level of Protection

    IPX4 Weatherproof

  • Maximum Recoil

    1000G's

  • Body Material

    Glass-Nylon Composite/Metal

  • Operating Temperature

    5 to 122 deg. F / -15 to 50 deg. C

  • Shockproof

    Yes

  • Tube Diameter

    30mm / 1.18"

  • Dimensions

    398 x 75 x 80mm / 15.67 x 2.95 x 3.15"

  • Weight

    23.6oz / 669.05g

  • UPC Code

    812495020087

About Sightmark Photon XT 4.6x42S Digital Night Vision Riflescope

Engineered for precision placement at medium range, the extremely versatile Sightmark Photon XT 4.6x42 delivers a higher magnification, 33% longer battery life and 30% lighter weight than other digital night vision riflescopes on the market. Featuring six red/green/white digital reticle options for a vast range of applications, the scope includes: two crossbow reticles designed for 320, 350, 370 and 400 fps crossbows; two Duplex reticles for hog and varmint hunting; a Mil-Dot reticle for rangefinding and holdovers; and a German-style reticle.

Its 4.6x magnification, large 42mm objective lens and higher than average 640x480 resolution offers crisp detailing at up to 120 yards. Shooters have the ability to capture everything seen, day or night, through the video output feature and attach additional accessories to the scope's integrated weaver rail. The device also utilizes a digital windage and elevation adjustment system for promised precision and an overall streamlined design.

Sightmark Photon XT 4.6x42S Digital Night Vision Riflescope Features

  • Day and Night Use
  • Digital Reticle with Option of 6 Reticle Styles
  • High Resolution Display
  • Long Eye Relief
  • Built-In 810nm LED IR Illuminator
  • Resistant to Bright Light Exposure
  • Shockproof and Weatherproof
  • Additional Weaver for Rail Accessories
  • Video Output Enables Video Reording

Key Features

  • Day & Night Use
  • Digital Reticle with Option of 6 Reticle Styles
  • High Resolution Display
  • Long Eye Relief
  • Built-In 810nm LED IR Illuminator
  • Resistant to Bright Light Exposure

What's in the box:

  • Sightmark Photon XT 4.6x42S Digital Night Vision Riflescope
  • Carrying Case
  • User Manual
  • Video Cable
  • Lens Cloth
  • Sightmark Lifetime Limited Warranty
