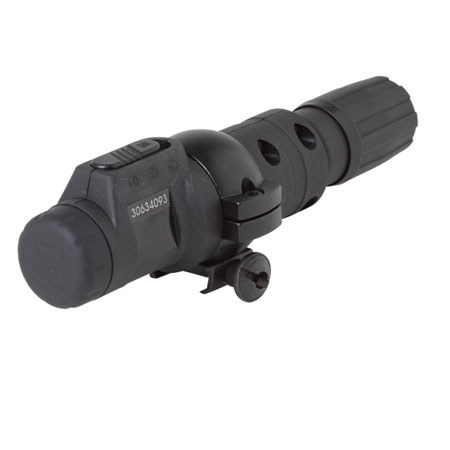

Sightmark IR-805 Compact Infrared Illuminator, 19mm Lens Diameter, 805nm IR Wavelength

SKU: SM19075

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sightmark SM19075 Specifications

  • Equivalent IR Power

    100 mW

  • Diode type

    LED

  • Lens diameter

    19 mm

  • Range of power adjustment (min...max nW)

    0-70-100

  • IR wavelength

    805(nm)

  • Power supply/ battery

    3 (2xAAA)

  • Range of beam divergence

    8 to 14(deg.C)

  • Mount type

    Weaver

  • IP standard

    IPX4

  • Storage temperature

    > + 10deg.(deg.C)

  • Average operation time

    20(hours)with one set of batteries

  • Operating temperature

    -30 - +40 (deg.C)

  • Lens material

    Glass

  • Body material

    Plastic

  • Dimensions (L x W x D)

    145 x 0.680 x 0.812 mm (5.70 x 0.026 x 0.031")

  • Weight (without/ with batteries)

    100/120 g (0.029 oz)

  • UPC Code

    810119016980

About Sightmark SM19075

The Sightmark Infrared Illuminator acts as a flashlight during night vision use. With the Infrared Illuminator, the user can illuminate the target without the prey detecting it. The Sightmark IR Illuminator is great for indoor and outdoor use, where there is low ambient light, such as during a SWAT raid in a dark warehouse or varmint hunting out on a moonless night.

Operable with two AAA batteries, the Sightmark Infrared Illuminator offers two power options, a low output at 70 miliwatts and a high output at 100 miliwatts for a more powerful and brighter experience. Featuring a battery life of 20 hours, the infrared illuminator also has an adjustable beam focus to widen or narrow the stream of light. The adjustable beam focus is perfect for not only user preference, but for adapting to long and short ranges and indoor/outdoor use. For closer ranges or indoor use, where target acquisition is important, the wider beam will cover a wider field of view.

The design of the IR flashlight is great for handheld use and the location of the on/off switch makes it easy to operate with the thumb. As long as the enemy does not have night vision, the IR flashlight can be used for covert signaling at night. The Infrared Illuminator comes with a standard one inch weaver mount that fits most rifles and also comes with nylon carrying case for easy carry and storage.

Sightmark SM19075 Features

  • Increased detection range
  • Identify objectives more accurately
  • Obtain a more detailed image of the observed object
  • Adjustable beam, spot to flood
  • Adjustable power output
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

Key Features

  • Increased detection range
  • Identify objectives more accurately
  • Obtain a more detailed image of the observed object
  • Adjustable beam, spot to flood
  • Adjustable power output

What's in the box:

  • Sightmark IR-805 Compact Infrared Illuminator
  • Carrying Case
  • 1" Weaver Mount
  • Cleaning Cloth
  • User Manual
  • Sightmark Warranty
