SteadiCam M-2 Core Kit, Gold Mount

Your Entry into the M-Series Ecosystem.

The M-2 Core Difference
The most integrated and adaptable Steadicam system ever made is here. Now, operators on a budget can step into the latest technology and own a Steadicam that's ready to grow with them. Specially configured and priced to provide an entry point into the Steadicam M-Series ecosystem, M-2 Core Kits utilize the same lightweight components and modular design that has made the M-2 an industry standard. Kits are fully compatible with all M-Series components and accessories including the Steadicam Volt, so as an operator's needs change, their sled adapts with them.

M2-TSF - M2 Flat Top Stage
• 3 x HDSDI
• 1 x Tally
• 1 x Large Lemo (camera power)
• 3 x Small Lemo (accessory power)
• 2 x D-Tap
• Dovetail plate w/bubble level
• Volt ready

M2-GIM - M2 Gimbal
• High performance bearing
• Large knurled grip
• Fits 3/4", 5/8", 1/2" arm posts
• Volt ready

158-2SP - M2 1.58" Post
• Lightweight carbon fiber
• 2-Section design
• Adjustable length 21.7-38.9" (55.1-98.9cm)

158MB-UMM - M2 1.58" Monitor Mount
• Universal side mounting points
• Fits monitors 5-10" (12.7-25.4vm)
• Removable and positionable
• Standard 15mm rods w/60mm spacing

M2-GMBASE - M2 Gold Mount Base
• Dual battery mounts
• Hot swap 12V mode
• 3 x HDSDI
• 1 x Large Lemo (monitor power)
• 3 x Small Lemo (accessory power)
• 2 x D-Tap

G50XARM - G50X Arm
• 50 lbs weight capacity
• Iso-Elastic design w/titanium springs
• Adjustable Lift and Ride controls
• 3/4" & 5/8" arm posts<

817-7980 - M-Series Padded Docking Bracket
• Volt ready fork
• Telescoping post
• Dual balancing studs
• Arm hanger
• Tool rack

807-7800-02 - Zephyr Vest
• Lightweight & comfortable design
• Adjustable - one size fits all
• Large socket block

Modular to Suit Your Style

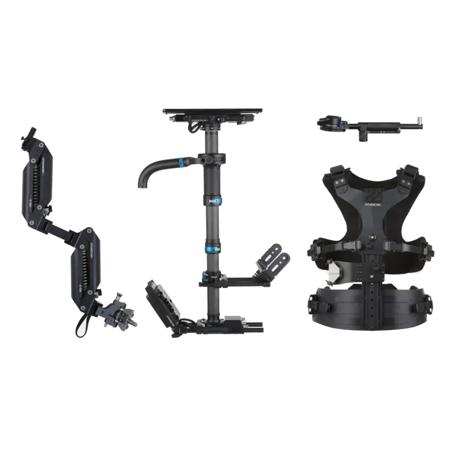

The two M-2 Core Kits share the same components, except the M2-VLKIT is compatible with V-Lock and the M2-ABKIT is made for Gold Mount batteries. Both sled versions include the M-2 Flat Top Stage with Dovetail Plate, M-2 Gimbal, 1.58" 2-section Post, Monitor Bracket, and Battery Base. Core Kits also feature the G-50X Iso-Elastic Arm with Steadicam's exclusive Lift & Ride control as well as the Zephyr Vest with Large Socket Block and the Padded Docking Bracket.
