SmallHD 702 Touch 7" On-Camera Monitor with Bolt 4K Receiver, V-Mount
See all SmallHD items

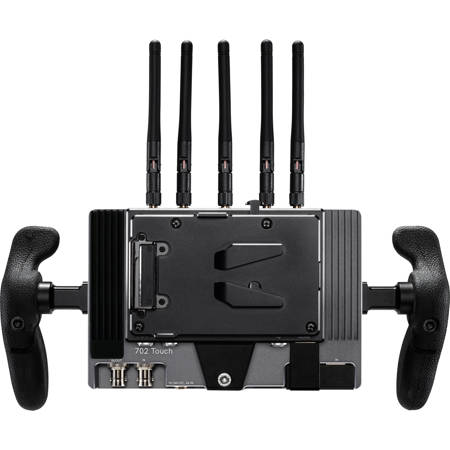

SmallHD 702 Touch 7" On-Camera Monitor with Bolt 4K Receiver, V-Mount

SKU: SM702TBT4KVM
(4)

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
SmallHD Indie 5 5" 16:9 Full HD Touchscreen On-Camera Monitor
$1,299.00
undefined undefined: Picture 1 regular
SmallHD Ultra 5 5" 16:9 Full HD Touchscreen On-Camera Monitor
$2,249.00
$1,699.00
undefined undefined: Picture 1 regular
SmallHD Ultra 5 5" 16:9 FHD Touch On-Camera Monitor w/Bolt 6 750 Rx, Gold Mount
$3,549.00
$2,699.00
undefined undefined: Picture 1 regular
SmallHD Ultra 5 5" 16:9 FHD Touch On-Camera Monitor with Bolt 6 750 Rx, V-Mount
$3,549.00
undefined undefined: Picture 1 regular
SmallHD Ultra 5 5" 16:9 FHD Touchscreen On-Camera Monitor w/Bolt 6 750 Tx Module
$3,349.00
$3,299.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2022-11-03T07:17:56

Rated 5 out of 5

Great monitor - price and big, but really high quality

Love this monitor?has all of the things I need including customization. It?s a high quality product - pricey, but gives me confidence in pulling focus. It?s big, but for shooting on a tripod it?s great. I love that the kit includes a battery and cables needed.

MICHAEL S.

2022-07-03T12:11:22

Rated 5 out of 5

Best 7? monitor in its class

Met my expectations - and exceeded it. Bright, clear, sharp and easy to use the menus. I love this monitor!

ALAN F.

2021-05-27T10:07:52

Rated 5 out of 5

Amazing

Amazing product, used everyday since i made my purchase. Small HD is a great investment, and an amazing addition to your gear

BRYCE B.

2020-07-01T17:48:17

Rated 5 out of 5

I'm on board with this great tool!

I love this external monitor. The color is great. Can load luts into it for preview. Focus assist. Exposure assist. You can make them separate screens to swipe across or make them touch on and off on one screen, or both. I like having one screen have all of them. You could also have different luts on different screens, etc. Very customizable. The touch screen is very responsive. It feels like a solid piece of equipment. Lighter than expected. Can use two sony L batteries. 1 HDMI in. 1 HDMI out. 4 camera attachments (bottom, 2 sides, 1 back). 1 button to turn on and off, hold to turn off. Box includes: two branded microfiber cloths, 1 screen protector (hard to put on so be careful), and monitor. No batteries. No HDMI cable. No attachment. I recommend the two screw attachment found on the Falcon Eyes F7 LED lights (amazon). Fantastic light as well! Make sure to get a micro HDMI for your camera to regular HDMI for the SmallHD. I bought on sale for $899, so look for that deal. Otherwise, I would fully recommend this product even at the regular price. Also owned by Vitec, who also owns Sachtler, among other fantastic camera gear.

RYAN H.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

SmallHD 702 Touch Specifications

702 Touch 7" Monitor: Display

702 Touch 7" Monitor: Display

Jump to...

  • Panel Type

    IPS LCD

  • Diagonal Size

    7.02

  • Resolution

    1920x1200

  • Pixel Density

    322

  • Aspect Ratio

    16:10

  • Active Area

    5.95 x 3.72

  • Brightness

    1500 Nits

  • Contrast

    1000:1

  • Gamut

    100% DCI-P3 Coverage

  • Color Depth

    10-bit Processing (8-bit panel)

  • Viewing Angle

    160

  • Backlight Type

    LED

  • Adjustable Backlight

    Yes

702 Touch 7" Monitor: Input Signal

Jump to...

  • 3G-SDI Input Types

    YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

  • HD-SDI Input Types

    YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94,
    720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

  • SD-SDI Input Types

    YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

  • HDMI Input Types

    YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50

  • Audio Input Types

    HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

702 Touch 7" Monitor: Output Signal

Jump to...

  • 3G-SDI Output Types

    YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

  • HD-SDI Output Types

    YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

  • SD-SDI Output Types

    YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

  • HDMI Output Types

    YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200

  • Audio Output Types

    HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

702 Touch 7" Monitor: Connector Type

Jump to...

  • SDI

    1x BNC 3G input and 1x BNC 3G selectable input/output

  • HDMI

    1 input and 1 output: HDMI Type-D Receptacles (full size)

  • Audio

    1x 3.5mm 3-pin Stereo Headphone Jack

  • Power In

    Barrel, 2.0mm ID, 5.5mm OD (center pin positive)

  • USB

    1x USB 2.0 Micro-B receptacle

702 Touch 7" Monitor: Controls

Jump to...

  • Primary

    Touch Screen

  • Record Capture

    Image Capture Tool

702 Touch 7" Monitor: Software

Jump to...

  • Pixel Zoom

    1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom

  • Frame Guides

    Preset Aspect Ratios & Customizable

  • DSLR Scale

    Canon 5DMkii & Canon 7D

  • Custom Scale

    Yes (Underscan Only)

  • Anamorphic De-Squeeze

    0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x

  • Image Rotate

    Automatic or Manual Control

  • Image Flip

    Automatic or Manual Control

  • Cross Conversion

    Yes: HDMI - SDI & SDI - HDMI

  • Focus Assist

    User Adjustable Color Style and Intensity

  • Peaking

    User Adjustable Intensity

  • False Color

    Rainbow, Arri Style, Custom with up to 10 nodes

  • Zebra

    Dual - User Configurable

  • Waveform

    Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting

  • Vectorscope

    Yes

  • RGB Parade

    Fully User Customizable

  • Histogram

    Luma & RGB Style

  • Image Capture

    Yes

  • Custom LUTS

    Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu

  • LUT Downstream

    Available on SDI or HDMI Out. Applied on Output Preview Page.

  • LUT Import

    via SD Card or USB Storage Device

  • Overlay

    With Opacity Slider and Blink Setting

  • Audio Meters

    HDMI & SDI up to 8 channel

702 Touch 7" Monitor: Environmental

Jump to...

  • Compliance

    FCC, IC, CE, RoHS

  • Operating Temperature

    30 Degree F to 100 Degree F (-1.11 Degree C to 37.77 Degree C)

  • Storage Temperature

    0 Degree F to 120 Degree F (-17 Degree C to 48.88 Degree C)

  • Mount Points

    Four 1/4-20 Mount Points (Left, Right, Bottom, and Back)

702 Touch 7" Monitor: Power

Jump to...

  • Connector

    Barrel, 2.0mm ID, 5.5mm OD (center pin positive)

  • Voltage

    DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max

  • Consumption

    17.3 watts (2160p30, 100% bright, tools enabled), (2.4A @7.2V battery, 1.4A @12V barrel, 0.7A at 24V barrel)

  • Batter Plate Included

    L-Series standard (V Mount or Gold Mount optional accessories)

  • Power Supply

    Recommend DC 12-15V at -2.5 amp or greater

  • Battery Types

    L-Series, V-Mount, Gold Mount

  • Overload Protection

    DC input: Reverse polarity

  • Battery Charging Time

    Monitor does not support the charging of batteries

  • Battery Info

    Required, not included

  • Battery Material

    Lithium-Ion

  • Battery Quantity

    0

  • Battery Type

    -

702 Touch 7" Monitor: General

Jump to...

  • Construction

    Anodized aluminum chassis

  • Dimensions (L x W x H)

    7.09 x 1.32 x 4.67" (180 x 33.52 x 118.61mm)

  • Weight

    18.9 oz (535g)

Bolt 4K RX Module: Wireless

Jump to...

  • Wireless Range

    750' (228.6m) (Line-of-Sight)

  • # of Channels

    13 (40 MHz)
    25 (20 MHz)

  • Channel Bandwidth

    40 MHz, 20 MHz

  • Frequency Range

    Non-DFS Frequencies
    US: 5.19 to 5.23 GHz
    US: 5.75 to 5.79 GHz

    DFS Frequencies
    US: 5.27 to 5.67 GHz

  • Latency

    < 0.01 ms

  • RF Power

    17 dBm

  • Wireless Video Compression

    Uncompressed

Bolt 4K RX Module: Interfaces

Jump to...

  • Antenna Ports

    5 x RP-SMA Female

  • Video Connectors

    1 x HDMI Output

  • Other I/O

    1 x USB Micro-B Input

  • Embedded Audio

    SDI: 2-Channel
    HDMI: 2-Channel

  • Encryption

    256-Bit AES

Bolt 4K RX Module: Format Support

Jump to...

  • Video Format

    SDI/BNC:
    1080p 4:2:2 YCC 10-Bit at 23.98, 24, 25, 29.97, 30, 59.94, 60 fps
    1080PsF 4:2:2 YCC 10-Bit at 23.98, 24, 25, 29.97, 30 fps
    1080i/720p 4:2:2 YCC 10-Bit at 50, 59.94, 60 fps
    576p at 25, 50 fps
    576i at 50 fps
    480p at 59.94, 60 fps
    480i at 59.94 fps

  • Video Format (Contd.)

    HDMI:
    UHD 4K 4:4:4 RGB 10-Bit at 23.98, 24, 25, 29.97, 30 fps
    1080p 4:4:4 RGB 10-Bit at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
    1080PsF 4:4:4 RGB 10-Bit at 23.98, 24, 25, 29.97, 30 fps
    1080i/720p 4:4:4 RGB 10-Bit at 50, 59.94, 60 fps
    576p at 25, 50 fps
    576i at 50 fps
    480p at 59.94, 60 fps
    480i at 59.94 fps

  • Audio Format

    2-Channel 24-Bit 48 kHz LPCM Audio

  • Timecode

    Yes

Bolt 4K RX Module: Display

Jump to...

  • Panel Type

    OLED

Bolt 4K RX Module: Power

Jump to...

  • Built-In Battery

    None

  • Battery Support

    1 x V-Mount

  • Power Connector

    1 x 2-Pin LEMO (6 to 28 VDC) Input

  • Power Consumption

    Device: (11 W)

Bolt 4K RX Module: Environmental

Jump to...

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

About SmallHD 702 Touch

SmallHD 702 Touch + Teradek Bolt 4K RX Monitor Module Integrated Hardware Bundle
This monitor receiver combination is the perfect pairing for meticulous eyes. RX Module easily attaches to the back of 702 Touch. Receive real-time 4K HDR wireless video directly to a 1500nit display with 100% Rec. 709 color gamut. Gain the added benefits of PageOS 4, SmallHD's powerful internal software toolset; 1:1 Pixel zoom allows operators to utilize added resolution to punch-in and achieve tack-sharp critical focus. Includes Monitor Handles for handheld conversion and a V-Mount Battery Plate capable of battery power pass-through to both RX Module and monitor.

Versatile 7" Monitor
702 Touch is a workhorse 7" on-camera monitor for cinematographers, offering color accuracy, daylight visibility, cinema camera control, as well as Teradek RT and Bolt integration.

Zero-Delay 4K Wireless Video
Receive images up to 4Kp30 at a line-of-sight distance of up to 750ft (228m) with no image latency (>0.001sec).

True HDR
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut. Receive Log-enabled camera signals with wide dynamic range in order to monitor and achieve balanced highlight and lowlight regions with accurate color reproduction.

Improved Wireless Performance
Reliable signal reception over 13x 40MHz frequencies, with upgraded hardware and less image break-up than previous Bolt generations. Faster reconnection times, automatic signal quality switching, and a more robust frequency hopping algorithm. An additional 5GHz radio frequency link is available for high-traffic locations with excessive interference from other wireless devices.

RX Universal Cross-Compatibility between all Bolt 4K Devices
Receive signal from any Bolt 4K series TX device for expanding workflow requirements.

Small HD PageOS 4 Software Toolset
User page presets, Focus Assist, frame guides, 4K HDR (PQ) waveforms, improved false color, Color Pipe log conversion, etc. Monitor camera metadata, timecode, and start/stop flags.

Bolt App for Android and Apple iOS
Remotely pair any TX/RX devices, manually designate specific 5GHz channels, and monitor interference with the 5GHz Spectrum Analyzer and Wireless Health analysis tools.

SmallHD 702 Touch Features

  • 702 Touch 7" On-Camera Monitor Features
  • 7-Inch Display, 1920X1200
  • 1500 nits Brightness
  • 1x HDMI In, 1x HDMI Out
  • 1x 3G SDI In, 1x 3G SDI In/Out
  • 1/8" Headphone Audio Jack
  • Bolt 4K RX Monitor Module Features
  • 750' (228m) Range
  • 4K over HDMI
  • 1080p over SDI
  • 10 bit HDR video support
  • Barrel Power Input (10V-34V, 2A DC)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Request a Callback

Chat one-on-one with an expert

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 702 Touch 7" On-Camera Monitor Highlights
  • 7-Inch Display, 1920X1200
  • 1500 nits Brightness
  • 1x HDMI In, 1x HDMI Out
  • Bolt 4K RX Monitor Module Highlights
  • 750' (228m) Range

What's in the box:

  • SmallHD 702 Touch 7" On-Camera Monitor
  • Microfiber Cleaning Cloth
  • L-Series Battery Plate
  • Screen Protector
  • 8GB SD Card
  • Teradek Bolt 4K RX Monitor Module for Cine 7 and 702 Touch (V-Mount)
  • V-Mount Battery Plate
  • SmallHD 1 Year Limited Warranty
