SmartSystem Matrix One Basic Bundle with V-Lock Battery Mount

SKU: SMART2593 MFR: 000002593
Earn VIP Reward Points

Key Features

  • Achieve smooth, professional footage with this SmartSystem stabilizer, perfect for filmmakers.
  • Experience superior stability with the Matrix Sled, crafted from lightweight carbon fiber material.
  • Enjoy a customizable fit with the Vest Lite, designed for comfort during long film shoots.
  • Easily adjust your camera with the precision-engineered arm, supporting up to 74.9 lbs payload.
  • Transport your entire stabilizer system safely in the rugged, IP67-rated hard case included.
  • The V-Lock battery mount ensures reliable power for extended shooting sessions; batteries not included.
See More Product Details
Special Order?Estimated to Ship: 09/10/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

SmartSystem Matrix One Basic Bundle with V-Lock Battery Mount Specifications

Arm X1
  • Material

    Arm: Aluminum alloy like 7075 (Ergal)

  • Boom Range

    28.5" (728mm)

  • Maximum Payload

    74.9 lbs (34kg)

  • Width

    1.77" (45mm)

  • Weight

    9.92 lbs (4.5kg)

Matrix Sled Basic

Jump to...
  • Mount

    V-Lock Mount

  • Material

    Carbon Fiber

  • Stabilizer Type

    Single-Grip Handheld

  • Camera Mount

    Camera Plate

  • Center Column Diameter

    1.6" (40mm)

  • Number of Sections

    2x

  • Power I/O

    2x LEMO 2-Pin (14.8 VDC) Output
    1x LEMO 4-Pin (14.8 VDC) Output

  • Video

    1x BNC Input/Output

  • Counterweights

    None

  • Battery Info

    Required, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

  • Weight

    9.3 lbs (4.2kg)

Vest Lite

Jump to...
  • Material

    Aluminum, Stainless Steel

  • Weight

    6.4 lbs (2.9kg)

Hard Case

Jump to...
  • Compatibility

    SmartCAM Arm & Sled System

  • Material

    Polypropylene

  • Certifications

    IP67
    STANAG 4280
    DEF STAN 81-41 Compliancy

  • Operating Temperature

    -22 to 194 Degree F (-30 to 90 Degree C)

  • Dimensions

    Outer: 32.12 x 21.26 x 12.04" (816 x 540 x 306mm)

  • Weight

    23.8 lbs (10.8kg)

  • UPC Code

    8051411190684

About SmartSystem Matrix One Basic Bundle with V-Lock Battery Mount

Enhance your videography skills with the Matrix One Basic Bundle with V-Lock Battery Mount, a comprehensive professional steadicam package designed for light cameras and entry-level operators. This SmartSystem steadicam bundle is engineered to support a wide range of loads, from 1.10 to 29.76 (0.5 to 13.5kg), making it an ideal choice for stabilizing light cameras like handycams or reflex cameras.

The Matrix One Basic Bundle is a high-value package that includes the Arm X, Matrix Sled Basic, Vest Lite, and hard cases for the arm and sled. It's designed with affordability and versatility in mind, making it a perfect fit for professional videomakers seeking high performance from the X1 Arm with lighter cameras, without the need for costly and oversized equipment.

The SmartSystem Matrix Sled Basic is equipped with cinema-grade sled functionalities like an ultra-fluid gimbal and micrometric non-floating head, making static and dynamic balancing a breeze. It also features an LCD Monitor holder and duo V-lock Battery slots, offering a tool-free setup for your convenience.

The Matrix Sled Basic's smarthead allows for the creation of new configurations and the ability to keep your sled up-to-date with future SmartSystem releases. It also allows for customization according to your specific needs.

The Matrix Sled Basic also offers dedicated wiring for each component of your equipment, ensuring the proper voltage for optimal performance. It also features high-quality connectors, from the original Neutrik XLR to the BNC connector with gold plated contacts, ensuring a lossless power and video signal.

The Arm X1, manufactured and hand-built exclusively in Italy, is made from the high-performing AL7075 Ergal alloy, offering strength and performance at a fraction of the weight. It's designed with a unique XTune system that allows you to tune your ArmX1 to respond exactly as you prefer, from super smooth to very responsive.

The Vest Lite, engineered from top-quality materials, offers maximum comfort and adaptability for operators. It features a ratchet system for progressive tightening force and a safety handle for emergency cases.

The Matrix One Basic Bundle also includes a hard case, a trolley based on Explorer Cases 7745, modified to protect your SMARTCAM ARM (X-LITE or X1) and SMARTCAM SLED (MATRIX series). This comprehensive bundle offers everything a professional videomaker needs to enhance their videography skills and produce high-quality content.

SmartSystem Matrix One Basic Bundle with V-Lock Battery Mount Features

  • Arm X1 Features
  • Double section articulated stabilization arm with an ultimate payload of 74.9 lbs (34kg) based on an exclusive Patented Design
  • Extremely light and compact: it's one of the smallest and lightest stabilizer arm in the market (only 1.77" (45mm) of width)
  • Exclusive X-Tune system allows the operator to set up Arm X1 to obtain the correct dynamic response for its needs
  • Completely milled from highest quality Ergal 7075 aluminum, shot peened and hard anodized for ultimate strength and lightness (only 9.92 lbs (4.5kg) in its heavier configuration)
  • Equipped with Patent Pending DynaSpring Technology that dynamically adapt the answer of the springs all over the boom range
  • Perfectly compatible with every type of professional stabilizer Vest or Sled on the market
  • Matrix Sled Basic Features
  • Matrix Sleds Basic turns Static Balancing and Dynamic Balancing extremely easy
  • Designed for light cameras, it was equipped with Cinema grade sled functionalities like Ultra fluid Gimbal or Micrometric non floating head
  • Monitor LCD holder for maximum stiffness and double Vlock Batteries slots for endurance
  • 1.575" Carbon fiber Telescopic center post for a total weight of 9.25lbs
  • Vest Lite Features
  • Great comfort and perfect fit for operators of any height or weight, male or female
  • Ergonomic and flexible design. Reduced weight: just 6 lbs (2.7kg)
  • Buckle system for quick tighten and release operation
  • Memory foam padding
  • Balanced weight distribution
  • Removable and washable textile parts
  • Standard Arm connector. Compatible with all Professional Arms in the market
  • Transport Bag included
  • Hard Case Features
  • Polypropylene outer case
  • Foam rubber inner padding
  • Transport handle

Key Features

  • Achieve smooth, professional footage with this SmartSystem stabilizer, perfect for filmmakers.
  • Experience superior stability with the Matrix Sled, crafted from lightweight carbon fiber material.
  • Enjoy a customizable fit with the Vest Lite, designed for comfort during long film shoots.
  • Easily adjust your camera with the precision-engineered arm, supporting up to 74.9 lbs payload.
  • Transport your entire stabilizer system safely in the rugged, IP67-rated hard case included.
  • The V-Lock battery mount ensures reliable power for extended shooting sessions; batteries not included.

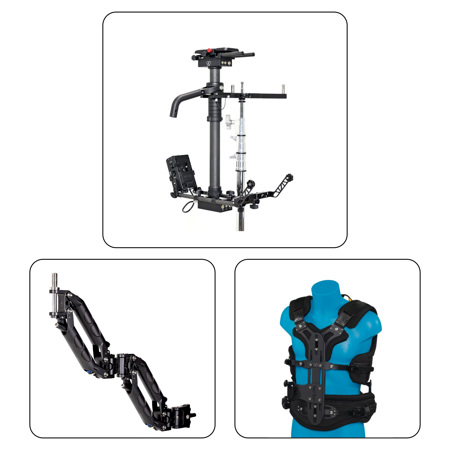

What's in the box:

  • Arm X1 Stabilizer Arm
  • Matrix Sled Basic Stabilizer with V-Lock Battery Mount
  • Vest Lite with Backpack
  • Hard Case
  • SmartSystem 1 Year Limited Warranty
