SmartSystem Matrix One Pro Bundle with V-Lock Battery Mount

SKU: SMART2594 MFR: 000002594
Earn VIP Reward Points

Key Features

  • Achieve smooth, professional footage with this SmartSystem video stabilizer bundle.
  • Enjoy robust support for cameras up to 74.9 lbs with the durable Arm X1 stabilizer.
  • The Matrix Sled Pro's carbon fiber build offers lightweight, single-grip handheld control.
  • Quickly adjust your setup with the V-Lock battery mount for seamless power integration.
  • Experience comfortable extended shoots using the lightweight Vest Lite with backpack.
  • Safeguard your investment with the included hard case, offering IP67-rated protection.
See More Product Details
Special Order?Estimated to Ship: 09/07/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?CHIP G : It was a great deal.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

SmartSystem Matrix One Pro Bundle with V-Lock Battery Mount Specifications

Arm X1
  • Material

    Arm: Aluminum alloy like 7075 (Ergal)

  • Boom Range

    28.5" (728mm)

  • Maximum Payload

    74.9 lbs (34kg)

  • Width

    1.77" (45mm)

  • Weight

    9.92 lbs (4.5kg)

Matrix Sled Pro

Jump to...
  • Mount

    V-Lock Mount

  • Material

    Carbon Fiber

  • Stabilizer Type

    Single-Grip Handheld

  • Camera Mount

    Camera Plate

  • Center Column Diameter

    1.6" (40mm)

  • Number of Sections

    2

  • Power I/O

    2x LEMO 2-Pin (14.8 VDC) Output
    1x LEMO 4-Pin (14.8 VDC) Output

  • Video

    1x BNC Input/Output

  • Counterweights

    10x 8 oz (227g)

  • Battery Info

    Required, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    3

  • Weight

    Without Counterweights: 10.4 lbs (4.7kg)

Vest Lite

Jump to...
  • Material

    Aluminum, Stainless Steel

  • Weight

    5.95 lbs (2.7kg)

Hard Case

Jump to...
  • Compatibility

    SmartCAM Arm & Sled System

  • Material

    Polypropylene

  • Certifications

    IP67
    STANAG 4280
    DEF STAN 81-41 Compliancy

  • Operating Temperature

    -22 to 194 Degree F (-30 to 90 Degree C)

  • Dimensions

    Outer: 32.12 x 21.26 x 12.04" (816 x 540 x 306mm)

  • Weight

    23.8 lbs (10.8kg)

  • UPC Code

    8051411190691

About SmartSystem Matrix One Pro Bundle with V-Lock Battery Mount

Because capturing smooth, professional footage is essential for any videographer, the Matrix One Pro Bundle with V-Lock Battery Mount is the ultimate choice for those seeking durability, versatility, and high-quality performance. This bundle is designed to cater to the needs of ENG camera operators, accommodating even the heaviest models with ease, thanks to the inclusion of additional counterbalance weights.

The SmartSystem Matrix Sled Pro at the heart of this bundle simplifies both Static and Dynamic Balancing, featuring cinema-grade sled functionalities such as an ultra-fluid gimbal and a micrometric non-floating head. The Matrix Sled supports a variety of equipment, including most popular LCD monitors, courtesy of its new adjustable stand. The sled also boasts duo V-lock Battery slots and additional C-Battery slots for extended power options.

Tool-free adjustments are a hallmark of the Matrix Sled Pro, eliminating the need for keys during setup and ensuring swift, precise modifications. The 1.5" Carbon Telescopic Post (40mm) combines strength with lightweight convenience, while the professional gimbal offers surprising fluidity and an innovative locking clamp for minimal fastening force.

The sled's smarthead technology allows operators to update their setup for future releases by SmartSystem or customize it to meet specific requirements. Dedicated wiring supports up to three different voltages, ensuring that each component of your equipment receives the proper power.

The inclusion of a C Battery Plate adds even more power and flexibility to your setup. With the ability to add up to ten counterbalance weights (7.93 oz/225g each), the Matrix Sled Pro ensures perfect balance without compromising the versatility of your setup. High-quality connectors, including Neutrik XLR and gold-plated BNC, guarantee lossless power and Full-HD-HD-SDI video signal transmission.

The Arm X1, meticulously crafted in Italy from CNC-milled AL7075 Ergal alloy, offers performance akin to carbon steel with a fraction of the weight. Its slim design does not sacrifice load capabilities, lifting up to 32kg (70.4 lbs) with a maximum payload of 34kg (74.9 lbs). The XTune patented design allows for precise tuning of the arm's response, while the DYNASPRING technology adapts the spring's elastic response throughout the boom range for exceptionally smooth operation.

The Vest Lite is engineered for maximum comfort and adaptability, featuring movable plates for a custom fit and a ratchet system for progressive tightening. Constructed from solid Ergal T7075 Aluminum, the vest is lightweight at only 2.9kg (6.4lbs) and includes a padded backpack for transport.

Finally, the bundle comes with a custom resin hard case that meets military specifications, ensuring that your valuable equipment is protected during transport. The Matrix One Pro Bundle with V-Lock Battery Mount is not just a steadicam system; it's a comprehensive solution for dynamic camera stabilization, designed to meet the rigorous demands of professional operators.

SmartSystem Matrix One Pro Bundle with V-Lock Battery Mount Features

  • Arm X1 Features
  • Double section articulated stabilization arm with an ultimate payload of 34kg (74.9lbs) based on an exclusive Patented Design
  • Extremely light and compact: it's one of the smallest and lightest stabilizer arm in the market (only 45mm of width)
  • Exclusive X-Tune system allows the operator to set up Arm X1 to obtain the correct dynamic response for its needs
  • Completely milled from highest quality Ergal 7075 aluminum, shot peened and hard anodized for ultimate strength and lightness (only 4.5kg in its heavier configuration)
  • Equipped with Patent Pending DynaSpring Technology that dynamically adapt the answer of the springs all over the boom range
  • Perfectly compatible with every type of professional stabilizer Vest or Sled on the market
  • Matrix Sled Pro Features
  • The PRO version is perfect for ENG cameras, even the heavier ones thanks to additional counterbalance weights included
  • Equipped with Cinema grade sled functionalities like Ultra fluid Gimbal or Micrometric non floating head
  • Monitor LCD holder for maximum stiffness, double V-lock Batteries slots for endurance with and extra C-Battery Slots
  • 1.575" Carbon fiber Telescopic center post for a total weight of 4.7kgs without counterbalance weights
  • Vest Lite Features
  • Great comfort and Perfect fit to any operator height and weight, male or female
  • Most probably, the lightest vest on the market: just 2.9kgs (6.4 lbs)
  • Buckle system for quick tighten and release operation
  • Memory foam padding
  • Balanced weight distribution
  • Removable and washable textile parts
  • Standard Arm connector. Compatible with all Professional Arms on the market
  • Hard Case Features
  • Polypropylene outer case
  • Foam rubber inner padding
  • Transport handle

Key Features

  • Achieve smooth, professional footage with this SmartSystem video stabilizer bundle.
  • Enjoy robust support for cameras up to 74.9 lbs with the durable Arm X1 stabilizer.
  • The Matrix Sled Pro's carbon fiber build offers lightweight, single-grip handheld control.
  • Quickly adjust your setup with the V-Lock battery mount for seamless power integration.
  • Experience comfortable extended shoots using the lightweight Vest Lite with backpack.
  • Safeguard your investment with the included hard case, offering IP67-rated protection.

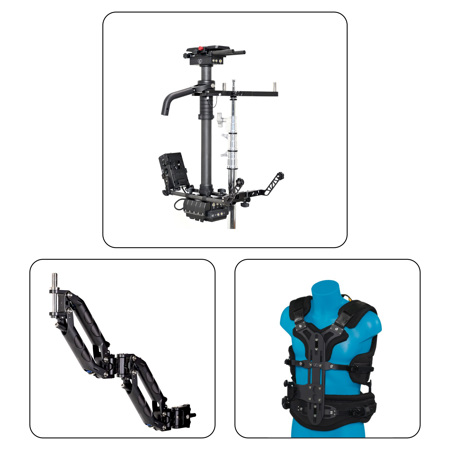

What's in the box:

  • Arm X1 Stabilizer Arm
  • Matrix Sled Pro Stabilizer with V-Lock Battery Mount
  • Vest Lite with Backpack
  • Hard Case
  • SmartSystem 1 Year Limited Warranty
