SmartSystem Matrix One Chimera Bundle with 3-Stud Battery Mount

SKU: SMART8564 MFR: 000008564
Earn VIP Reward Points

Key Features

  • Achieve smooth, professional footage with this complete camera stabilizer bundle!
  • Enjoy versatile shooting with the Matrix Sled Chimera's 3-Stud battery mount.
  • Carry up to 74.9 lbs with the robust Arm X1, crafted from durable aluminum alloy.
  • The lightweight Vest Lite ensures comfortable, extended video shoots on location.
  • Safeguard your SmartSystem gear in the included hard case, certified for protection.
  • Customize your setup with adjustable features for optimal balance and control.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

SmartSystem Matrix One Chimera Bundle with 3-Stud Battery Mount Specifications

Arm X1
  • Material

    Arm: Aluminum alloy like 7075 (Ergal)

  • Boom Range

    28.5" (728mm)

  • Maximum Payload

    74.9 lbs (34kg)

  • Width

    1.77" (45mm)

  • Weight

    9.92 lbs (4.5kg)

Matrix Sled Chimera

Jump to...
  • Mount

    3-Stud Mount

  • Material

    Carbon Fiber

  • Stabilizer Type

    Single-Grip Handheld

  • Camera Mount

    Camera Plate

  • Center Column Diameter

    1.6" (40mm)

  • Number of Sections

    2

  • Power I/O

    2x LEMO 2-Pin (14.8 VDC) Output
    1x LEMO 4-Pin (14.8 VDC) Output

  • Video

    1x BNC Input/Output

  • Counterweights

    10x 8 oz (227g)

  • Battery Info

    Required, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    3

  • Weight

    12.1 lbs (5.5kg)

Vest Lite

Jump to...
  • Material

    Aluminum, Stainless Steel

  • Weight

    6.4 lbs (2.9kg)

Hard Case

Jump to...
  • Compatibility

    SmartCAM Arm & Sled System

  • Material

    Polypropylene

  • Certifications

    IP67
    STANAG 4280
    DEF STAN 81-41 Compliancy

  • Operating Temperature

    -22 to 194 Degree F (-30 to 90 Degree C)

  • Dimensions

    Outer: 32.12 x 21.26 x 12.04" (816 x 540 x 306mm)

  • Weight

    23.8 lbs (10.8kg)

  • UPC Code

    8051411192275

About SmartSystem Matrix One Chimera Bundle with 3-Stud Battery Mount

Find the ultimate solution for your filming needs with the Matrix One Chimera Bundle with 3-Stud Battery Mount. This durable and versatile bundle is designed to support a wide range of applications, thanks to its impressive weight capacity of 12 lbs & up and a maximum load of 66 lbs (30.00 kg).

The Matrix One Chimera Bundle is more than just a sturdy support system. It's a combination of a comfortable harness and a reliable stabilizing system, designed to be worn by the user. This allows for optimal support and stability of your camera or other equipment, such as a microphone or light, while filming or taking photographs.

The bundle is compatible with a universal monitor battery mount and features a gold mount, offering versatility and ease of use with different equipment. It's designed to provide the best performance on gimbals that natively integrate the Volt system, thanks to its M2 gimbal designed by Steadicam.

The Matrix One Chimera Bundle is equipped with a dedicated power line on every Matrix Sled, eliminating vibrations due to insufficient power. It also features an innovative battery management system based on 3-Stud Batteries slots, allowing you to operate +12V or 24V with an extra C-Battery Slots.

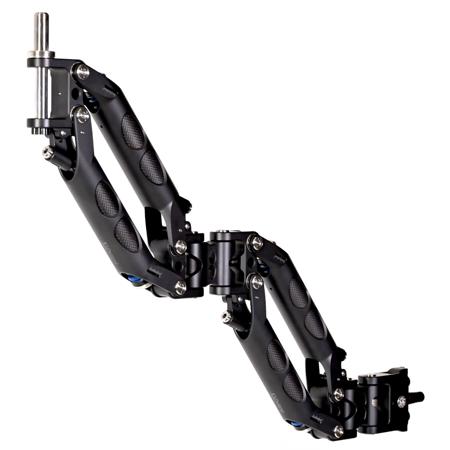

The bundle includes the Arm X1, made from AL7075 Ergal alloy, offering performance similar to that of carbon steel but at a fraction of the weight. It's designed to be reliable and rigid, with plenty of options available. The Arm X1 can lift up to 32kg (70.4 lbs) with a maximum payload of 34kg (74.9 lbs), and has a maximum boom range of 728mm (28.5").

The Vest Lite included in the bundle is engineered around a proven design and made from top-quality materials. It's designed to perfectly adapt to the body, offering maximum comfort for operators. The vest is lightweight, weighing only 2.9kg (6.4lbs), making it one of the lightest vests on the market today.

The Matrix One Chimera Bundle also comes with a hard case, based on Explorer Cases 7745, modified to protect your SMARTCAM ARM (X-LITE or X1) and SMARTCAM SLED (MATRIX series).

In conclusion, the Matrix One Chimera Bundle with 3-Stud Battery Mount is a comprehensive solution for your filming needs, offering durability, versatility, and comfort in one package.

SmartSystem Matrix One Chimera Bundle with 3-Stud Battery Mount Features

  • Arm X1 Features
  • Double section articulated stabilization arm with an ultimate payload of 74.9 lbs (34kg) based on an exclusive Patented Design
  • Extremely light and compact: it's one of the smallest and lightest stabilizer arm in the market (only 1.77" (45mm) of width)
  • Exclusive X-Tune system allows the operator to set up Arm X1 to obtain the correct dynamic response for its needs
  • Completely milled from highest quality Ergal 7075 aluminum, shot peened and hard anodized for ultimate strength and lightness (only 9.92 lbs (4.5kg) in its heavier configuration)
  • Equipped with Patent Pending DynaSpring Technology that dynamically adapt the answer of the springs all over the boom range
  • Perfectly compatible with every type of professional stabilizer Vest or Sled on the market
  • Matrix Sled Chimera Features
  • As for the EXTREME sled, it can be possible to balance the heavier cameras thanks to additional counterbalance weights included
  • The Micrometric non floating head backlash compensated topstage give to you a super stable Camera mount
  • Thanks to the Monitor LCD holder on separate rods it is possible to achieve maximum stiffness and flexibility
  • The Innovative Battery management based on Double 3-Studs Batteries slots let you choose to operate +12V or 24V with an extra C-Battery Slots
  • A 1.575" Carbon fiber Telescopic center post grants the ultimate rigidity of the system defining a total weight of 5.5kgs without counterbalance weights
  • Vest Lite Features
  • Great comfort and perfect fit for operators of any height or weight, male or female
  • Ergonomic and flexible design. Reduced weight: just 6 lbs (2.7kg)
  • Buckle system for quick tighten and release operation
  • Memory foam padding
  • Balanced weight distribution
  • Removable and washable textile parts
  • Standard Arm connector. Compatible with all Professional Arms in the market
  • Transport Bag included
  • Hard Case Features
  • Polypropylene outer case
  • Foam rubber inner padding
  • Transport handle

Product Documents

User Manual

Key Features

  • Achieve smooth, professional footage with this complete camera stabilizer bundle!
  • Enjoy versatile shooting with the Matrix Sled Chimera's 3-Stud battery mount.
  • Carry up to 74.9 lbs with the robust Arm X1, crafted from durable aluminum alloy.
  • The lightweight Vest Lite ensures comfortable, extended video shoots on location.
  • Safeguard your SmartSystem gear in the included hard case, certified for protection.
  • Customize your setup with adjustable features for optimal balance and control.

What's in the box:

  • Arm X1 Stabilizer Arm
  • Matrix Sled Chimera Stabilizer with 3-Stud Mount
  • Vest Lite with Backpack
  • Hard Case
  • SmartSystem 1 Year Limited Warranty
