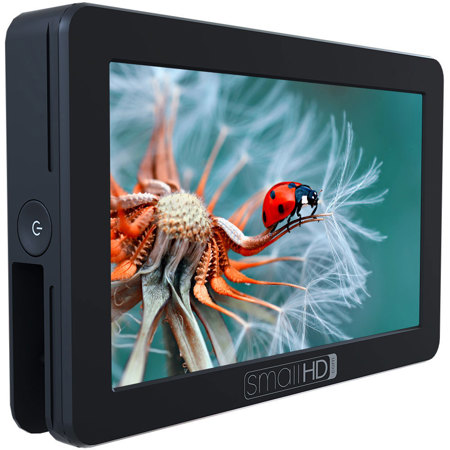

SmallHD FOCUS 5" Touchscreen IPS 720p LED On-Camera Monitor Bundle with NP-FW50 Power Adapter to Sony Camera

SKU: SMFCSN50KIN

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

SmallHD FOCUS 5" 720p LED Monitor Bundle, NP-FW50 Power Adapter to Sony Camera Specifications

Display

Display

Jump to...
  • Panel Type

    IPS Touchscreen

  • Size Diagonal

    5

  • Resolution

    1280x720

  • Pixel Density (PPI)

    294

  • Aspect Ratio

    16:9

  • Active Area

    5.0"

  • Brightness

    800 nits

  • Color Gamut

    70% NTSC

  • Color Depth

    10-bit processing

  • Viewing Angle

    160 Degrees

  • Backlight Type

    White LED

  • Adjustable Backlight

    Yes

  • Temperature Adaptive Color

    No

Input Signal Types/Formats

Jump to...
  • HDMI

    Supports UHD-1 4K at 30/29.97 at RGB 444 8bit, YCC 444 8bit, YCC 422 12 bit & 24/23.98 at RGB 444 10/8 bit, YCC 444 10/8bit, YCC 422 12 bit
    Supports YCC 4:2:2, 8/10/12 bit color in RGB & YCC 4:4:4, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50

  • HDMI (cont.)

    720p120, 720p119.88, 720p/100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p59.94, 480p60, 480p100, 480p119.88, 480p120, 480p239.76, 480p240, 576p50, 576p100, 576p200, 480i59.94, 480i60, 480i119.88, 480i120, 480i239.76, 480i240, 576i50, 576i100, 576i200

  • Audio

    HDMI

Output Signal Types/Formats

Jump to...
  • Audio

    Stereo Out (headphones)

Connector Type

Jump to...
  • HDMI

    1x Micro-HDMI Input

  • Audio

    1/8" Stereo mini-jack

  • Power In

    1x Sony L-Style Battery slot, barrel output for powering cameras via adaptor (NP-FW50 Sony & LP-E6 Canon)

  • Power Out

    Barrel (3.5mm outer, 1.1mm inner)

  • USB

    1x Micro-USB for camera control

Controls

Jump to...
  • Primary Control Interface

    Capacitive Touchscreen

  • Record/Capture

    Capture Tool

Data I/O

Jump to...
  • Storage

    SD Card for Image Capture / Overlay, LUT Loading, Firmware Upgrades

  • Wireless

    Compatible with SmallHD BTR1 Wireless Remote

  • Connector Type

    1x Sony L-Style Battery slot, 1x barrel connector for powering camera

  • Voltage

    6.0 - 8.4V

  • Battery Plate Included

    Sony NPF (L-Series)

  • Recommended Power Supply

    Battery Only Device

  • Overload Protection

    Yes

  • Battery Chemistry

    Li-ion

  • Output Voltage (VDC)

    Mirrors Input Voltage from battery

  • Battery Capacity (mAh)

    2000mAh - 6300mAh

  • Battery Charging Time (hours)

    Monitor does not support the charging of batteries

International Charger Power Supply

Jump to...
  • Connector Type

    Coaxial power plug compatible with SmallHD L-Series and LP-E6 style battery chargers

  • Voltage

    100 - 240 VAC, 50 - 60 Hz

  • Power Consumption

    8W

  • Output Voltage (VDC)

    12VDC

  • Compliance

    FCC, CE, SAA

Software

Jump to...
  • Pixel Zoom (type)

    2x & 4x with smooth pan via pinch zoom gesture

  • Frame Guides

    Yes

  • DSLR Scale

    Canon, Nikon

  • Custom Scale

    Yes

  • Anamorphic De-Squeeze

    Yes

  • Image Rotate(Manual/Automatic)

    Yes

  • Image Flip (Manual/Automatic)

    Manual and Auto Flip

  • Cross Conversion

    Yes

  • Focus Assist (Colors)

    Yes

  • Peaking

    Yes

  • False Color

    Yes

  • Zebra

    Yes - Multiple

  • Waveform

    Yes

  • PIP

    No

  • RGB Parade

    Yes

  • Histogram

    Yes

  • Image Capture

    Yes

  • Custom LUTS

    Yes

  • LUT Creation

    No

  • LUT Downstream

    No

  • LUT Import

    Yes

  • Onion Skinning

    Yes

  • Image Overlay

    Yes

  • Firmware

    User Upgradable via SD card

  • Audio Meters

    Yes

Environmental

Jump to...
  • Mount Points

    3x 1/4-20 thread points (top, bottom, & right side)

  • Compliance

    CE

  • Operating Temperature

    32 to 158 deg. F (0 to 70 deg. C)

  • Dimensions (HxWxD)

    3.3 x .75 x 5.25" (8.38 x 1.91 x 13.34cm)

  • Weight

    3.75 oz (106.31g) without battery
    International Power Supply: 4.8 oz (136.08g) without battery

  • UPC Code

    850324007359

About SmallHD FOCUS 5" 720p LED Monitor Bundle, NP-FW50 Power Adapter to Sony Camera

Professional grade camera-top monitor that can power your Sony mirrorless camera. The FOCUS is sure to add instant production value for mirrorless and DSLR shooters. Its bright display, professional software tools and convenient mounting is invaluable for shooters looking to do more with less gear.

Daylight Viewable 5" Touchscreen
The FOCUS is the camera-top monitor many shooters have been waiting for. With a light and compact form factor, the FOCUS is bright enough to see and sharp enough to pull focus.

• 800 nits bright
• 5-inch, 1280x720 IPS LCD
• More pixels per inch than retina displays
• 2-3x brighter than most camera LCD screens
• More pixels per inch than an iPad with Retina display
• Incredibly simple touchscreen navigation

Big Production Value for Small Camera Setups
The FOCUS is an ideal camera-top monitor for DSLR and mirrorless camera shooters because the Sony L Series battery powering the monitor, can also power the camera. With a battery adapter cable, the FOCUS extends camera run-time as much as 4x, while providing a more useable display.

• Auxiliary power out to DSLR and mirrorless cameras
• Micro HDMI input with port protection
• 1/8 stereo headphone jack
• 6 watt power draw

Access to Professional Features
Introducing Swipe OS: a touch of genius. Waveform, False Color, Focus Assist, 3D LUTs and Pixel Zoom are just a few professional software tools at your finger tips with the SmallHD FOCUS. Thanks to an intuitive user interface we're calling Swipe OS, interacting and managing these powerful tools has never been easier.

Convenient Mounting
Every FOCUS monitor will ship with a cold shoe mounted Tilt Arm. Shooters will have a secure way to position their monitor while maintaining a low profile.

• Allows the FOCUS to tilt 180 degrees for viewing convenience
• Includes a shoe mount of its own for accessories like microphones
• Secure and lightweight mounting via shoe adapter or 1/4"-20
• SmallHD Tilt Arm ships with every FOCUS unit. Attach the FOCUS without the Tilt Arm via three 1/4 20 mounting points (top, bottom, side)

International Battery Charger Power Supply
Includes: EU wall plug UK wall plug Australia/New Zealand Wall plug for use with SmallHD Sony L-Series and Canon LP-E6 style battery chargers. (Battery charger includes US plug).

What's in the box:

  • SmallHD FOCUS 5" Touchscreen IPS 720p LED On-Camera Monitor
  • FOCUS Tilt Arm
  • 12" Thin Micro-HDMI Type-D to Micro-HDMI Type-D Cable
  • FOCUS to Sony NP-FW50 Power Adapter
  • Sony NPF L-Series Battery and Charger
  • International Battery Charger Power Supply with EU/UK/AU Plug Adapters
  • 12" Micro-USB Male Cable
  • SmallHD 1 Year Limited Warranty
