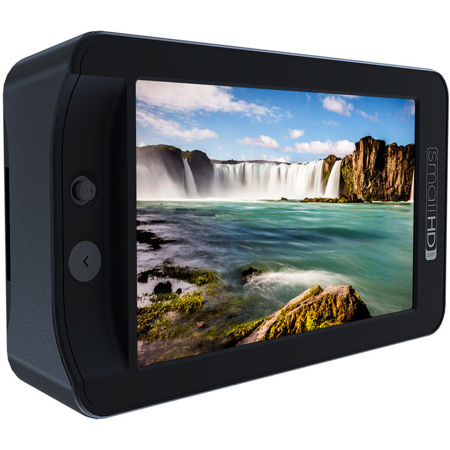

SmallHD 502 Bright 5" Full HD Daylight Viewable LED Monitor Bundle
See all SmallHD items

SmallHD 502 Bright 5" Full HD Daylight Viewable LED Monitor Bundle, Includes Bumper, FOCUS Tilt Arm and Hard Case

SKU: SMM502BKIT1
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
SmallHD Indie 5 5" 16:9 Full HD Touchscreen On-Camera Monitor
$1,299.00
undefined undefined: Picture 1 regular
SmallHD Indie 5 5" 16:9 FHD Touch On-Camera Monitor,w/Adapter, 18" Control Cable
$1,542.97
undefined undefined: Picture 1 regular
SmallHD Ultra 5 5" 16:9 Full HD Touchscreen On-Camera Monitor
$2,249.00
$1,699.00
undefined undefined: Picture 1 regular
SmallHD Ultra 5 5" 16:9 FHD Touch On-Camera Monitor w/Bolt 6 750 Rx, Gold Mount
$3,549.00
$2,699.00
undefined undefined: Picture 1 regular
SmallHD Ultra 5 5" 16:9 FHD Touch On-Camera Monitor with Bolt 6 750 Rx, V-Mount
$3,549.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

SmallHD 502 Bright 5" Full HD Daylight Viewable LED Monitor Bundle Specifications

Display

Display

Jump to...

  • Panel Type

    LCD

  • Size Diagonal

    5"

  • Resolution

    1920 x 1080

  • Pixel Density (PPI)

    441

  • Aspect Ratio

    16:9

  • Active Area

    5" (127mm)

  • Brightness

    1000nits

  • Contrast

    1500:1

  • Color Gamut

    100% Rec 709

  • Color Depth

    10-bit Color Processing

  • Viewing Angle

    Full 179 degrees

  • Backlight Type

    LED

Input Signal Types/Formats

Jump to...

  • 3G-SDI

    1080p50, 1080p59.94, 1080p60, 1080i100, 1080i119.88, 1080i120

  • HD-SDI

    1080i60,1080i59.94,1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080pSF25, 1080pSF24, 1080pSF23.98, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

  • SD-SDI

    576i50,480i59.94

  • HDMI

    Supports YCC 4:2:2, 8/10/12 bit color in RGB & YCC 4:4:4, 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 . Supports YCC 4:2:2, 8/10/12/16 bit color in RGB & YCC 4:4:4, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p/100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p59.94, 480p60, 480p100, 480p119.88, 480p120, 480p239.76, 480p240, 576p50, 576p100, 576p200, 480i59.94, 480i60, 480i119.88

  • HDMI (Cont.)

    480i120, 480i239.76, 480i240, 576i50, 576i100, 576i200

  • Audio

    HDMI and SDI

Output Signal Types/Formats

Jump to...

  • 3G-SDI

    1080p50, 1080p59.94, 1080p60, 1080i100, 1080i119.88, 1080i120

  • HD-SDI

    1080i60,1080i59.94,1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080pSF25, 1080pSF24, 1080pSF23.98, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

  • SD-SDI

    576i50,480i59.94

  • HDMI

    Supports YCC 4:2:2, 8/10/12 bit color in RGB & YCC 4:4:4, 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 . Supports YCC 4:2:2, 8/10/12/16 bit color in RGB & YCC 4:4:4, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p/100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p59.94, 480p60, 480p100, 480p119.88, 480p120, 480p239.76, 480p240, 576p50, 576p100, 576p200, 480i59.94, 480i60, 480i119.88

  • HDMI (Cont.)

    480i120, 480i239.76, 480i240, 576i50, 576i100, 576i200

  • Audio

    Stereo Out (headphones)

Connector Type

Jump to...

  • SDI

    1 SDI (in), 1 SDI (out - selectable)

  • HDMI

    1 HDMI (in), 1 HDMI (out - selectable)

  • Audio

    1/8" Mini Stereo Headphone

  • Power In

    LP-E6 style Battery X 2

  • Power Out

    Micro-USB 5V at .5A

  • USB

    Micro-USB 5V at .5A

Controls

Jump to...

  • Primary Control Interface

    Joystick + "Back" button

  • Record/Capture

    Capture button

  • RF Wireless Remote / External Control

    Wireless remote

Data I/O

Jump to...

  • Storage

    SD Card (full-size)

  • USB

    Self Color Calibration

Power

Jump to...

  • Connector Type

    LP-E6 Style

  • Voltage

    6.0 - 8.4V

  • Power Consumption

    7-9W

  • Overload Protection

    Yes

  • Battery Types

    LP-E6

Software

Jump to...

  • Pixel Zoom (type)

    2x & 4x with smooth pan via joystick

  • Frame Guides

    Yes

  • DSLR Scale

    Canon, Nikon

  • Custom Scale

    Yes

  • Anamorphic De-Squeeze

    Yes

  • Image Rotate(Manual/Automatic)

    Yes

  • Image Flip (Manual/Automatic)

    Yes

  • Cross Conversion

    Yes

  • Focus Assist (Colors)

    Yes

  • Peaking

    Yes

  • False Color

    Yes: ARRI, Custom

  • Zebra

    Yes: Multiple

  • Waveform

    Yes

  • Vectorscope

    Yes

  • PIP

    No

  • RGB Parade

    Yes

  • Histogram

    Yes

  • Horizon Indicator

    No

  • Image Capture

    Yes

  • Custom LUTS

    Yes

  • LUT Creation

    No

  • LUT Downstream

    Yes

  • LUT Import

    Yes

  • Image Overlay

    Yes

  • Blue Only

    No

  • Audio Meters

    Yes

Environmental

Jump to...

  • Compliance

    CE, FCC, IC

  • Operating Temperature

    30 to 85 deg. F (-1 to 29 deg. C)

  • Storage Temperature

    0 to 120 deg. F (-18 to 49 deg. C)

  • Mount Points

    (3) 1/4-20 thread points (bottom, back & right side)

DCA5 LP-E6 to D-Tap Adapter

Jump to...

  • Cable Ends

    Faux LP-E6, D-Tap to Male Barrel (5.5 x 2.1mm)

  • Pin Out

    Center Pin is Positive

Cable

Jump to...

  • Compliance

    ROHS

  • Length

    48" (121.92cm)

  • Outer Diameter

    2.75mm (0.11")

  • Cable Ends

    Male BNC, Male BNC

General

Jump to...

  • Dimensions

    Monitor (WxHxD): 5.8 x 2.9 x 0.8" (147.32 x 73.66 x 20.32mm)
    DCA5 LP-E6 to D-Tap Adapter (WxHxD): 1.5 x 2.25 x 1" (38.10 x 57.15 x 25.40mm)
    Medium Hard Case:
    Interior: 9.6 x 7.4 x 4.0" (243.84 x 187.96 x 101.60mm)
    Exterior: 10.8 x 9.9 x 4.9" (274.32 x 251.46 x 124.46mm)

  • Weight

    Monitor without battery: 9.4 oz (266.49g)
    Medium Hard Case (without battery): 39.2 oz (1111.30g)
    Cable (without battery): 1.6 oz (45.36g)

About SmallHD 502 Bright 5" Full HD Daylight Viewable LED Monitor Bundle

502 Bright Full HD On-Camera Monitor
The compact and daylight viewable 5-inch monitor with HDMI/SDI Cross Conversion. It's bright, it's nimble and perfect for your gimbal. New 5-inch daylight viewable monitors that are easy to rig.

• 1920 x 1080 resolution
• 1000 nits bright
• 441 pixels per inch
• 3x 1/4-20 mounting points
• Machined aluminum chassis
• 9.4 ounces light
• 2x LP-E6 battery slots
• HDMI + SDI Cross Conversion
• 9 watt power draw

Tack Sharp and Tactfully Designed
Boasting a screen resolution of 1920x1080, the 502 Bright is one of the sharpest 5-inch displays in the world. It's convenient size and display brightness make it easy to see what's in focus, even in high ambient lighting conditions.

Lean and Rugged Build Quality
The 502 Bright offers extreme durability without being exceedingly heavy. Housed in an aircraft grade aluminum unibody with plenty of mounting points, this 5-inch monitor is ruggedly handsome and beautifully designed.

Quality Tools with Quick Accessibility
With real-time 3D LUTs, Scopes, Waveform, False Color and Focus Assist/Peaking, the 502 Bright is equipped with SmallHD's premium tool set and Page Builder operating system. Data driven software tools become easy to access with an intuitive user experience.

502 Bright Bumper
• Removable heat guard for added protection and rigidity
• Easily grip the 502 Bright as the monitor dissipates heat
• To be used when handling the 502 Bright
• Adds a level of protection and rigidity

FOCUS Tilt Arm
• Friction based shoe mount to side 1/4" 20 mounting accessory
• Convenient and secure camera-top mount with 180 degrees of tilt

Faux LP-E6 Battery and 36" D-Tap to Barrel Connector Cable
• Wide Voltage DC Power Adapter with D-Tap to Barrel Power Cable
• Uses system power, requiring less battery changes during a shoot
• Draws power from the D-Tap/P-Tap output on a pro battery system like Anton Bauer / IDX / Blueshape
• Powers devices designed to use Canon LP-E6 style batteries
• Connectors on both ends latch into place & resist accidental disconnection

Medium Hard Case
• Pick-apart foam insert - fully customizable
• Air/water tight
• Automatic pressure purge system
• Molded-in padlock holes (fits standard size Masterlocks)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Request a Callback

Chat one-on-one with an expert

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • SmallHD 502 Bright Full HD On-Camera Field Monitor
  • 502 Bright Bumper
  • Focus Tilt Arm
  • DCA5 LP-E6 to D-Tap Adapter
  • Medium Hard Case
  • Microfiber Cleaning Cloth
  • 48 " Thin BNC Cable
  • Ultra Matte Screen Protector
  • SmallHD 1 Year Limited Warranty
