Questions & Answers

FAQ

What is the resolution of the 702 Touch 7" Full HD On-Camera LCD Touchscreen Monitor?

The 702 Touch 7" Full HD On-Camera LCD Touchscreen Monitor has a Full HD resolution of 1920x1200, providing clear and detailed images.

Is the 702 Touch 7" Full HD On-Camera LCD Touchscreen Monitor suitable for outdoor use?

Yes, the 702 Touch 7" Full HD On-Camera LCD Touchscreen Monitor is suitable for outdoor use. It has a high brightness of 1500 nits, making it easily viewable in daylight conditions.

What input options does the 702 Touch 7" Full HD On-Camera LCD Touchscreen Monitor have?

The 702 Touch 7" Full HD On-Camera LCD Touchscreen Monitor is equipped with dual 3G SDI inputs and HDMI/SDI cross-conversion capabilities, allowing it to connect to a variety of devices.

What software does the 702 Touch 7" Full HD On-Camera LCD Touchscreen Monitor use?

The 702 Touch 7" Full HD On-Camera LCD Touchscreen Monitor uses SmallHD's advanced OS3 software, which provides industry-leading imaging tools and a streamlined user experience.

Does the 702 Touch 7" Full HD On-Camera LCD Touchscreen Monitor come with any accessories?

Yes, the 702 Touch 7" Full HD On-Camera LCD Touchscreen Monitor comes with a SmallHD Gimbal Accessory Pack for the FOCUS 7 Monitor, which can be used for stable and flexible mounting.

Shopper : Why Did You Choose This?CORY L : nice size and very reliable and brightSTEVEN B : Quality itemmichael m : bloom review

Reviews about this item

Review Summary

2022-11-03T07:17:56

Rated 5 out of 5

Great monitor - price and big, but really high quality

Love this monitor?has all of the things I need including customization. It?s a high quality product - pricey, but gives me confidence in pulling focus. It?s big, but for shooting on a tripod it?s great. I love that the kit includes a battery and cables needed.

MICHAEL S.

2022-07-03T12:11:22

Rated 5 out of 5

Best 7? monitor in its class

Met my expectations - and exceeded it. Bright, clear, sharp and easy to use the menus. I love this monitor!

ALAN F.

2021-05-27T10:07:52

Rated 5 out of 5

Amazing

Amazing product, used everyday since i made my purchase. Small HD is a great investment, and an amazing addition to your gear

BRYCE B.

2020-07-01T17:48:17

Rated 5 out of 5

I'm on board with this great tool!

I love this external monitor. The color is great. Can load luts into it for preview. Focus assist. Exposure assist. You can make them separate screens to swipe across or make them touch on and off on one screen, or both. I like having one screen have all of them. You could also have different luts on different screens, etc. Very customizable. The touch screen is very responsive. It feels like a solid piece of equipment. Lighter than expected. Can use two sony L batteries. 1 HDMI in. 1 HDMI out. 4 camera attachments (bottom, 2 sides, 1 back). 1 button to turn on and off, hold to turn off. Box includes: two branded microfiber cloths, 1 screen protector (hard to put on so be careful), and monitor. No batteries. No HDMI cable. No attachment. I recommend the two screw attachment found on the Falcon Eyes F7 LED lights (amazon). Fantastic light as well! Make sure to get a micro HDMI for your camera to regular HDMI for the SmallHD. I bought on sale for $899, so look for that deal. Otherwise, I would fully recommend this product even at the regular price. Also owned by Vitec, who also owns Sachtler, among other fantastic camera gear.

RYAN H.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

SmallHD 702 Touch Specifications

Display

Display

Jump to...
  • Panel Type

    IPS-Type LCD

  • Display Size

    7.0"

  • Active Area

    5.95 x 3.72"

  • Screen Resolution

    1920 x 1200

  • Aspect Ratio

    16:10

  • Viewing Angle

    Horizontal: 179deg.

  • Touchscreen

    Yes

  • Maximum Brightness

    1500 cd/m2

  • Contrast Ratio

    1000:1

  • Bit Depth / Color Support

    8-Bit (16.7 Million Colors)

  • Pixels Per Inch (ppi)

    32 ppi

  • Color Gamut

    100% DCI-P3

  • Image Controls

    Anamorphic De-Squeeze, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Underscan, Waveform

  • Video

    1x BNC (3G-SDI) Output
    1x BNC (3G-SDI) Input/Output
    1x HDMI Type A Output
    1x HDMI Type A Input

  • Embedded Audio

    HDMI
    SDI

  • Audio

    1x 3.5mm Headphone Output

  • Built-In Speaker

    No

  • Power

    1x 5.5mm Barrel (34 VDC) Output

  • Other I/O

    1x USB 2.0 (Micro-USB)

  • Card Slot

    1x SD

Format Support

Jump to...
  • Video Format

    SDI (10-Bit 4:2:2 YCC):

    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080PsF: 30/29.97/25/24/23.98
    1080i: 120/119.88/100/60/59.94/50
    720p: 60/59.94/50/30/29.97/25/24/23.98
    NTSC: 59.94
    PAL

    HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC):

    1080p: 60/59.94/50/30/29.97/25/24/23.98
    720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
    576p: 200/100/50
    480p: 240/239.76/120/119.88/60/59.94
    PAL: 200/100/50
    NTSC: 240/239.76/120/119.88/60/59.94

  • DC Input Power

    6 to 16.8 VDC

  • Battery Type

    1x L-Series, V-Mount, or Gold Mount (Interchangeable Mount)

  • Power Consumption

    17W (Maximum)

Mounting

Jump to...
  • Mounting

    4x 1/4"-20 Female

Software

Jump to...
  • Pixel Zoom (type)

    1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom

  • Frame Guides

    Preset Aspect Ratios & Customizable

  • DSLR Scale

    Canon 5DMkii & Canon 7D

  • Custom Scale

    Yes (Underscan Only)

  • Anamorphic De-Squeeze

    0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x

  • Image Rotate(Manual/Automatic)

    Automatic or Manual Control

  • Image Flip (Manual/Automatic)

    Automatic or Manual Control

  • Cross Conversion

    Yes: HDMI to SDI & SDI to HDMI

  • Focus Assist (Colors)

    User Adjustable Color Style and Intensity

  • Peaking

    User Adjustable Intensity

  • False Color

    Rainbow, Arri Style, Custom with up to 10 nodes

  • Zebra

    Dual - User Configurable

  • Waveform

    Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting

  • Vectorscope

    Yes

  • RGB Parade

    Fully User Customizable

  • Histogram

    Luma & RGB Style

  • Image Capture

    Yes

  • Custom LUTS

    Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu

  • LUT Downstream

    Available on SDI or HDMI Out. Applied on Output Preview Page.

  • LUT Import

    Via SD Card or USB Storage Device

  • Image Overlay

    With Opacity Slider and Blink Setting

  • Audio Meters

    HDMI & SDI up to 8 channel

Environmental

Jump to...
  • Certifications

    CE, FCC, IC, RoHS, as per Manufacturer

  • Operating Temperature

    -1 to 37 deg. C (30 to 99 deg. F)

  • Storage Temperature

    0 to 120 deg. F (-18 to 49 deg. C)

General

Jump to...
  • Material of Construction

    Aluminum

  • Dimensions (WxHxD)

    7.09 x 4.67 x 1.29" (18.01 x 11.86 x 3.28cm)

  • Weight

    18.9 oz (535.81g)

  • UPC Code

    192223100350

14 Accessories for SmallHD 702 Touch 7" Full HD On-Camera LCD Touchscreen Monitor, 1500 nits Brightness, 1920x1200 - With SmallHD Gimbal Accessory Pack for FOCUS 7 Monitor

  • All Accessories (14)
  • Batteries & Power Supply (8)
  • Brackets & Mounts (2)
  • Headphones (4)

About SmallHD 702 Touch

FEATURED REVIEWS

Great monitor - price and big, but really high quality

By MICHAEL S.

Love this monitor?has all of the things I need including customization. It?s a high quality product - pricey, but gives me confidence in pulling focus. It?s big, but for shooting on a tripod it?s great. I love that the kit includes a battery and cables needed.

Best 7? monitor in its class

By ALAN F.

Met my expectations - and exceeded it. Bright, clear, sharp and easy to use the menus. I love this monitor!

Why settle for anything less than professional-grade clarity and control in your on-camera monitoring The 702 Touch 7" Full HD On-Camera LCD Touchscreen Monitor is a high-quality, durable, and innovative solution for creative professionals who demand precision and reliability.

Experience Simply Stunning Visuals: Boasting a full HD resolution of 1920x1200, the 702 Touch delivers crystal-clear images with 100% DCI-P3 color accuracy, ensuring true-to-life color reproduction that meets the rigorous standards of color professionals. The monitor's impressive 1500 nits brightness makes it easily viewable in daylight conditions, providing consistent performance whether you're shooting indoors or out.

Rugged and User-Friendly Design: Constructed to withstand the rigors of full-time use, the 702 Touch is ruggedly built without compromising on portability. Its user-friendly touchscreen interface allows for intuitive control and quick adjustments, making it an indispensable tool for directors, camera operators, and cinematographers alike.

Ultimate Versatility with Flexible Signal Options: The 702 Touch is equipped with dual 3G SDI inputs and HDMI/SDI cross-conversion capabilities, allowing for seamless integration into any production setup. With the added convenience of DC power input and compatibility with Sony L Series batteries (with Gold and V-Mount options available), this monitor is designed to adapt to your power needs on the go.

Data-Driven Confidence with SmallHD OS3: Powered by SmallHD's advanced OS3 software, the 702 Touch provides industry-leading imaging tools and a streamlined user experience. Customize your scopes, waveforms, and false color settings to suit your preferences, and apply real-time 3D LUTs with ease. This powerful, data-driven toolset saves time and enhances your confidence in every shot.

Enhanced Stability with Gimbal Accessory Pack: The included SmallHD Gimbal Accessory Pack for the FOCUS 7 Monitor ensures stable and flexible mounting options, making it an ideal choice for dynamic shooting scenarios that require smooth, stabilized footage.

Choose the 702 Touch 7" Full HD On-Camera LCD Touchscreen Monitor for its unparalleled resolution, color fidelity, and versatile connectivity options. It's the perfect companion for professionals who need a portable, high-performance monitor that keeps up with the demands of modern filmmaking and photography.

SmallHD 702 Touch Features

  • 7" Full HD 1920x1200 resolution for crystal-clear on-camera monitoring
  • Daylight viewable with an impressive 1500 nits brightness and 100% DCI-P3 color accuracy
  • Rugged, portable design with user-friendly touchscreen interface
  • Dual 3G SDI inputs and HDMI/SDI cross-conversion for versatile connectivity
  • SmallHD OS3 software with customizable scopes, waveforms, and real-time 3D LUTs
  • Includes SmallHD Gimbal Accessory Pack for stable, flexible FOCUS 7 Monitor mounting

Key Features

  • 7" Full HD 1920x1200 resolution for crystal-clear on-camera monitoring
  • Daylight viewable with an impressive 1500 nits brightness and 100% DCI-P3 color accuracy
  • Rugged, portable design with user-friendly touchscreen interface
  • Dual 3G SDI inputs and HDMI/SDI cross-conversion for versatile connectivity
  • SmallHD OS3 software with customizable scopes, waveforms, and real-time 3D LUTs
  • Includes SmallHD Gimbal Accessory Pack for stable, flexible FOCUS 7 Monitor mounting

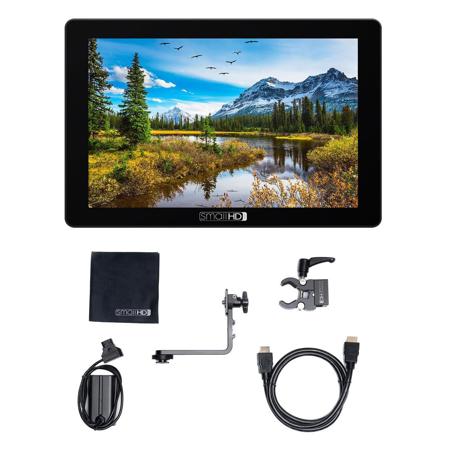

What's in the box:

  • SmallHD 702 Touch 7 " Full HD On-Camera LCD Touchscreen Monitor
  • Sony L Series Battery Bracket
  • 702 Touch/Cine 7 UltraClear Screen Protector
  • 8GB SD Card
  • Cleaning Cloth
  • SmallHD 1 Year Warranty
  • SmallHD Gimbal Accessory Pack for FOCUS 7 Monitor
