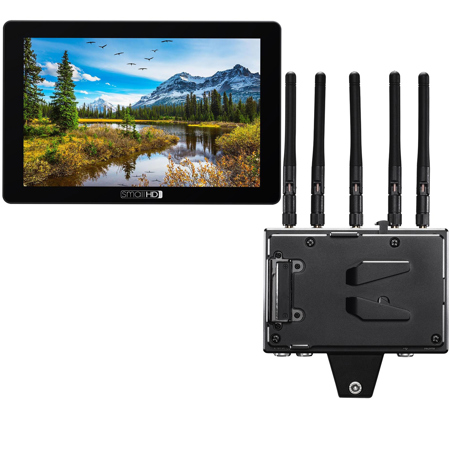

SmallHD 702 Touch 7" Monitor with Teradek Bolt 4K RX Monitor Module, V-Mount
See all SmallHD items

SmallHD 702 Touch 7" On-Camera LCD Touchscreen Monitor, 1500 nits Brightness, 1920x1200 with Teradek Bolt 4K RX Monitor Module, V-Mount

SKU: SMMN702TOUCF
(4)

This item is no longer available.

Recommended Alternatives

SmallHD Indie 5: Picture 1 regular
SmallHD Indie 5 5" 16:9 Full HD Touchscreen On-Camera Monitor
$1,299.00
SmallHD Ultra 5 with Receiver: Picture 1 regular
SmallHD Ultra 5 5" 16:9 FHD Touch On-Camera Monitor w/Bolt 6 750 Rx, Gold Mount
$3,549.00
SmallHD Ultra 5 with Receiver: Picture 1 regular
SmallHD Ultra 5 5" 16:9 FHD Touch On-Camera Monitor with Bolt 6 750 Rx, V-Mount
$3,549.00
SmallHD Ultra 5: Picture 1 regular
SmallHD Ultra 5 5" 16:9 FHD Touchscreen On-Camera Monitor w/Bolt 6 750 Tx Module
$3,349.00$3,299.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2022-11-03T07:17:56

Rated 5 out of 5

Great monitor - price and big, but really high quality

Love this monitor?has all of the things I need including customization. It?s a high quality product - pricey, but gives me confidence in pulling focus. It?s big, but for shooting on a tripod it?s great. I love that the kit includes a battery and cables needed.

MICHAEL S.

2022-07-03T12:11:22

Rated 5 out of 5

Best 7? monitor in its class

Met my expectations - and exceeded it. Bright, clear, sharp and easy to use the menus. I love this monitor!

ALAN F.

2021-05-27T10:07:52

Rated 5 out of 5

Amazing

Amazing product, used everyday since i made my purchase. Small HD is a great investment, and an amazing addition to your gear

BRYCE B.

2020-07-01T17:48:17

Rated 5 out of 5

I'm on board with this great tool!

I love this external monitor. The color is great. Can load luts into it for preview. Focus assist. Exposure assist. You can make them separate screens to swipe across or make them touch on and off on one screen, or both. I like having one screen have all of them. You could also have different luts on different screens, etc. Very customizable. The touch screen is very responsive. It feels like a solid piece of equipment. Lighter than expected. Can use two sony L batteries. 1 HDMI in. 1 HDMI out. 4 camera attachments (bottom, 2 sides, 1 back). 1 button to turn on and off, hold to turn off. Box includes: two branded microfiber cloths, 1 screen protector (hard to put on so be careful), and monitor. No batteries. No HDMI cable. No attachment. I recommend the two screw attachment found on the Falcon Eyes F7 LED lights (amazon). Fantastic light as well! Make sure to get a micro HDMI for your camera to regular HDMI for the SmallHD. I bought on sale for $899, so look for that deal. Otherwise, I would fully recommend this product even at the regular price. Also owned by Vitec, who also owns Sachtler, among other fantastic camera gear.

RYAN H.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

SmallHD 702 Touch Specifications

Display

Display

Jump to...

  • Panel Type

    IPS-Type LCD

  • Display Size

    7.0"

  • Active Area

    5.95 x 3.72"

  • Screen Resolution

    1920 x 1200

  • Aspect Ratio

    16:10

  • Viewing Angle

    Horizontal: 179deg.

  • Touchscreen

    Yes

  • Maximum Brightness

    1500 cd/m2

  • Contrast Ratio

    1000:1

  • Bit Depth / Color Support

    8-Bit (16.7 Million Colors)

  • Pixels Per Inch (ppi)

    32 ppi

  • Color Gamut

    100% DCI-P3

  • Image Controls

    Anamorphic De-Squeeze, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Underscan, Waveform

I/O

Jump to...

  • Video

    1x BNC (3G-SDI) Output
    1x BNC (3G-SDI) Input/Output
    1x HDMI Type A Output
    1x HDMI Type A Input

  • Embedded Audio

    HDMI
    SDI

  • Audio

    1x 3.5mm Headphone Output

  • Built-In Speaker

    No

  • Power

    1x 5.5mm Barrel (34 VDC) Output

  • Other I/O

    1x USB 2.0 (Micro-USB)

  • Card Slot

    1x SD

Format Support

Jump to...

  • Video Format

    SDI (10-Bit 4:2:2 YCC):

    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080PsF: 30/29.97/25/24/23.98
    1080i: 120/119.88/100/60/59.94/50
    720p: 60/59.94/50/30/29.97/25/24/23.98
    NTSC: 59.94
    PAL

    HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC):

    1080p: 60/59.94/50/30/29.97/25/24/23.98
    720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
    576p: 200/100/50
    480p: 240/239.76/120/119.88/60/59.94
    PAL: 200/100/50
    NTSC: 240/239.76/120/119.88/60/59.94

Power

Jump to...

  • DC Input Power

    6 to 16.8 VDC

  • Battery Type

    1x L-Series, V-Mount, or Gold Mount (Interchangeable Mount)

  • Power Consumption

    17W (Maximum)

Mounting

Jump to...

  • Mounting

    4x 1/4"-20 Female

Software

Jump to...

  • Pixel Zoom (type)

    1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom

  • Frame Guides

    Preset Aspect Ratios & Customizable

  • DSLR Scale

    Canon 5DMkii & Canon 7D

  • Custom Scale

    Yes (Underscan Only)

  • Anamorphic De-Squeeze

    0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x

  • Image Rotate(Manual/Automatic)

    Automatic or Manual Control

  • Image Flip (Manual/Automatic)

    Automatic or Manual Control

  • Cross Conversion

    Yes: HDMI to SDI & SDI to HDMI

  • Focus Assist (Colors)

    User Adjustable Color Style and Intensity

  • Peaking

    User Adjustable Intensity

  • False Color

    Rainbow, Arri Style, Custom with up to 10 nodes

  • Zebra

    Dual - User Configurable

  • Waveform

    Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting

  • Vectorscope

    Yes

  • RGB Parade

    Fully User Customizable

  • Histogram

    Luma & RGB Style

  • Image Capture

    Yes

  • Custom LUTS

    Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu

  • LUT Downstream

    Available on SDI or HDMI Out. Applied on Output Preview Page.

  • LUT Import

    Via SD Card or USB Storage Device

  • Image Overlay

    With Opacity Slider and Blink Setting

  • Audio Meters

    HDMI & SDI up to 8 channel

Environmental

Jump to...

  • Certifications

    CE, FCC, IC, RoHS, as per Manufacturer

  • Operating Temperature

    -1 to 37 deg. C (30 to 99 deg. F)

  • Storage Temperature

    0 to 120 deg. F (-18 to 49 deg. C)

General

Jump to...

  • Material of Construction

    Aluminum

  • Dimensions (WxHxD)

    7.09 x 4.67 x 1.29" (18.01 x 11.86 x 3.28cm)

  • Weight

    18.9 oz (535.81g)

Other

Jump to...

  • UPC Code

    192223205741

About SmallHD 702 Touch

FEATURED REVIEWS

Great monitor - price and big, but really high quality

By MICHAEL S.

Love this monitor?has all of the things I need including customization. It?s a high quality product - pricey, but gives me confidence in pulling focus. It?s big, but for shooting on a tripod it?s great. I love that the kit includes a battery and cables needed.

Best 7? monitor in its class

By ALAN F.

Met my expectations - and exceeded it. Bright, clear, sharp and easy to use the menus. I love this monitor!

7-inch Daylight Viewable On-Camera Monitor with DCI-P3 Color, Ruggedly built SDI/HDMI touchscreen with 1500 nits brightness
The 702 Touch is an absolute workhorse monitor for full-time creative professionals. It's extremely durable without adding bulk, it's daylight viewable without consuming enormous amounts of power and it's 100% DCI-P3 color accurate. With flexible signal options and world-class software tools, the 702 Touch offers ultimate versatility.

Simply Stunning Display
The 702 Touch is the perfect blend of brightness, resolution, color reproduction and power efficiency. Whether in studio or in full sun, the image on this 7-inch touchscreen monitor is simply beautiful. The 702 Touch on-camera monitor combines reliability with usability.

Flexible Signal and Power Options
With two 3G SDI inputs, HDMI/SDI cross-conversion, DC power input and Sony L Series battery bracket (Gold and V-Mount available), the 702 Touch is adaptable to any workflow, large and small.

Data-driven Confidence
SmallHD OS3 software gives Operators, AC's, DIT's and Directors industry leading imaging tools and a simplified user experience. Customize Scopes, Waveforms and False Color how you desire. Apply real-time 3D LUTs quickly and easily. Save time and be more confident creating with this powerful, data-driven tool set.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Request a Callback

Chat one-on-one with an expert

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • SmallHD 702 Touch 7" On-Camera LCD Touchscreen Monitor
  • Teradek Bolt 4K RX Monitor Module for 702 Touch (V-Mount)
  • Sony L Series Battery Bracket
  • 702 Touch/Cine 7 UltraClear Screen Protector
  • 8GB SD Card
  • Cleaning Cloth
  • SmallHD 1 Year Warranty
