SmallHD FOCUS 5" Top Monitor Bundle for BlackMagic Pocket Cinema Camera 4K

SKU: SMMOFCSBMCBA

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

SmallHD FOCUS 5" Top Monitor Bundle for BlackMagic Pocket Cinema Camera 4K Specifications

Display

Display

Jump to...
  • Panel Type

    IPS Touchscreen

  • Resolution

    1280x720

  • Pixel Density (PPI)

    294

  • Aspect Ratio

    16:9

  • Active Area

    5.0"

  • Brightness

    800 nits

  • Color Gamut

    70% NTSC

  • Color Depth

    10-bit processing

  • Viewing Angle

    160 Degrees

  • Backlight Type

    White LED

  • Temperature Adaptive Color

    No

Input Signal Types/Formats

Jump to...
  • HDMI

    Supports YCC 4:2:2, 8/10/12 bit color in RGB & YCC 4:4:4, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p/100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p59.94, 480p60, 480p100, 480p119.88, 480p120, 480p239.76, 480p240, 576p50, 576p100, 576p200, 480i59.94, 480i60, 480i119.88, 480i120, 480i239.76, 480i240, 576i50, 576i100, 576i200

  • Audio

    HDMI

Output Signal Types/Formats

Jump to...
  • Audio

    Stereo Out (headphones)

Connector Type

Jump to...
  • HDMI

    1x Micro-HDMI Input

  • Audio

    1/8" Stereo mini-jack

  • Power In

    1x Sony L-Style Battery slot, barrel output for powering cameras via adaptor (NP-FW50 Sony & LP-E6 Canon)

  • Power Out

    Barrel (3.5mm outer, 1.1mm inner)

  • USB

    1x Micro-USB for camera control

Controls

Jump to...
  • Primary Control Interface

    Capacitive Touchscreen

  • Record/Capture

    Capture Tool

Data I/O

Jump to...
  • Storage

    SD Card for Image Capture / Overlay, LUT Loading, Firmware Upgrades

  • Wireless

    Compatible with SmallHD BTR1 Wireless Remote

  • Connector Type

    1x Sony L-Style Battery slot, 1x barrel connector for powering camera

  • Voltage

    6.0 - 8.4V

  • Recommended Power Supply

    Battery Only Device

  • Overload Protection

    Yes

  • Battery Chemistry

    Li-ion

  • Output Voltage (VDC)

    Mirrors Input Voltage from battery

  • Battery Capacity (mAh)

    2000mAh - 6300mAh

  • Battery Charging Time (hours)

    Monitor does not support the charging of batteries

Environmental

Jump to...
  • Compliance

    CE

  • Operating Temperature

    32 to 158 deg. F (0 to 70 deg. C)

  • Mount Points

    (3) 1/4-20 thread points (top, bottom, & right side)

Software

Jump to...
  • Pixel Zoom (type)

    2x & 4x with smooth pan via joystick

  • Frame Guides

    Preset Aspect Ratios & Customizable

  • DSLR Scale

    Canon 5DMkii & Canon 7D

  • Custom Scale

    Underscan Only

  • Anamorphic De-Squeeze

    1.33x, 1.5x, 1.66x, 2.0x

  • Image Rotate(Manual/Automatic)

    Automatic or Manual Control

  • Image Flip (Manual/Automatic)

    Automatic or Manual Control

  • Cross Conversion

    Yes

  • Focus Assist (Colors)

    User Adjustable Color Style and Intensity

  • Peaking

    User Adjustable Intensity

  • False Color

    Spectrum, Arri Style and Fully User Customizable

  • Zebra

    Dual - User Configurable

  • Waveform

    Luma & RGB Style, Fully User Customizable with Region of Interest Highlighting

  • Vectorscope

    Yes

  • PIP

    No

  • RGB Parade

    Fully User Customizable

  • Histogram

    Luma & RGB Style

  • Horizon Indicator

    No

  • Image Capture

    With Dedicated Button and Image Gallery

  • Custom LUTS

    Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu

  • LUT Creation

    No

  • LUT Downstream

    Applied on Output Preview Page

  • LUT Import

    Via SD Card or USB Storage Device

  • Image Overlay

    Opacity Slider and Blink Setting

  • Blue Only

    No

  • Audio Meters

    Up to 8 channel

General

Jump to...
  • Height

    3.3" (8.38cm)

  • Width

    0.75" (1.91cm)

  • Depth/Length

    5.25" (13.34cm)

  • Weight

    3.75 oz (106.31g) (without battery)

  • UPC Code

    192223090996

About SmallHD FOCUS 5" Top Monitor Bundle for BlackMagic Pocket Cinema Camera 4K

The FOCUS is sure to add instant production value for mirrorless and DSLR shooters. Its bright display, professional software tools and convenient mounting is invaluable for shooters looking to do more with less gear.

Daylight Viewable 5" Touchscreen
The FOCUS is the camera-top monitor many shooters have been waiting for. With a light and compact form factor, the FOCUS is bright enough to see and sharp enough to pull focus.

• 800 nits bright
• 5", 1280x720 IPS LCD
• More pixels per inch than retina displays

Big Production Value for Small Camera Setups
The FOCUS is an ideal camera-top monitor for DSLR and mirrorless camera shooters because the Sony L Series battery powering the monitor, can also power the camera. With a battery adapter cable, the FOCUS extends camera run-time as much as 4x, while providing a more useable display.

• Auxiliary power out to DSLR and mirrorless cameras
• Micro HDMI input with port protection
• 1/8 stereo headphone jack
• 6 watt power draw

Convenient Mounting
Every FOCUS monitor will ship with a cold shoe mounted Tilt Arm. Shooters will have a secure way to position their monitor while maintaining a low profile.

• Allows the FOCUS to tilt 180 degrees for viewing convenience
• Secure and lightweight mounting via shoe adapter or 1/4" 20
• Includes a shoe mount of its own for accessories like microphones
• Ships with every FOCUS monitor

Access to Professional Features
Waveform, False Color, Focus Assist, 3D LUTs and Pixel Zoom are just a few professional software tools at your fingertips with the SmallHD FOCUS. Thanks to an intuitive user interface we're calling Swipe OS, interacting and managing these powerful tools has never been easier.

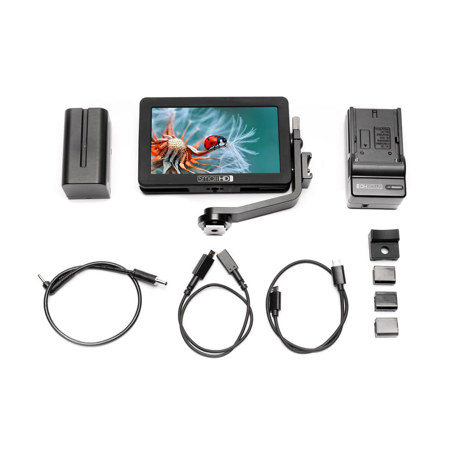

What's in the box:

  • SmallHD FOCUS 5 " Camera-Top Monitor
  • FOCUS Tilt Arm
  • L-Series Battery Kit
  • FOCUS to BMPCC Power Cable
  • BMPCC Shoe Adapter
  • UltraClear Screen Protector
  • 3x FOCUS Cable Clips
  • 12 " Micro to Micro HDMI Cable
  • Micro HDMI to Full HDMI Adapter
  • SmallHD 1 Year Limited Warranty
  • - SmallHD BMPCC 4K Shoe Adapter
