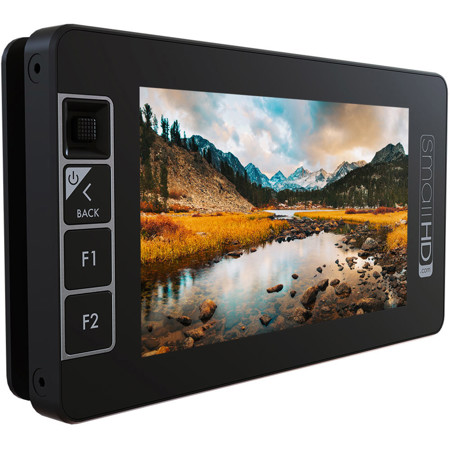

SmallHD 503 Professional Grade 5" Ultra Bright Field Monitor with HDMI (2x) SDI
See all SmallHD items

SmallHD 503 Professional Grade 5" Ultra Bright Full HD Field Monitor with HDMI and 2 SDI Inputs

SKU: SMMON503U

This item is no longer available.

Recommended Alternatives

SmallHD Ultra 5: Picture 1 regular
SmallHD Ultra 5 5" 16:9 Full HD Touchscreen On-Camera Monitor
$2,249.00
SmallHD Ultra 5: Picture 1 regular
SmallHD Ultra 5 5" 16:9 FHD Touch On-Camera Monitor w/Bolt 6 750 Rx, Gold Mount
$3,549.00
SmallHD Ultra 5: Picture 1 regular
SmallHD Ultra 5 5" 16:9 FHD Touch On-Camera Monitor with Bolt 6 750 Rx, V-Mount
$3,549.00
SmallHD Ultra 5: Picture 1 regular
SmallHD Ultra 5 5" 16:9 FHD Touchscreen On-Camera Monitor w/Bolt 6 750 Tx Module
$3,349.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Jonatan S : Needed a small bright monitor for outdoor usage.CASEY S : The flagship 5" monitor of any companyANDREW E : This is hands down the best field monitor in the bunnies that is 5"richard c : work

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

SmallHD MON-503U Specifications

  • Display: Panel Type

    IPS LCD

  • Display: Size Diagonal

    5"

  • Display: Resolution

    1920 x 1080

  • Display: Pixel Density (PPI)

    443 ppi

  • Display: Aspect Ratio

    16:9

  • Display: Active Area

    4.9

  • Display: Brightness

    2200

  • Display: Contrast

    1000:1

  • Display: Color Gamut

    70% NTSC

  • Display: Color Depth

    10-bit

  • Display: Viewing Angle

    170 degrees Typical

  • Display: Backlight Type

    White LED

  • Display: Adjustable Backlight

    Yes

  • Input Signal Types/Formats: 3G-SDI

    YCC 4:2:2 at 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50

  • Input Signal Types/Formats: HD-SDI

    YCC 4:2:2 at 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

  • Input Signal Types/Formats: SD-SDI

    YCC 4:2:2 at 10-bits: 480i29.97, 576i25

  • Input Signal Types/Formats: HDMI

    YCC 4:2:2 at 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25

  • Input Signal Types/Formats: Audio

    HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

  • Output Signal Types/Formats: 3G-SDI

    YCC 4:2:2 at 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50

  • Output Signal Types/Formats: HD-SDI

    YCC 4:2:2 at 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

  • Output Signal Types/Formats: SD-SDI

    YCC 4:2:2 at 10-bits: 480i29.97, 576i25

  • Output Signal Types/Formats: HDMI

    YCC 4:2:2 at 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60,720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25

  • Output Signal Types/Formats: Audio

    HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

  • Connector Type: SDI

    1x 3g Input, 1x 3g Output

  • Connector Type: HDMI

    1x Input, 1x Output

  • Connector Type: Audio

    1x 1/8" Headphone Jack

  • Connector Type: Power In

    1x Locking LEMO 2-pin Connector

  • Connector Type: USB

    1x Micro USB

  • Controls: Primary Control Interface

    Joystick Navigation, Dedicated Back/Power Button. 2 Additional User Assignable Function Buttons

  • Data I/O: Storage

    SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades, Profile Saving.

  • Data I/O: USB

    USB port supports storage devices for LUTs, Captured Images, Image Overlays, Profile Saving

  • Power: Connector Type

    2x Locking LEMO 2-pin Connectors: 1 for Power Input, 1 for Power distribution to an external device (Requires Power Input)

  • Power: Voltage

    With DV Battery Plate: 6.0 - 8.4V 7.2V Nominal With High Voltage Battery Plate: 12 - 34V 14.4V Nominal With Lemo Input: 12 - 34V Max

  • Power: Recommended Power Supply

    Included

  • Power: Overload Protection

    Yes

  • Software: Pixel Zoom (type)

    2x & 4x Zoom with smooth pan via joystick

  • Software: Frame Guides

    Yes: Preset Aspect Ratios & Customizable

  • Software: DSLR Scale

    Canon 5DMkii & Canon 7D

  • Software: Custom Scale

    Yes (Underscan Only)

  • Software: Anamorphic De-Squeeze

    Yes: 1.33x, 1.5x, 1.66x, 2.0x

  • Software: Image Rotate(Manual/Automatic)

    Yes - Automatic or Manual Control

  • Software: Image Flip (Manual/Automatic)

    Yes - Automatic or Manual Control

  • Software: Cross Conversion

    Yes: HDMI -> SDI & SDI -> HDMI

  • Software: Focus Assist (Colors)

    Yes - User Adjustable Color Style and Intensity

  • Software: Peaking

    Yes - User Adjustable Intensity

  • Software: False Color

    Yes - Rainbow & Arri Style

  • Software: Zebra

    Yes - Dual - User Configurable

  • Software: Waveform

    Yes - Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting

  • Software: Vectorscope

    Yes

  • Software: RGB Parade

    Yes - Fully User Customizable

  • Software: Histogram

    Yes - Luma & RGB Style

  • Software: Image Capture

    Yes - With Dedicated Button

  • Software: Custom LUTS

    Yes - Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu

  • Software: LUT Downstream

    Yes - Available on SDI 1 or HDMI Out. Applied on Output Preview Page.

  • Software: LUT Import

    via SD Card or USB Storage Device

  • Software: Image Overlay

    Yes with Opacity Slider and Blink Setting

  • Software: Firmware

    Compatible with 1300-1700-2400-3200 Firmware VX.x and later. Firmware Version to support 503UB & 703UB Does not yet exist. Version number not yet known.

  • Software: Audio Meters

    Yes - HDMI & SDI up to 8 channel

  • Compliance

    FCC, IC, CE, RoHS

  • Operating Temperature

    0 to 100 deg. F (-18 to 38 deg. C)

  • Storage Temperature

    -4 to 120deg. F (-20 to 49 deg. C)

  • Screen Protection

    AR Coated Gorilla Glass Optical Bonding on Panel

  • Mount Points

    11/4"-20 Thread on Top of Monitor, 1x1/4"-20 Thread on Bottom of Monitor, 1x1/4"-20 Thread on back of Monitor at Bottom Center

  • Dimensions (HxWxD)

    3.36 x 6.16 x 1.13" (8.53 x 15.65 x 2.87cm)

  • UPC Code

    850324007830

About SmallHD MON-503U

SmallHD Premieres Brightest HDR Monitors with LEMO Power

SmallHD introduces the new 5-inch and 7-inch UltraBright monitors with breakthrough viewing in full sunlight. They are designed to fill a variety of needs from a gimbal operator requiring a bright yet compact monitor, to a first AC pulling critical focus in all environments, or to show a director two camera angles at once.

The 503 displays a bright 2200-nits while the 703 displays 2500-nits. These on-camera monitors feature a 10-bit, 1920x1080 IPS LCD optically bonded Gorilla Glass screen with LEMO power. Plus, both 503 and 703 UltraBrights offer HDR Preview. For more accurate onset exposure adjustment, users may select Camera Input Gamma in the settings menu and individually tweak footage white point and black point via data values in the form of a histogram.

The UltraBright monitors have SDI and HDMI inputs and outputs featuring built-in cross conversion. A Dual View function allows either two SDI or an SDI and an HDMI input to be displayed side-by-side - an advantage for A/B camera set-ups or viewing LOG and DeLOG footage onset.

Like SmallHD's other monitors, a useful suite of tools is included in the UltraBrights, offering functions including 3D LUT support, HD Waveform and scopes, Focus and Exposure Assists, and PageBuilder OS that allows customizing menus to each camera operator's individual preference.

Engineered for professional power solutions, the 503 and 703 feature integrated 2-pin 12V LEMO input for powering the monitor and Native mounting solutions for both Anton Bauer Gold/V-mount and Sony L-Series dual battery plates.

SmallHD MON-503U Features

  • 2200 nits of brightness 'UltraBright'
  • 12v 2pin LEMO power in
  • 1920x1080p IPS LCD optically bonded Gorilla Glass Screen
  • Pixel Density 441 PPI
  • HDR Preview
  • SDI & HDMI Input & Output with cross conversion
  • SDI out doubles as 2nd SDI input
  • Dual View (via two inputs) for A/B Camera
  • Page Builder OS with Programmable Function buttons

Join VIP PRO

2 Day Delivery on thousands of items!

Request a Callback

Chat one-on-one with an expert

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • SmallHD 503 UltraBright On-Camera Monitor
  • 2-Pin LEMO to D-Tap Power Cable (36 ")
  • SmallHD 1 Year Warranty
