SmallHD 701 Lite 7" HDMI On-Camera Monitor
See all SmallHD items

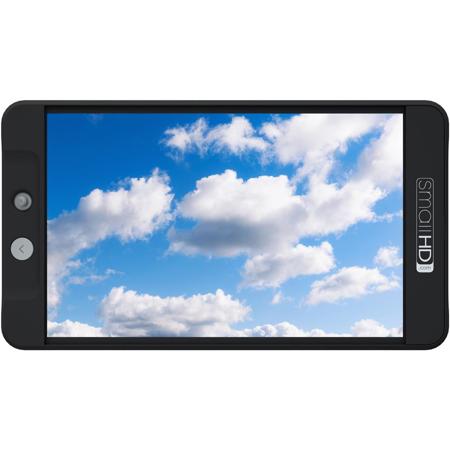

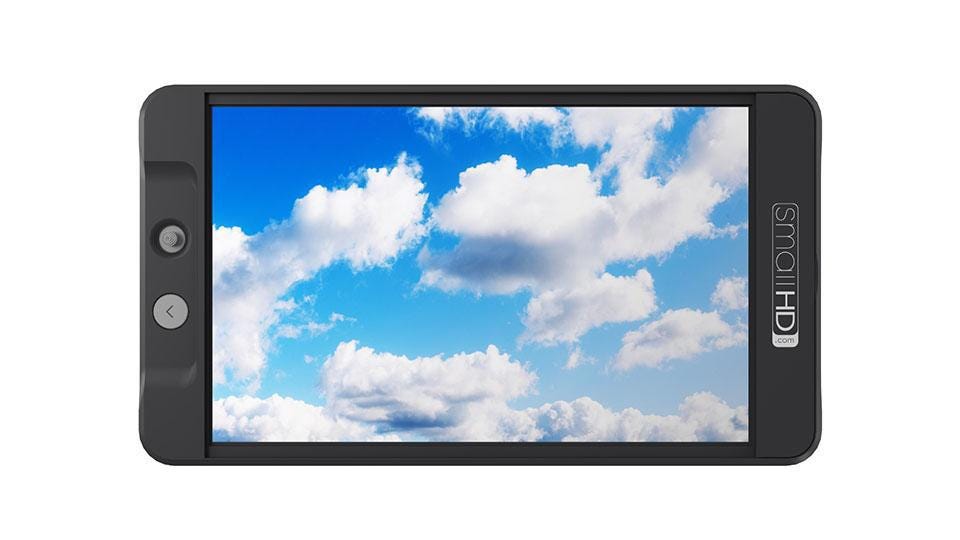

SmallHD 701 Lite 7" HDMI On-Camera Monitor

SKU: SMMON701L

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : is this product compatible with 4k camera?ROB F : It is. It will not display true 4k resolution, but it will downscale and looks great for monitoring a 4k shot.
Shopper : Why Did You Choose This?Charlie W : Seems like a dealMICHAEL J : 50% offSTEFON S : needed itCHRIS R : Nearly 50% off.

Reviews about this item

Review Summary

2020-07-27T09:29:28

Rated 4 out of 5

Perfect for job

wow, can't believe I got this for almost 50% off, so worth it!

Chris R.

2020-02-26T03:38:02

Rated 5 out of 5

Nice monitor

So bright! thats a so nice monitor

Mauricio S.

2018-06-12T17:36:01

Rated 4 out of 5

100% recommended

Great quality!!!

Jorge A.

2017-06-30T04:34:52

Rated 5 out of 5

Perfect monitor with a lot of configurations, it's help me a lot with this 7'' size. Easy to check focus, color, and other things.

It's a perfect monitor. I use it with my a7s2, and have a lot of very nice functions.

Mauricio S.

SmallHD 701 Lite Specifications

  • Display

    Panel Type: LCD
    Size Diagonal: 7"
    Resolution: 1280 x 800 (1280x720 Active)
    Pixel Density (PPI): 216
    Aspect Ratio: 16:10 (16:9 Active)
    Active Area: 6.8
    Brightness: 450 nits (Native)
    Contrast: 645:1
    Color Gamut: 70% Rec 709
    Color Depth: 24 bit (8bpc)
    Viewing Angle: Full 179 Degrees
    Backlight Type: LED
    Adjustable Backlight: Yes
    Temperature Adaptive Color: No

  • Input Signal Types/Formats - HD-SDI

    1080i60,1080i59.94,1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080pSF25, 1080pSF24, 1080pSF23.98, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

  • Input Signal Types/Formats - HDMI

    Supports YCC 4:2:2, 8/10/12 bit color in RGB & YCC 4:4:4, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50

  • Input Signal Types/Formats - Audio

    HDMI

  • Output Signal Types/Formats - HDMI

    Supports YCC 4:2:2, 8 bit output in RGB & YCC 4:4:4

  • Connector Type

    HDMI: 1 HDMI (in), 1 HDMI (out - selectable)
    Power: LP-E6 style battery x 2, Sony NPF style Battery x2, or one of each

  • Controls

    Primary Control Interface: Joystick + "Back" button
    Record/Capture: Capture button
    User Defined Functions: Uses "Pages" in conjunction with the Joystick control to provide any number of user defined monitoring options.
    RF Wireless Remote / External Control: Compatible with SmallHD Wireless Remote (Not Included)

  • Data I/O

    Storage: SD Card (full-size)

  • Power

    Connector Type: LP-E6/Sony L style
    Voltage: 6.0 - 8.4 volts
    Power Consumption: 4.9 - 7.0 watts
    Battery Plate Included: Canon LP-E6 / Sony NPF - Each Slot can accommodate ONE of either type battery
    Recommended Power Supply: LP-E6 coupler with built-in 7.2v, 2A regulator
    Overload Protection: No
    Smart Battery Compliant: Yes: Canon Style
    Battery Types: LP-E6 Style Batteries (Canon Recommended) Sony NPF Style (Sony Recommended)

  • Software

    Pixel Zoom (type): 2x & 4x with smooth pan via joystick
    Frame Guides: Yes
    DSLR Scale: Canon, Nikon
    Custom Scale: Yes (Underscan Only)
    Anamorphic De-Squeeze: Yes: 1.33x, 1.5x, 1.66x, 2.0x
    Image Rotate(Manual/Automatic): Yes - Manual Only
    Image Flip (Manual/Automatic): Yes - Manual Only
    Cross Conversion: No
    Focus Assist (Colors): Yes - User Adjustable
    Peaking: Yes - User Adjustable
    False Color: Yes - Full Range Color & Discrete Arri Style

  • Software Cont.

    Zebra: Yes - 2 individually Configurable
    Waveform: Yes - Luma & RGB Style
    Vectorscope: Yes
    PIP: No
    RGB Parade: Yes
    Histogram: Yes - RGB & Luma Style
    Horizon Indicator: No
    Image Capture: Yes with Dedicated Capture Button
    Custom LUTS: Yes
    LUT Creation: No
    LUT Downstream: Yes
    LUT Import: Yes
    Image Overlay: Yes - User Configurable for Opacity & Blink Speed
    Blue Only: No
    Firmware User Upgradable. Compatible with Version 2.2 and later
    Audio Meters: Yes

  • Construction

    Aluminum Frame with Rubberized Coating

  • Mount Points

    (4) 1/4-20 thread points (bottom, back, and sides)

  • Screen Protection

    1mm Acrylic (user replaceable)

  • Compliance

    CE, FCC, IC

  • Environmental

    Operating Temperature 30 - 90F (-1 - 32C)
    Storage Temperature 0 - 120F (32 - 48C)

  • Dimensions (HxWxD/L)

    4.23 x 7.56 x 0.95" 10.74 x 19.20 x 2.41cm)

  • Weight

    11oz (311.84g) Without battery

  • UPC Code

    850246006218

About SmallHD 701 Lite

FEATURED REVIEWS

Perfect monitor with a lot of configurations, it's help me a lot with this 7'' size. Easy to check focus, color, and other things.

By Mauricio S.

It's a perfect monitor. I use it with my a7s2, and have a lot of very nice functions.

Nice monitor

By Mauricio S.

So bright! thats a so nice monitor

SmallHD

701 Lite HD HDMI Monitor,

Premium display quality and image analysis at an affordable price.

smallhd

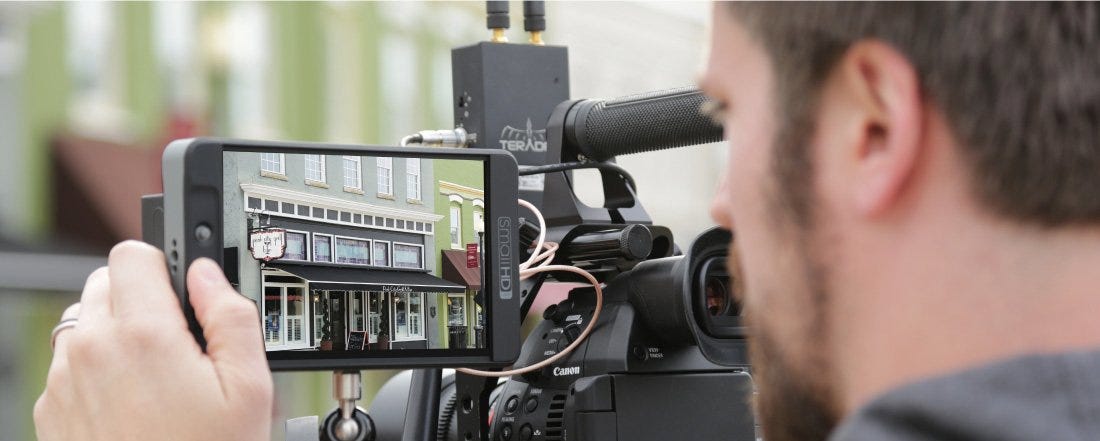

Durability: Future-Proof Your Investment.

Cameras come and go; SmallHD on-camera monitors are built to last. Housed in a milled aluminum frame
with a rubberized coating, the 701 Lite has durability in its DNA.

focus

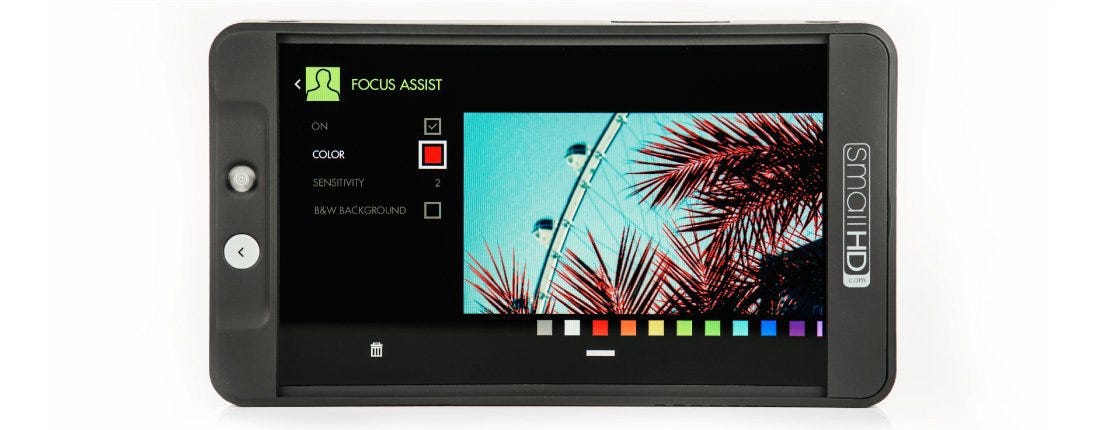

Focus Assist: Intuitive Tools For Precision Focus.

With a crisp HD display and the world's most customizable Focus Assist and Peaking software, the 701 Lite makes it easy to pull focus. Joystick Zoom is incredibly handy, allowing the user to smoothly zoom/pan around the details of an image without leaving
fingerprints on the display.

focus

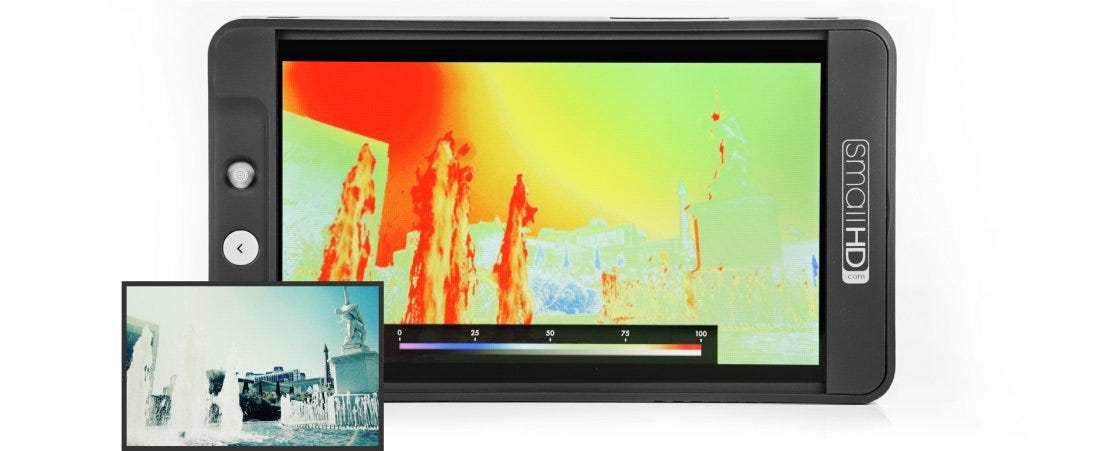

Exposure Assist: Professional, Accurate Exposure Tools.

Whether you prefer Waveform, False Color, or Zebra, the 701 Lite has a uniquely customizable tool set to help you properly
expose your shot. Through the use of Pages, you can organize and optimize your monitoring workflow for speed and agility.

smallhd

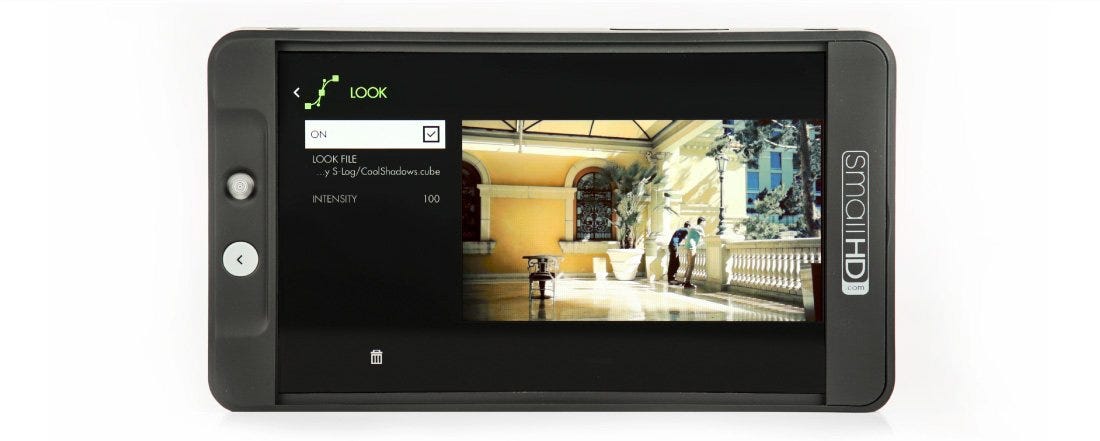

LUT Preview: Creative Confidence During Production.

Most large-scale productions have a crew dedicated to producing and distributing live color grades on set.
The 701 Lite brings the benefits of post production LUT preview to an affordable, 7-inch on-camera monitor.

Features.

  • 450nit brightness
  • HDMI in/out
  • 1200 x 800 display resolution
  • 7-inch screen diagonal
  • Scopes, Focus Assist, Pixel Zoom

Join VIP PRO

2 Day Delivery on thousands of items!

Request a Callback

Chat one-on-one with an expert

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 1200 x 800 display resolution
  • 450nit brightness
  • 7-inch screen diagonal
  • HDMI in/out
  • Scopes, Focus Assist, Pixel Zoom

What's in the box:

  • SmallHD 701 Lite 7 " Monitor
  • 8GB SD Card
  • SmallHD 1 Year Limited Warranty
