Shopper : Why Did You Choose This?CHRIS K : cause I'm tired of my little red monitorNathan R : RED Camera ControlBRIAN H : It has everything I'm looking for in a monitor without the price of the RED monitor

Reviews about this item

Review Summary

2021-12-27T06:12:58

Rated 5 out of 5

A perfect monitor for on-camera.

It is perfect for my needs. I love the ability to add or remove modules. The screen is very responsive and bright enough to see in direct sun. That's all I can really ask for in a professional monitor. I upgraded from the 702 bright and can't go back. I was worried about smudges from my fingers, but it doesn't my viewing or experience at all. The lemo built in is such a wonderful feature too. The unit it lighter than my 702 as well. Can't go wrong with this kit.

Reid P.

2019-09-28T00:55:00

Rated 5 out of 5

An Accurate Surprise

I was a little hesitant to purchase this because I had heard small hd colors weren’t that accurate. But I was swayed by the Red camera control tech. And I was pleasantly surprised at how easy these monitors are to calibrate with the X-Rite module and the results! Great monitor. Accurate. Every tool you need and the OS is incredible.

ADAM R.

2019-08-19T10:15:12

Rated 2 out of 5

Great monitor and a fair price.

So far a great monitor. I like the size. The low profile size makes it easy to work with on set.

Michael B.

SmallHD Cine 7 Specifications

Display

Display

Jump to...
  • Panel Type

    IPS LCD

  • Size Diagonal

    7.02

  • Resolution

    1920x1200

  • Pixel Density (PPI)

    322

  • Aspect Ratio

    16:10

  • Active Area

    5.95 x 3.72

  • Contrast

    1000:1

  • Color Gamut

    100% DCI-P3 Coverage

  • Color Depth

    8-b Panel with 10-b Scopes

  • Viewing Angle

    8-b Panel with 10-b Scopes

  • Backlight Type

    LED

  • Adjustable Backlight

    Yes

  • Brightness

    1800 nits

  • 3G-SDI

    YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

  • HD-SDI

    YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

  • SD-SDI

    YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

  • HDMI

    YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50

  • Audio

    HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal Types/Formats

Jump to...
  • 3G-SDI

    YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

  • HD-SDI

    YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

  • SD-SDI

    YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

  • HDMI

    YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200

  • Audio

    HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection
    1/8" Headphone Jack

Connector Type

Jump to...
  • SDI

    1x BNC 3G input and 1x BNC 3G selectable input/output

  • HDMI

    1 input and 1 output: HDMI Type-D Receptacles (full size)

  • Audio

    1x 3.5mm 3-pin Stereo Headphone Jack

  • Power In

    2-pin Locking

  • USB

    1x USB 2.0 Micro-B receptacle

Controls

Jump to...
  • Primary Control Interface

    Touch Screen

  • Record/Capture

    Capture Tool

  • Connector Type

    Lemo

  • Voltage

    DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max

  • Recommended Power Supply

    Recommend DC 12-15V at -2.5 amp or greater

  • Overload Protection

    DC input: Reverse polarity

  • Battery Types

    L-Series, V Mount, Gold Mount

  • Battery Chemistry

    Li-ion

  • Battery Charging Time (hours)

    Monitor does not support the charging of batteries

  • Battery Bracket

    Sony/V-Mount

Environmental

Jump to...
  • Compliance

    FCC, IC, CE, RoHS

  • Operating Temperature

    30 to 100 Degree F (-1 t0 37.7 Degree C)

  • Storage Temperature

    0 to 120 Degree F (-17 to 48.8 Degree C)

  • Dimensions (H x W x D)

    5.48 x 1.32 x 7.09" (13.92 x 3.35 x 18.01cm)

  • Mount Points

    Four 1/4-20 Mount Points (Left, Right, Bottom, and Back)

Software

Jump to...
  • Pixel Zoom (type)

    1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom

  • Frame Guides

    Preset Aspect Ratios & Customizable

  • DSLR Scale

    Canon 5DMkii & Canon 7D

  • Custom Scale

    Yes (Underscan Only)

  • Anamorphic De-Squeeze

    0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x

  • Image Rotate(Manual/Automatic)

    Automatic or Manual Control

  • Image Flip (Manual/Automatic)

    Automatic or Manual Control

  • Cross Conversion

    Yes: HDMI - SDI & SDI - HDMI

  • Focus Assist (Colors)

    User Adjustable Color Style and Intensity

  • Peaking

    User Adjustable Intensity

  • False Color

    Rainbow, Arri Style, Custom with up to 10 nodes

  • Zebra

    Dual - User Configurable

  • Waveform

    Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting

  • Vectorscope

    Yes

  • RGB Parade

    Fully User Customizable

  • Histogram

    Luma & RGB Style

  • Image Capture

    Yes

  • Custom LUTS

    Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu

  • LUT Downstream

    Available on SDI or HDMI Out. Applied on Output Preview Page.

  • LUT Import

    via SD Card or USB Storage Device

  • Image Overlay

    With Opacity Slider and Blink Setting

  • Audio Meters

    HDMI & SDI up to 8 channel

  • UPC Code

    811786030989

About SmallHD Cine 7

FEATURED REVIEWS

An Accurate Surprise

By ADAM R.

I was a little hesitant to purchase this because I had heard small hd colors weren’t that accurate. But I was swayed by the Red camera control tech. And I was pleasantly surprised at how easy these monitors are to calibrate with the X-Rite module and the results! Great monitor. Accurate. Every tool you need and the OS is incredible.

A perfect monitor for on-camera.

By Reid P.

It is perfect for my needs. I love the ability to add or remove modules. The screen is very responsive and bright enough to see in direct sun. That's all I can really ask for in a professional monitor. I upgraded from the 702 bright and can't go back. I was worried about smudges from my fingers, but it doesn't my viewing or experience at all. The lemo built in is such a wonderful feature too. The unit it lighter than my 702 as well. Can't go wrong with this kit.

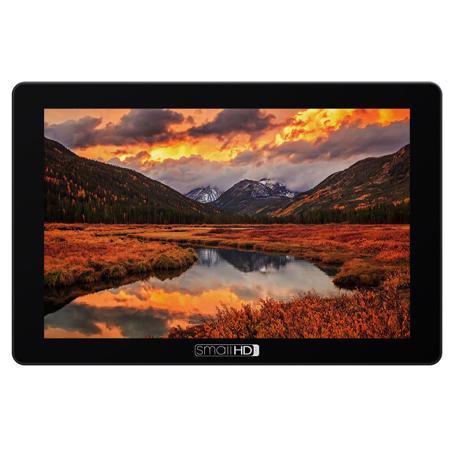

Full HD 7-inch Touchscreen Monitor with DCI-P3 Color and 1800 nits brightness

Professional on-camera monitor - With optional ARRI camera control (License sold separately)

Cine 7
Cine 7 is a top of the line professional 7" monitor with ARRI camera control. Its 1800 nit, daylight viewable display and 100% DCI-P3 coverage make this monitor an absolute joy to work with, in any production environment.

With Teradek RT overlay integration and Teradek wireless video technology, Cine 7 delivers an experience that represents the gold standard for A-list cinematography.

Built for Professionals
The Cine 7 offers the durability and flexibility required by demanding professionals. With a lightweight milled aluminum frame and several 1/4"-20 mounting points, the 7inch monitor is ready to perform on any rig and in any environment.

Cine 7 includes several 3G-SDI and HDMI inputs and outputs, as well as signal cross conversion. Power options include a locking 2-pin connector and interchangeable battery brackets (Gold, V, and Sony L series). An Ethernet port allows for camera control connectivity.

Powered By OS3 Data Driven Confidence
SmallHD OS3 software gives directors and camera operators industry leading imaging tools and a simplified user experience. Customize Scopes, Waveforms, and False Color how you desire. Apply real-time 3D LUTs quickly and easily. Save time and be more confident creating with this powerful, data-driven tool set.

What's in the box:

  • Cine 7 1920x1200 7 " Touchscreen Monitor
  • Sony V-Mount Battery Bracket
  • 36 " LEMO to D-Tap/P-Tap Power Cable
  • 8GB SD Card
  • Cleaning Cloth
  • SmallHD 1 Year Limited Warranty
