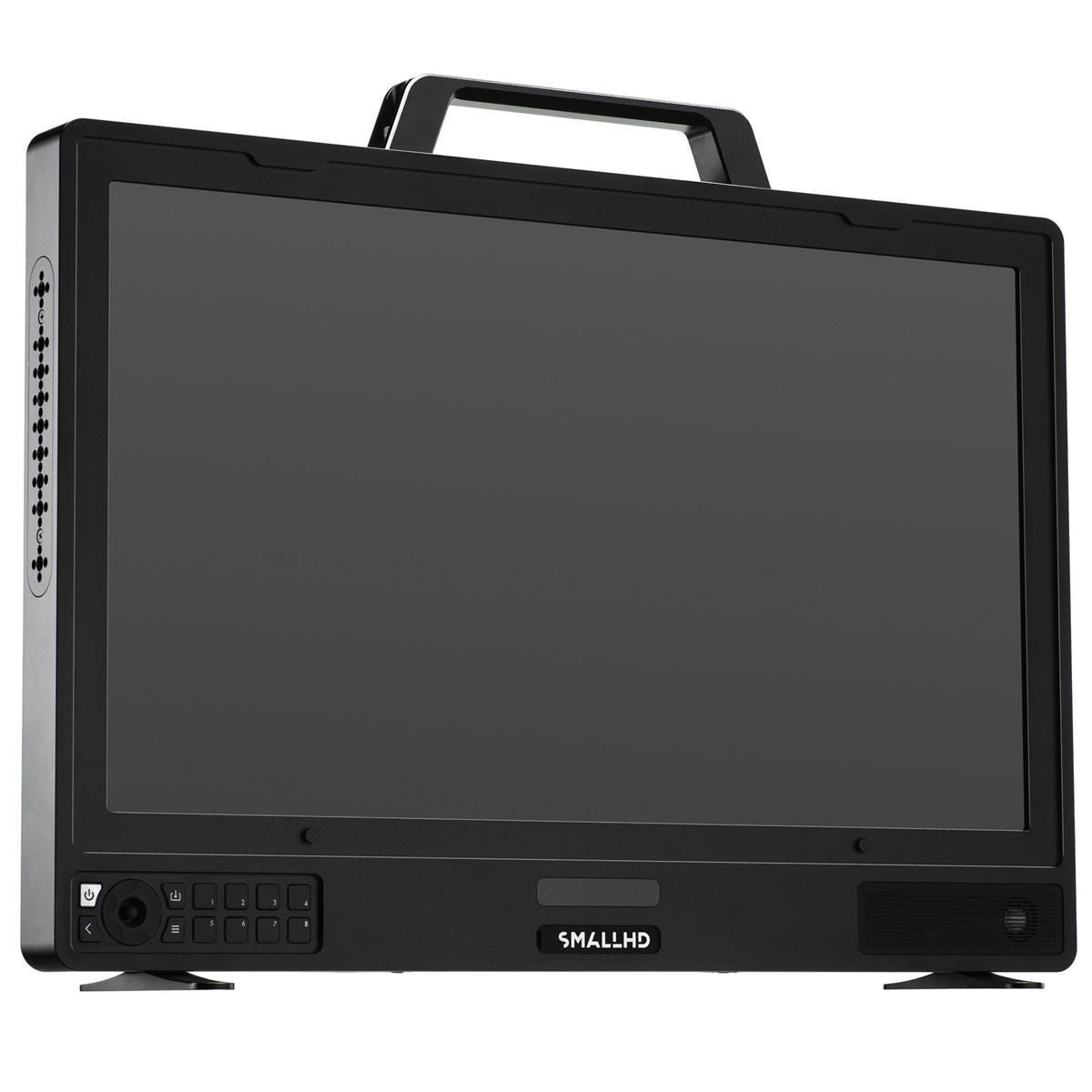

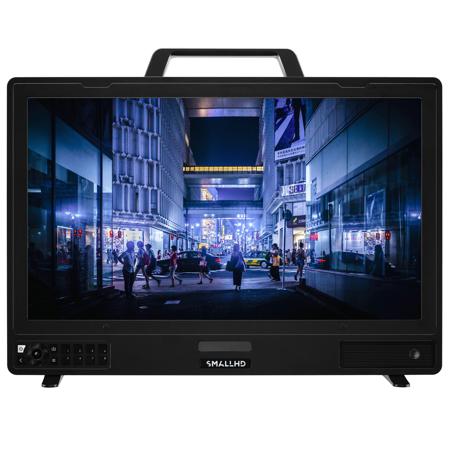

SmallHD OLED 22" 4K Reference Monitor
See all SmallHD items

SmallHD OLED 22" 4K Reference Monitor

SKU: SMMONOLED22
Be the first to review this item

This item is no longer available.

Recommended Alternatives

SmallHD Quantum 32: Picture 1 regular
SmallHD Quantum 32 31.5" 16:9 4K Ultra HD True Reference OLED HDR Display, Black
$13,499.00$12,999.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What makes the SmallHD OLED 22' 4K Reference Pro Monitor ideal for professional video editing?

The SmallHD OLED 22' 4K Reference Pro Monitor is designed with a high-resolution display and a 1,000,000:1 contrast ratio, ensuring true-to-life color accuracy. It also features the advanced SmallHD OS4.1 for superior image quality.

What are the connectivity options for the SmallHD OLED 22' 4K Reference Pro Monitor?

The monitor offers versatile connectivity options, including four 12G/6G/3G/HD-SDI inputs and outputs, one HDMI 2.0 input, and one HDMI 2.0 output.

What are the mounting options for the SmallHD OLED 22' 4K Reference Pro Monitor?

The monitor can be mounted using the 110mm VESA pattern on the back or by thirty-six 1/4'-20 threads around the top and sides of the monitor.

What additional features does the SmallHD OLED 22' 4K Reference Pro Monitor offer?

The monitor includes a calibration wizard, false color overlays, waveform, pixel zoom, focus assist, and peaking. The OS4.1 updates also offer dual and quad views and 4K waveforms and scopes with regions of interest.

How is the SmallHD OLED 22' 4K Reference Pro Monitor powered?

Powering the monitor is made easy with a 3-pin XLR input or a separately available dual V-mount or Gold mount battery plate, which are hot-swappable.

Reviews about this item

Review Summary

SmallHD OLED Specifications

  • Screen Size

    21.6" (55cm)

  • Resolution

    3840 x 2160

  • Contrast Ratio

    >1,000,000:1

  • Color Space

    100% DCI-P3

  • Color Depth

    True 10-bit

  • Brightness

    350 nits

  • Backlight Type

    OLED

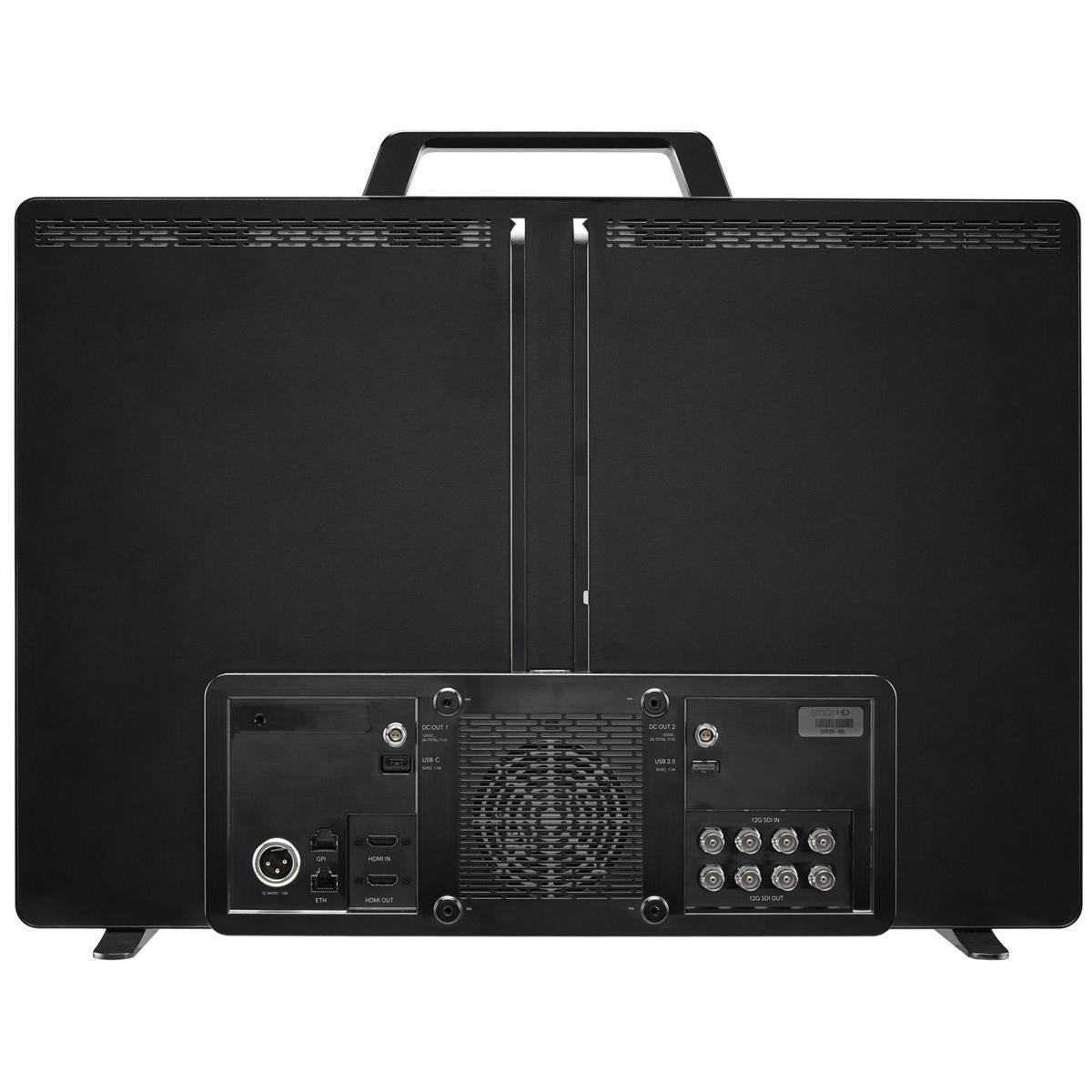

  • SDI Video

    Inputs & Output: 4x 12G/6G/3G/HD-SDI

  • HDMI Video

    Input & Output: 1x HDMI 2.0 (4K60)

  • Multiview

    Dual-View & Quad-View

  • Power Inputs

    1x 3-pin XLR (12-34V/12A)
    1x Dual-GM/VM Batt.Plate (14/26V) (sold as accessory)

  • Power Outputs

    2x 2pin (12V / 2A combined)
    2x USB (5V / 2.4A) (Front/Rear)
    1x USB-C (5V / 1.5A)

  • Data I/O

    1x SD Card Slot
    1x RJ45 Ethernet
    1x RJ45 GPI

  • LUTs

    17pt 3D-LUT on output/input
    33pt 3D-LUT on output/input

  • Audio

    1x 3.5mm 3-pin Stereo Headphone Jack

  • Mounting Points

    1x 110mm VESA-compatible rear mount
    36x 1/4-20 mounting points (top/sides)
    (3/8" mounting points avail. as accessory)

  • Weight

    With Handle + Feet: 9.35 lbs (4.2kg)

  • UPC Code

    811786032129

About SmallHD OLED

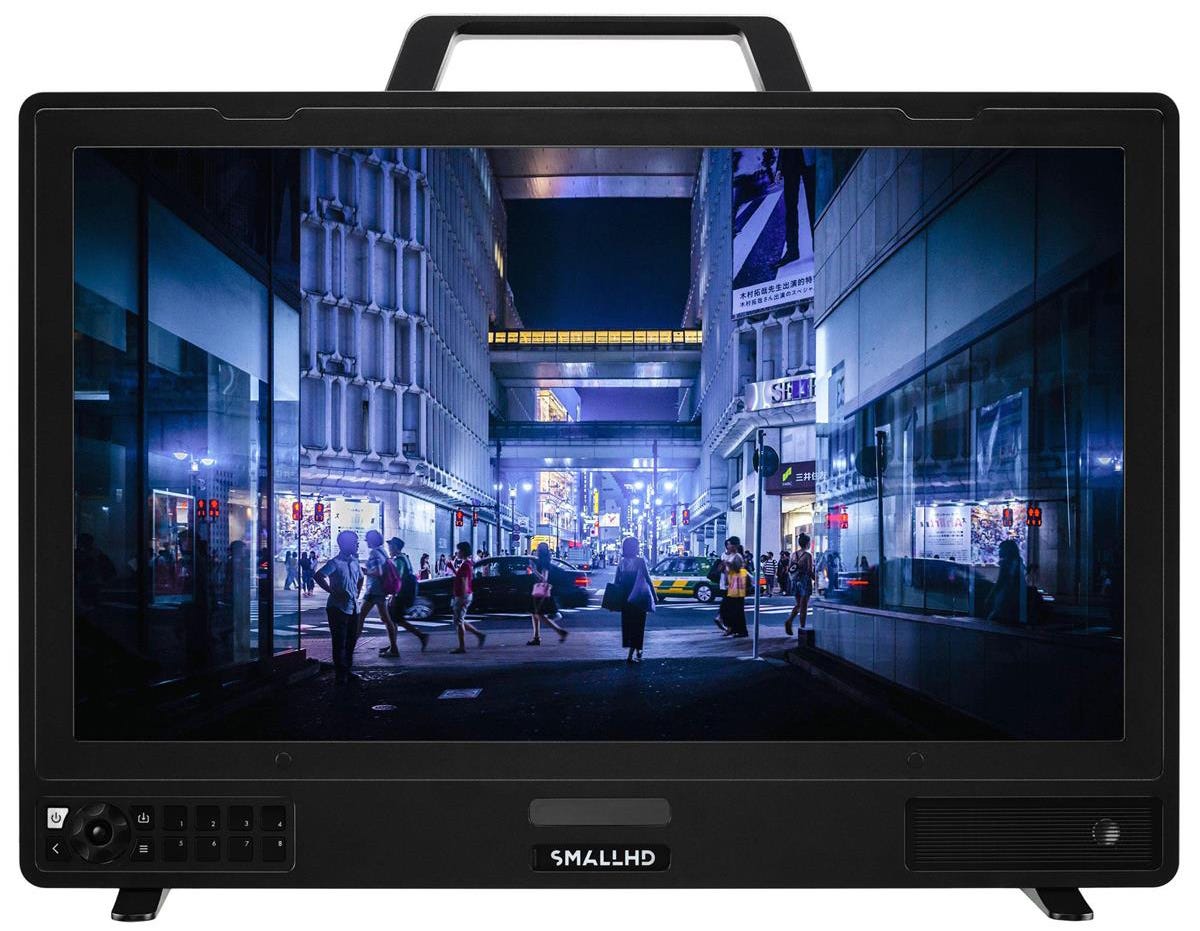

SmallHD Video Monitor

For The Color Purist.

OLED 22 is a stunning new entry into the reference monitor space and SmallHD’s new standard for color perfectionists. Featuring a 1,000,000:1 contrast ratio with an absolute black point, and 100% P3 / 135% Rec 709 color gamuts that generate beautiful, true-to-life color accuracy. With the power of PageOS 4 histograms and waveforms, every tool is included to achieve perfection. OLED 22 prevents angle shift at any viewing position and provides a real-time image as vivid and pristine as the final output, on-set or in post.

  • Small4K™ Video Processing Architecture
    • Inputs: 4x 12G-SDI , 1x HDMI 2.0
    • Outputs: 4x 12G-SDI, 1x HDMI 2.0*

  • Unibody Smart Chassis

    • Smartrail for battery and accessory mounting
    • Interchangeable mounting points
    • 2x 2-pin accessory power outputs

  • Power: Hot-swappable dual inputs: 1x 3-pin XLR, 1x Dual-GM/VM Battery Plate (sold separately)

  • PageOS 4 software platform
    • 4K HDR waveform and scopes*
    • Dual & Quad-view*
    • Color Pipe HDR color rendering
    • Monitor Calibration Wizard

Features.

  • Internal Calibration Wizard
  • Color Pipe color-space formatting
  • Settings Dashboard for easy access to common settings
  • Preconfigured Pages
  • Page Tabs
  • Customizable False Color Overlays
  • Customizable 4K Waveform w/Region of Interest Highlighting
  • Improved Function Buttons
  • Pixel Zoom, Focus Assist, Peaking
  • Total UI overhaul

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Advanced 22" 4K OLED Reference Pro Monitor for professional video editing
  • High-resolution display with 1,000,000:1 contrast ratio for true-to-life color accuracy
  • Equipped with innovative SmallHD OS4.1 for superior image quality
  • Features a calibration wizard, false color overlays, waveform, pixel zoom, focus assist, & peaking

What's in the box:

  • OLED 22 " 4K Reference Monitor
  • SmallHD 1 Year Limited Warranty
