SmallHD Vision 17" 4K HDR Reference-Grade Production Monitor
See all SmallHD items

SmallHD Vision 17" 4K HDR Reference-Grade Production Monitor

SKU: SMMONVISN17
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

SmallHD Vision Specifications

  • Screen Size

    17.3" (44cm)

  • Resolution

    3840 x 2160

  • Contrast Ratio

    1,000,000:1

  • Color Space

    115% DCI-P3

  • Color Depth

    8-bit

  • Brightness

    1000 nits

  • Backlight Type

    Full-Array Local Dimming

  • Backlight Zones

    2403

  • SDI Video

    Inputs & Output: 4x 12G/6G/3G/HD-SDI

  • HDMI Video

    Input & Output: 1x HDMI 2.0 (4K60)

  • Multiview

    Dual-View & Quad-View

  • Power Inputs

    1x 3-pin XLR (12-34V/12A)
    1x Dual-GM/VM Batt.Plate (14/26V) (sold as accessory)

  • Power Outputs

    2x 2pin (12V / 2A combined)
    2x USB (5V / 2.4A) (Front/Rear)
    1x USB-C (5V / 1.5A)

  • Data I/O

    1x SD Card Slot
    1x RJ45 Ethernet
    1x RJ45 GPI

  • LUTs

    17pt 3D-LUT on output/input
    33pt 3D-LUT on output/input

  • Audio

    1x 3.5mm 3-pin Stereo Headphone Jack

  • Mounting Points

    1x 110mm VESA-compatible rear mount
    36x 1/4-20 mounting points (top/sides)
    (3/8" mounting points avail. as accessory)

  • Weight

    With Handle + Feet: 10.7 lbs (4.8kg)

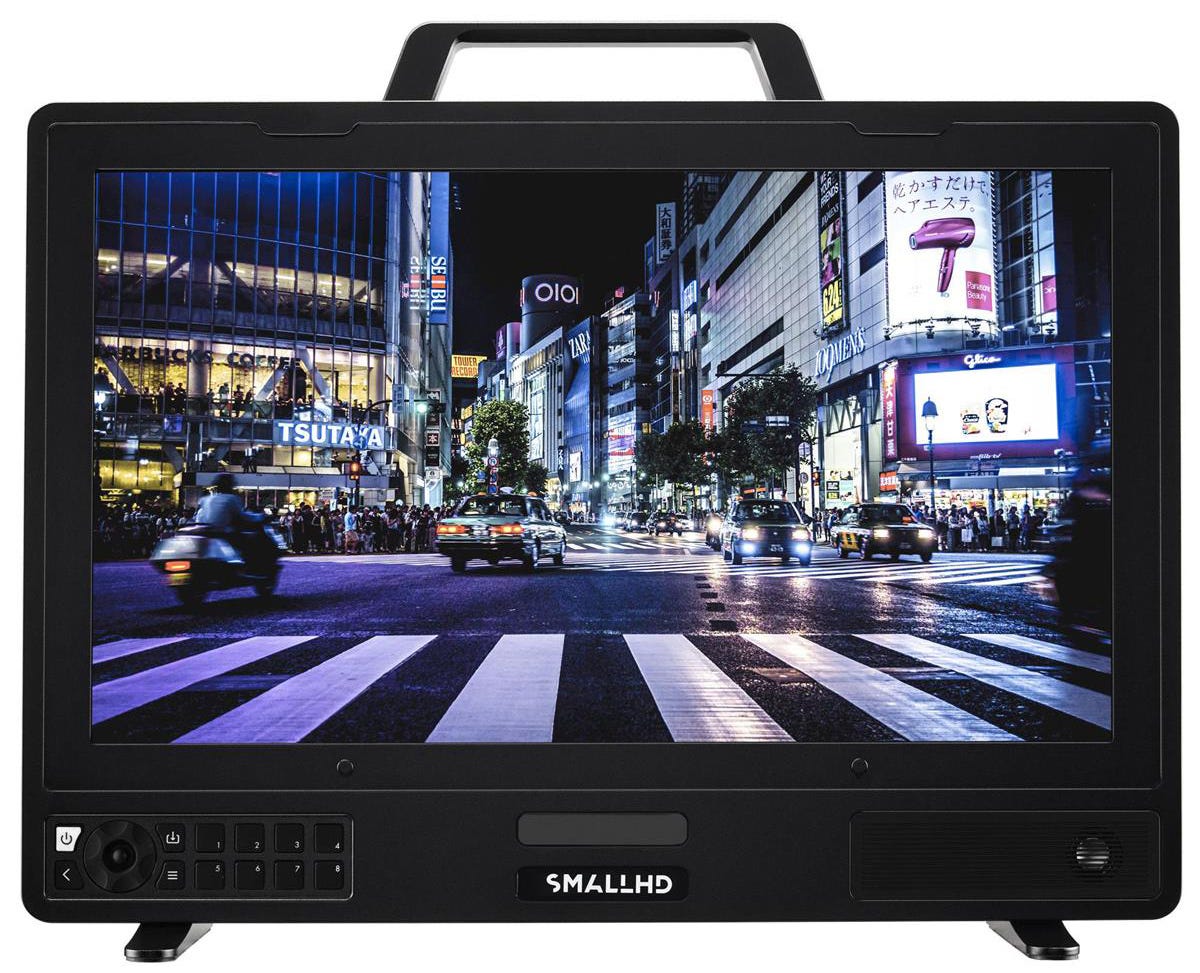

About SmallHD Vision

vision

Go Everywhere. See Everything.

Vision 17 is built for the mobile Filmmaker. Employing the same SmallHDR dual-modulation hardware as Vision 24, this 17” FALD counterpart boasts 2403 individual LED zones, with 1000+ nits of brightness to achieve perfect uniformity in contrasts & latitude, with even deeper blacks and greater highlight detail. Compact, durable, and lightweight, Vision 17 is capable of traveling to any on-set environment.

  • Small4K™ Video Processor Architecture
    • Inputs: 4x 12G-SDI , 1x HDMI 2.0
    • Outputs: 4x 12G-SDI, 1x HDMI 2.0*

  • Unibody Smart Chassis

    • Smartrail for battery and accessory mounting
    • Interchangeable mounting points
    • 2x 2-pin accessory power outputs

  • Power: Hot-swappable dual inputs: 1x 3-pin XLR, 1x Dual-GM/VM Battery Plate (sold separately)

  • PageOS 4 software platform
    • 4K HDR waveform and scopes*
    • Dual & Quad-view*
    • Color Pipe HDR color rendering
    • Monitor Calibration Wizard

Features.

  • Internal Calibration Wizard
  • Color Pipe color-space formatting
  • Settings Dashboard for easy access to common settings
  • Preconfigured Pages
  • Page Tabs
  • Customizable False Color Overlays
  • Customizable 4K Waveform w/Region of Interest Highlighting
  • Improved Function Buttons
  • Pixel Zoom, Focus Assist, Peaking
  • Total UI overhaul

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Internal Calibration Wizard
  • Color Pipe color-space formatting
  • Settings Dashboard for easy access to common settings
  • Preconfigured Pages
  • Page Tabs
  • Customizable False Color Overlays

What's in the box:

  • Vision 17 " 4K HDR Reference-Grade Production Monitor
  • SmallHD 1 Year Limited Warranty
