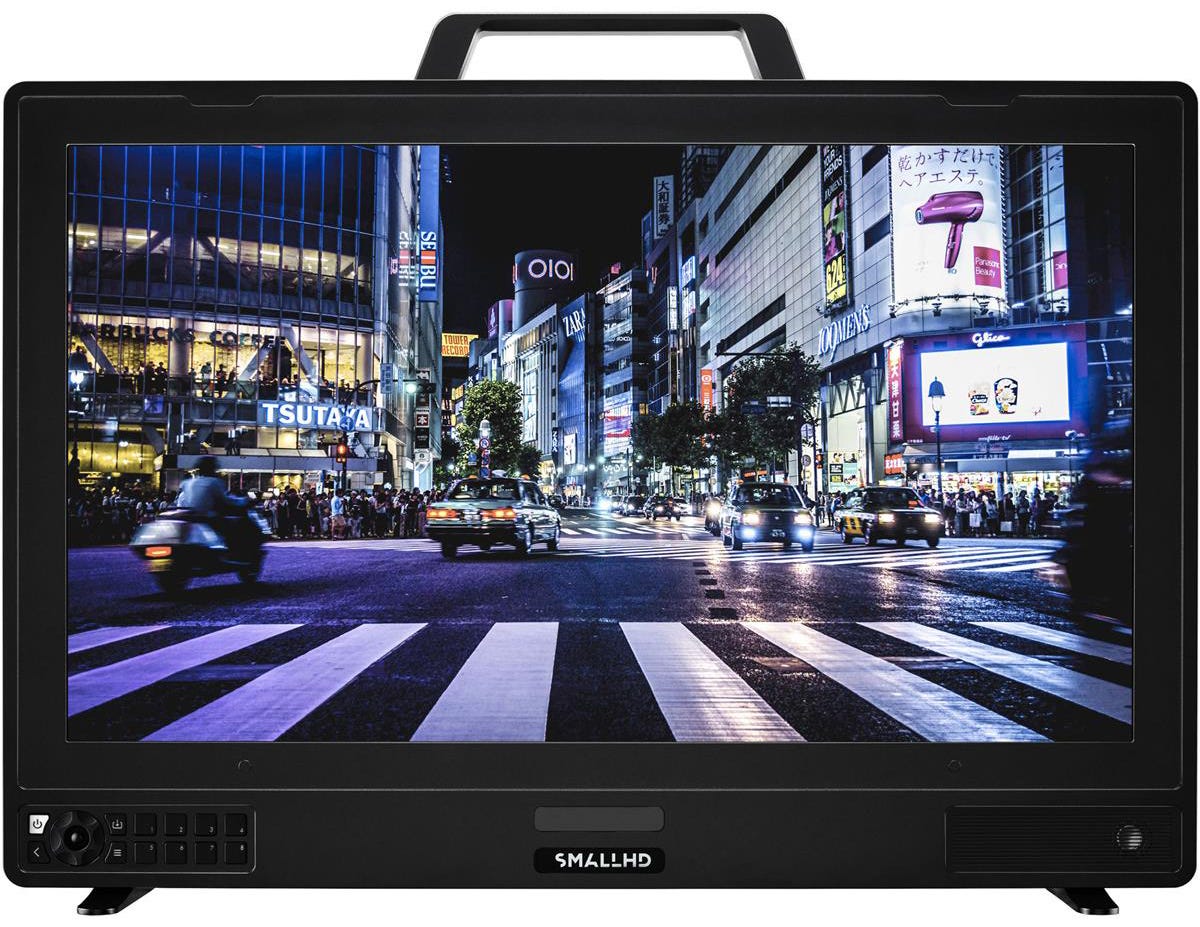

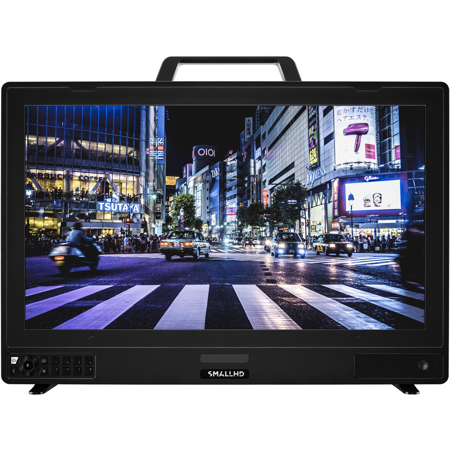

SmallHD Vision 24" 4K HDR Reference-Grade Production Monitor
See all SmallHD items

SmallHD Vision 24" 4K HDR Reference-Grade Production Monitor

SKU: SMMONVISN24

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

SmallHD Vision Specifications

  • Screen Size

    24.1" (61cm)

  • Resolution

    4096 x 2160

  • Contrast Ratio

    1,000,000:1

  • Color Space

    115% DCI-P3

  • Color Depth

    True 10-bit

  • Brightness

    1000 nits

  • Backlight Type

    Full-Array Local Dimming

  • Backlight Zones

    2176

  • SDI Video

    Inputs & Output: 4x 12G/6G/3G/HD-SDI

  • HDMI Video

    Input & Output: 1x HDMI 2.0 (4K60)

  • Multiview

    Dual-View & Quad-View

  • Power Inputs

    1x 3-pin XLR (12-34V/12A)
    1x Dual-GM/VM Batt.Plate (14/26V) (sold as accessory)

  • Power Outputs

    2x 2pin (12V / 2A combined)
    2x USB (5V / 2.4A) (Front/Rear)
    1x USB-C (5V / 1.5A)

  • Data I/O

    1x SD Card Slot
    1x RJ45 Ethernet
    1x RJ45 GPI

  • LUTs

    17pt 3D-LUT on output/input
    33pt 3D-LUT on output/input

  • Audio

    1x 3.5mm 3-pin Stereo Headphone Jack

  • Mounting Points

    1x 110mm VESA-compatible rear mount
    36x 1/4-20 mounting points (top/sides)
    (3/8" mounting points avail. as accessory)

  • Weight

    With Handle + Feet: 19.7 lbs (8.9kg)

  • UPC Code

    811786032181

About SmallHD Vision

Vision 24

Every Detail Matters.

Vision 24 allows you to see as your camera sees. Engineered to equal modern sensors’ increased sensitivity to highlight and lowlight image retention. Powered by SmallHDR, a proprietary Full-Array Local Dimming (FALD) hardware that enables nuanced control of over 2100 individual LED zones, rendering hyper-sharp contrasts with deep blacks, crisp highlights, and a stunning 10-bit color depth. Ideal for use in any production environment where HDR monitoring is a necessity, Vision 24 provides the added security that every detail is captured.

  • Small4K™ Video Processing Architecture
    • Inputs: 4x 12G-SDI , 1x HDMI 2.0
    • Outputs: 4x 12G-SDI, 1x HDMI 2.0*

  • Unibody Smart Chassis

    • Smartrail for battery and accessory mounting
    • Interchangeable mounting points
    • 2x 2-pin accessory power outputs

  • Power: Hot-swappable dual inputs: 1x 3-pin XLR, 1x Dual-GM/VM Battery Plate (sold separately)

  • PageOS 4 software platform
    • 4K HDR waveform and scopes*
    • Dual & Quad-view*
    • Color Pipe HDR color rendering
    • Monitor Calibration Wizard

Features.

  • Internal Calibration Wizard
  • Color Pipe color-space formatting
  • Settings Dashboard for easy access to common settings
  • Preconfigured Pages
  • Page Tabs
  • Customizable False Color Overlays
  • Customizable 4K Waveform w/Region of Interest Highlighting
  • Improved Function Buttons
  • Pixel Zoom, Focus Assist, Peaking
  • Total UI overhaul

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience unmatched clarity with this SmallHD 24" 4K HDR production monitor.
  • Achieve perfect color accuracy with 115% DCI-P3 coverage on your reference monitor.
  • Enjoy versatile connectivity with 4x 12G-SDI and HDMI 2.0 inputs on this HDR monitor.
  • Utilize dual and quad-view options for efficient multi-camera monitoring workflows.
  • Power your accessories directly from the monitor with multiple USB and 2-pin outputs.
  • Mount your production monitor easily with VESA compatibility and multiple mounting points.

What's in the box:

  • Vision 24 " 4K HDR Reference-Grade Production Monitor
  • SmallHD 1 Year Limited Warranty
