SmallHD 1303 HDR 13" Full HD LED Production Monitor Bundle, Includes Gold Mount Power Kit and Pro Battery Cheese Plate

SKU: SMON1303HGMK MFR: MON-1303HDR-GM-KIT
Earn VIP Reward Points

Key Features

  • Experience superior clarity with the SmallHD 1303 HDR's 1920x1080 Full HD LED monitor.
  • Achieve peak performance with the included Gold Mount Power Kit for extended battery life.
  • Enhance on-set workflow using the monitor's HDMI and SDI cross-conversion capabilities.
  • Ensure accurate colors with 100% Rec. 709 color gamut, ideal for professional video work.
  • Mount your monitor easily with the included C-Stand Mount for flexible positioning options.
  • Protect your investment with the bundled screen protector, maintaining display integrity.
See More Product Details
FREE 2-Day Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$699.99

4 Year

$849.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?EMILY H : The 1303 is the best focus pulling monitor on the market.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

SmallHD 1303 HDR 13" LED Production Monitor Bundle with Gold Mount Power Kit Specifications

Display

Display

Jump to...
  • Panel Type

    IPS

  • Size Diagonal

    13"

  • Resolution

    1920 x 1080

  • Pixel Density

    170 PPI

  • Aspect Ratio

    16:9

  • Active Area

    11.59" x 6.52"

  • Brightness

    1500 nits

  • Contrast

    1140:1

  • Color Gamut

    100% Rec.709

  • Color Depth

    10 bit

  • Viewing Angle

    178 deg.

  • Backlight Type

    LED

  • Adjustable Backlight

    Yes

  • Temperature Adaptive Color

    No

Input Signal Types/Formats

Jump to...
  • 3G-SDI

    YCC 4:2:2 at 10 bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

  • HD-SDI

    YCC 4:2:2 at 10 bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080psF25, 1080psF24, 1080psF23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

  • SD-SDI

    480i29.97, 576i25

  • HDMI

    Supports YCC 4:2:2 at 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50

  • Component

    Not Supported

  • Composite

    Not Supported

  • Audio

    HDMI & SDI Monitor through Speakers in Front Bezel or through Headphone Jack Metering up to 8 channels

Output Signal Types/Formats

Jump to...
  • 3G-SDI

    YCC 4:2:2 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88,

  • HD-SDI

    YCC 4:2:2 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 all at 8 bits

  • SD-SDI

    Not Supported

  • HDMI

    Supports YCC 4:2:2 at 8 bits, RGB & YCC 4:4:4 at 8 bits: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i120, 480i119.88, 480i60, 480i59.94, 576i100, 576i50

  • Component

    Not Supported

  • Composite

    Not Supported

  • Audio

    Audio sent downstream unless a LUT is loaded on the output page which disables Audio out

Connector Type

Jump to...
  • SDI

    2x 3G Inputs, 2x 3G Outputs

  • HDMI

    1x Input, 1x Output

  • Component

    Not Supported

  • Composite

    Not Supported

  • Audio

    1x Headphone Jack on Front of Monitor

  • Power In

    1x XLR 4 pin Input 12-34VDC, 1x Lemo Output 12VDC at 4A Max

  • Power Out

    1x XLR 4 pin Input 12-34VDC, 1x Lemo Output 12VDC at 4A Max

  • USB

    1x Front USB2, 2x Rear USB2

Controls

Jump to...
  • Primary Control Interface

    Joystick Navigation, Dedicated Back Button. Additional Dedicated buttons for: Image Capture; LUT Selection; Backlight Level; Input Selection; Scopes Toggle.

  • Record/Capture

    Dedicated Image Capture Button on Front Bezel

Data I/O

Jump to...
  • Storage

    SD Card for LUTs, Captured Images, Image Overlays, Profile Saving & Loading, Firmware Upgrades

  • USB

    1 Front & 2 Rear USB Ports for power (1.5A shared total), LUT Loading, Profile Saving & Loading

  • Connector Type

    1x XLR 4-pin 12 - 34VDC IN; 12V Lemo 2-pin OUT 4A Max

  • Voltage

    12 - 34VDC

  • Power Consumption

    25 - 39W

  • Recommended Power Supply

    AC - DC Power Converter "Brick" Included with Monitor 110 - 240VAC 50 - 60 HZ INPUT; 15V - 6A OUTPUT

  • Battery Types

    Gold Mount via 4 pin XLR Connector

  • Output Voltage

    12V, 2A max via LEMO Connector

Software

Jump to...
  • Pixel Zoom (Type)

    2x & 4x with smooth pan via pinch zoom gesture

  • Frame Guides

    Preset Aspect Ratios & Customizable

  • DSLR Scale

    Canon 5DMkii & Canon 7D

  • Custom Scale

    Underscan Only

  • Anamorphic De-Squeeze

    1.33x, 1.5x, 1.66x, 2.0x

  • Image Rotate

    Automatic or Manual Control

  • Image Flip

    Automatic or Manual Control

  • Cross Conversion

    Yes: HDMI to SDI & SDI to HDMI

  • Focus Assist (Colors)

    User Adjustable Color Style and Intensity

  • Peaking

    User Adjustable Intensity

  • False Color

    Spectrum, Arri Style and Fully User Customizable

  • Zebra

    Dual - User Configurable

  • Waveform

    Luma & RGB Style, Fully User Customizable with Region of Interest Highlighting

  • Vectorscope

    Yes

  • PIP

    No

  • RGB Parade

    Fully User Customizable

  • Histogram

    Luma & RGB Style

  • Horizon Indicator

    No

  • Image Capture

    With Dedicated Button and Image Gallery

  • Custom LUTS

    Loadable as Looks on Pages or as System wide Color Calibration via the settings menu

  • LUT Creation

    No

  • LUT Downstream

    Applied on Output Preview Page

  • LUT Import

    Via SD Card or USB Storage Device

  • Image Overlay

    Opacity Slider and Blink Setting

  • Blue Only

    No

  • Audio Meters

    Up to 8 channel

Environmental

Jump to...
  • Compliance

    FCC, IC, CE, RoHS

  • Operating Temperature

    32 to 100 deg. F (0 to 38 deg. C)

  • Storage Temperature

    33 to 115 deg. F (1 to 46 deg. C)

  • Screen Protection

    Acrylic or Anti-Reflective Acrylic screen protector available as an option

  • Mount Points

    2x 1/4"-20 on Top, Left & Right sides; RapidRail - Cold Shoe style rails on rear of monitor

  • Dimensions (HxWxD)

    Monitor: 9 x 13 x 2.88" (22.86 x 33.02 x 7.32cm)
    Gold Mount Power Kit + Cheese Plate: 5 x 5 x 3" (12.70 x 12.70 x 7.62cm)
    C-Stand Mount: 5 x 5 x 1.5" (12.70 x 12.70 x 3.81cm)
    Sunhood: 8.25 x 12.75 x 8.5" (20.96 x 32.39 x 21.59cm)
    Screen Impact Protector: 6.9 x 12 x 0.12" (17.53 x 30.48 x 0.30cm)
    RapidRail Mount: 1.25 x 2 x 1" (3.18 x 5.08 x 2.54cm)

  • Weight

    Monitor: 128 oz (3628.74g) without battery
    Gold Mount Power Kit + Cheese Plate: 23.2 oz (657.71g)
    C-Stand Mount: 14.4 oz (408.23g)
    Sunhood: 16 oz (453.59g)
    Screen Impact Protector: 12 oz (340.19g)
    RapidRail Mount: 3 oz (85.05g)
    12" Cable: 1 oz (28.35g)
    24" Cable: 1 oz (28.35g)
    48" Cable: 1.6 oz (45.36g)

  • UPC Code

    855534007557

About SmallHD 1303 HDR 13" LED Production Monitor Bundle with Gold Mount Power Kit

Bring your video production to the next level with the 1303 HDR 13" Full HD LED Production Monitor Bundle. This high-quality, professional-grade bundle includes a Gold Mount Power Kit and Pro Battery Cheese Plate, offering a comprehensive solution for your production needs.

The centerpiece of this bundle is the Full HD 13-inch LCD Monitor, boasting a 1500 NITs brightness for optimal daylight visibility. With a display resolution of 1920 x 1080 and a 13-inch screen diagonal, this monitor offers a clear, sharp image that is crucial for precision focus pulling. The monitor also features HDR Preview, HD Scopes, and 3D LUTs, providing a versatile tool for any video production setting.

The 1303 monitor is equipped with 2x SDI and HDMI in/out, making it compatible with a variety of devices. Its color accuracy (100% REC 709) and broad viewing angle make it ideal for collaboration, allowing you to preview what you're sending downstream using the Output Preview Page. Customizable focus assist and peaking features further enhance its usability.

Designed to perform in any lighting condition, the 1303 monitor's panel is approximately 3x brighter than most production monitors. Its optically bonded LCD combats glare and sunlight, ensuring clear visibility even in less than ideal shooting environments.

The included Gold Mount Power Kit and Pro Battery Cheese Plate provide a seamless power solution for the 1303 monitor. The Gold Mount Battery Bracket comes with an XLR cable and mounts quickly and securely to the Pro Battery Cheese Plate. This setup utilizes a 4-Pin XLR to supply power to the monitor, ensuring reliable performance throughout your production.

The bundle also includes a C-Stand Mount, specifically designed for the 1300 Series monitors, allowing for quick and secure mounting. A 3-sided sunhood is also provided, offering protection from the sun's glare and added privacy. It attaches securely using 6 thumbscrews and fits all 1300 series monitors.

With its durable build, innovative features, and versatile accessories, the 1303 HDR 13" Full HD LED Production Monitor Bundle is an invaluable tool for any professional video production setting.

SmallHD 1303 HDR 13" LED Production Monitor Bundle with Gold Mount Power Kit Features

  • Full HD 13" LED monitor with 1920 x 1080 resolution and 1500 NITs for superior daylight visibility
  • Professional-grade video production with HDR Preview, HD Scopes, and 3D LUTs for enhanced clarity
  • Versatile connectivity with dual SDI inputs/outputs and HDMI interface for comprehensive compatibility
  • Optically bonded LCD reduces glare, ensuring clear focus in challenging lighting conditions
  • Gold Mount Power Kit and Pro Battery Cheese Plate for reliable, integrated power supply
  • Quick and secure C-Stand Mount and 3-sided sunhood included for convenient field use

Key Features

  • Experience superior clarity with the SmallHD 1303 HDR's 1920x1080 Full HD LED monitor.
  • Achieve peak performance with the included Gold Mount Power Kit for extended battery life.
  • Enhance on-set workflow using the monitor's HDMI and SDI cross-conversion capabilities.
  • Ensure accurate colors with 100% Rec. 709 color gamut, ideal for professional video work.
  • Mount your monitor easily with the included C-Stand Mount for flexible positioning options.
  • Protect your investment with the bundled screen protector, maintaining display integrity.

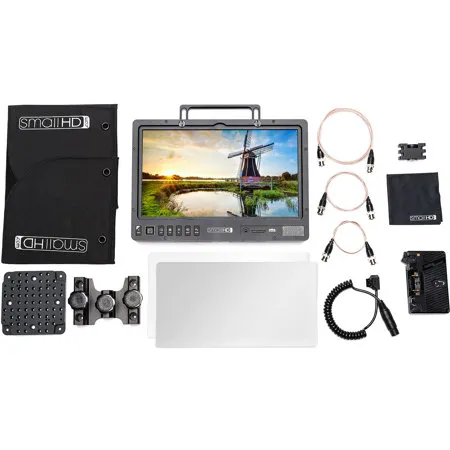

What's in the box:

  • SmallHD 1303 HDR 13 " Full HD LED Production Monitor
  • 6' HDMI Cable
  • AC Power Cord
  • Gold Mount Power Kit
  • Pro Battery Cheese Plate
  • C-Stand Mount
  • Three-Sided Sun Hood
  • Screen Impact Protector
  • Ultra Matte Screen Protector
  • RapidRail Mount
  • 12 " Thin BNC Cable
  • 24 " Thin BNC Cable
  • 48 " Thin BNC Cable
  • SmallHD 1 Year Limited Warranty
