SmallHD 1303 HDR 13" Full HD LED Production Monitor Bundle, Includes V-Mount Power Kit and Pro Battery Cheese Plate

SKU: SMON1303HVMK MFR: MON-1303HDR-VM-KIT
Earn VIP Reward Points

Key Features

  • Experience stunning clarity on the 13" SmallHD monitor with its Full HD 1920x1080 resolution.
  • Achieve perfect focus with Focus Assist, ensuring your shots are sharp and professional every time.
  • Enjoy versatile connectivity with both HDMI and SDI inputs/outputs for seamless integration.
  • This production monitor bundle includes a V-Mount kit for extended, reliable battery power.
  • The 1500 nits bright display ensures clear visibility, even in direct sunlight for outdoor shoots.
  • Customize your display with custom LUT support, creating unique looks directly on the monitor.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$699.99

4 Year

$849.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

SmallHD 1303 HDR 13" LED Production Monitor Bundle with V-Mount Power Kit Specifications

Display

Display

Jump to...
  • Panel Type

    IPS

  • Size Diagonal

    13"

  • Resolution

    1920 x 1080

  • Pixel Density

    170 PPI

  • Aspect Ratio

    16:9

  • Active Area

    11.59" x 6.52"

  • Brightness

    1500 nits

  • Contrast

    1140:1

  • Color Gamut

    100% Rec.709

  • Color Depth

    10 bit

  • Viewing Angle

    178 deg.

  • Backlight Type

    LED

  • Adjustable Backlight

    Yes

  • Temperature Adaptive Color

    No

Input Signal Types/Formats

Jump to...
  • 3G-SDI

    YCC 4:2:2 at 10 bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

  • HD-SDI

    YCC 4:2:2 at 10 bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080psF25, 1080psF24, 1080psF23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

  • SD-SDI

    480i29.97, 576i25

  • HDMI

    Supports YCC 4:2:2 at 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50

  • Component

    Not Supported

  • Composite

    Not Supported

  • Audio

    HDMI & SDI Monitor through Speakers in Front Bezel or through Headphone Jack Metering up to 8 channels

Output Signal Types/Formats

Jump to...
  • 3G-SDI

    YCC 4:2:2 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88,

  • HD-SDI

    YCC 4:2:2 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 all at 8 bits

  • SD-SDI

    Not Supported

  • HDMI

    Supports YCC 4:2:2 at 8 bits, RGB & YCC 4:4:4 at 8 bits: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i120, 480i119.88, 480i60, 480i59.94, 576i100, 576i50

  • Component

    Not Supported

  • Composite

    Not Supported

  • Audio

    Audio sent downstream unless a LUT is loaded on the output page which disables Audio out

Connector Type

Jump to...
  • SDI

    2x 3G Inputs, 2x 3G Outputs

  • HDMI

    1x Input, 1x Output

  • Component

    Not Supported

  • Composite

    Not Supported

  • Audio

    1x Headphone Jack on Front of Monitor

  • Power In

    1x XLR 4 pin Input 12-34VDC, 1x Lemo Output 12VDC at 4A Max

  • Power Out

    1x XLR 4 pin Input 12-34VDC, 1x Lemo Output 12VDC at 4A Max

  • USB

    1x Front USB2, 2x Rear USB2

Controls

Jump to...
  • Primary Control Interface

    Joystick Navigation, Dedicated Back Button. Additional Dedicated buttons for: Image Capture; LUT Selection; Backlight Level; Input Selection; Scopes Toggle.

  • Record/Capture

    Dedicated Image Capture Button on Front Bezel

Data I/O

Jump to...
  • Storage

    SD Card for LUTs, Captured Images, Image Overlays, Profile Saving & Loading, Firmware Upgrades

  • USB

    1 Front & 2 Rear USB Ports for power (1.5A shared total), LUT Loading, Profile Saving & Loading

  • Connector Type

    1x XLR 4-pin 12 - 34VDC IN; 12V Lemo 2-pin OUT 4A Max

  • Voltage

    12 - 34VDC

  • Power Consumption

    25 - 39W

  • Recommended Power Supply

    AC - DC Power Converter "Brick" Included with Monitor 110 - 240VAC 50 - 60 HZ INPUT; 15V - 6A OUTPUT

  • Battery Types

    V Mount via 4 pin XLR Connector

  • Output Voltage

    12V, 2A max via LEMO Connector

Software

Jump to...
  • Pixel Zoom (Type)

    2x & 4x with smooth pan via pinch zoom gesture

  • Frame Guides

    Preset Aspect Ratios & Customizable

  • DSLR Scale

    Canon 5DMkii & Canon 7D

  • Custom Scale

    Underscan Only

  • Anamorphic De-Squeeze

    1.33x, 1.5x, 1.66x, 2.0x

  • Image Rotate

    Automatic or Manual Control

  • Image Flip

    Automatic or Manual Control

  • Cross Conversion

    Yes: HDMI to SDI & SDI to HDMI

  • Focus Assist (Colors)

    User Adjustable Color Style and Intensity

  • Peaking

    User Adjustable Intensity

  • False Color

    Spectrum, Arri Style and Fully User Customizable

  • Zebra

    Dual - User Configurable

  • Waveform

    Luma & RGB Style, Fully User Customizable with Region of Interest Highlighting

  • Vectorscope

    Yes

  • PIP

    No

  • RGB Parade

    Fully User Customizable

  • Histogram

    Luma & RGB Style

  • Horizon Indicator

    No

  • Image Capture

    With Dedicated Button and Image Gallery

  • Custom LUTS

    Loadable as Looks on Pages or as System wide Color Calibration via the settings menu

  • LUT Creation

    No

  • LUT Downstream

    Applied on Output Preview Page

  • LUT Import

    Via SD Card or USB Storage Device

  • Image Overlay

    Opacity Slider and Blink Setting

  • Blue Only

    No

  • Audio Meters

    Up to 8 channel

Environmental

Jump to...
  • Compliance

    FCC, IC, CE, RoHS

  • Operating Temperature

    32 to 100 deg. F (0 to 38 deg. C)

  • Storage Temperature

    33 to 115 deg. F (1 to 46 deg. C)

  • Screen Protection

    Acrylic or Anti-Reflective Acrylic screen protector available as an option

  • Mount Points

    2x 1/4"-20 on Top, Left & Right sides; RapidRail - Cold Shoe style rails on rear of monitor

  • Dimensions (HxWxD)

    Monitor: 9 x 13 x 2.88" (22.86 x 33.02 x 7.32cm)
    V-Mount Power Kit + Cheese Plate: 5 x 5 x 2" (12.70 x 12.70 x 5.08cm)
    C-Stand Mount: 5 x 5 x 1.5" (12.70 x 12.70 x 3.81cm)
    Sunhood: 8.25 x 12.75 x 8.5" (20.96 x 32.39 x 21.59cm)
    Screen Impact Protector: 6.9 x 12 x 0.12" (17.53 x 30.48 x 0.30cm)
    RapidRail Mount: 1.25 x 2 x 1" (3.18 x 5.08 x 2.54cm)

  • Weight

    Monitor: 128 oz (3628.74g) without battery
    V-Mount Power Kit + Cheese Plate: 24 oz (680.39g)
    C-Stand Mount: 14.4 oz (408.23g)
    Sunhood: 16 oz (453.59g)
    Screen Impact Protector: 12 oz (340.19g)
    RapidRail Mount: 3 oz (85.05g)
    12" Cable: 1 oz (28.35g)
    24" Cable: 1 oz (28.35g)
    48" Cable: 1.6 oz (45.36g)

  • UPC Code

    855534007564

About SmallHD 1303 HDR 13" LED Production Monitor Bundle with V-Mount Power Kit

It's time to elevate your video production experience with the 1303 HDR 13" Full HD LED Production Monitor Bundle, a high-quality, durable, and innovative solution for professionals in the field. This efficient and reliable monitor bundle is designed to offer unparalleled clarity and precision, with a 1920 x 1080 display resolution on a 13-inch screen that ensures every detail is captured with utmost accuracy.

The 1303 HDR monitor boasts an impressive daylight viewable 1500nit brightness, making it an ideal companion for outdoor shoots or brightly lit environments. Its high dynamic range (HDR) preview enhances the visual experience, providing a wider color gamut and improved contrast. The HD scopes and 3D LUTs support ensures that you have all the necessary tools for advanced video monitoring and color calibration.

Clarity is key in video production, and the 1303 monitor delivers just that. Its pixel density is perfect for precision focus pulling, a critical task when time and measurements are limited. The low latency display aids in achieving sharp, accurate focus, ensuring your footage is always crisp and clear.

Collaboration is made easy with the 1303 monitor's calibrated display, boasting 100% REC 709 color accuracy and a broad viewing angle. This makes it simple to share your work with clients and directors on set, ensuring everyone is on the same page. The Output Preview Page allows you to preview what's being sent downstream, while customizable focus assist and peaking features enhance your monitoring capabilities.

The 1303 monitor shines even in challenging lighting conditions, thanks to its optically bonded LCD that significantly reduces glare and reflections. This feature, combined with the panel's exceptional brightness, allows for focus pulling in less than ideal shooting environments.

Powering the 1303 monitor is a breeze with the included V-Mount Power Kit and Pro Battery Cheese Plate. The Anton Bauer V-Mount Battery Bracket comes with an XLR cable and mounts quickly and securely to the Cheese Plate, providing a robust power solution for the 1303, 1700, and 2400 series monitors. The 4-Pin XLR connection ensures a steady power supply to the monitor, while the 1/4" mounting points allow for the attachment of additional accessories.

Transportation and setup are made simple with the Rapid Rail Mounting System and the VESA compatible mounting accessory. Whether you're transitioning from a table to a C-Stand or traveling to different locations, the 1303 monitor is built to handle the demands of on-the-go production.

The bundle also includes a C-Stand mount specifically designed for the 1300 Series monitors, enabling quick and secure mounting. Additionally, the 3-sided sunhood, which attaches effortlessly using 6 thumbscrews, provides both sun protection and privacy during shoots.

In summary, the 1303 HDR 13" Full HD LED Production Monitor Bundle is the perfect blend of portability and functionality, with a razor-sharp display and rugged build quality that stands up to the rigors of professional video production. Whether you're on set or on location, this monitor bundle is designed to boldly enhance your monitoring workflow like never before.

SmallHD 1303 HDR 13" LED Production Monitor Bundle with V-Mount Power Kit Features

  • Full HD 13" LED monitor with 1920 x 1080 resolution for superior image clarity
  • Daylight viewable with 1500nit brightness and HDR support for outdoor shooting
  • Multiple inputs including 3G HD-SDI, HD-SDI, HDMI, and SDI for versatile connectivity
  • Optically bonded LCD for reduced glare and enhanced focus in bright environments
  • V-Mount Power Kit and Pro Battery Cheese Plate for reliable, on-the-go power solutions
  • Rapid Rail Mounting System and VESA compatibility for easy setup and transportation

Key Features

  • Experience stunning clarity on the 13" SmallHD monitor with its Full HD 1920x1080 resolution.
  • Achieve perfect focus with Focus Assist, ensuring your shots are sharp and professional every time.
  • Enjoy versatile connectivity with both HDMI and SDI inputs/outputs for seamless integration.
  • This production monitor bundle includes a V-Mount kit for extended, reliable battery power.
  • The 1500 nits bright display ensures clear visibility, even in direct sunlight for outdoor shoots.
  • Customize your display with custom LUT support, creating unique looks directly on the monitor.

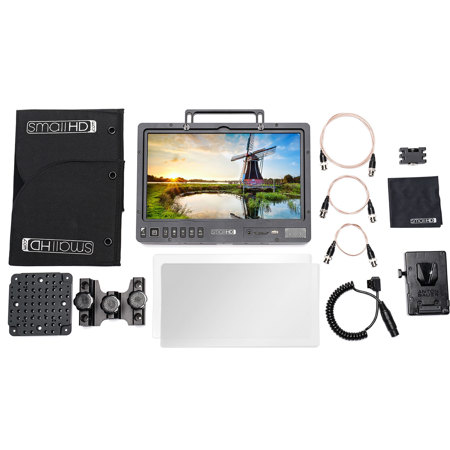

What's in the box:

  • SmallHD 1303 HDR 13 " Full HD LED Production Monitor
  • 6' HDMI Cable
  • AC Power Cord
  • V-Mount Power Kit
  • Pro Battery Cheese Plate
  • C-Stand Mount
  • Three-Sided Sun Hood
  • Screen Impact Protector
  • Ultra Matte Screen Protector
  • RapidRail Mount
  • 12 " Thin BNC Cable
  • 24 " Thin BNC Cable
  • 48 " Thin BNC Cable
  • SmallHD 1 Year Limited Warranty
