SmallHD 702 OLED 7.7" On-Camera Monitor Bundle, 1280x800

SKU: SMON702OLEDK

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

SmallHD 702 OLED 7.7" On-Camera Monitor Bundle, 1280x800 Specifications

Display

Display

Jump to...
  • Panel Type

    OLED

  • Size Diagonal

    7.7"

  • Resolution

    1280 x 800

  • Pixel Density

    191

  • Aspect Ratio

    16:10 Native, 16:9 Video Image

  • Active Area

    7.7

  • Brightness

    300

  • Contrast

    10,000:1

  • Color Gamut

    100% Rec 709, 85% NTSC

  • Color Depth

    8-bit Display (10-bit Color Processing)

  • Viewing Angle

    160+

  • Adjustable Backlight

    Yes

  • Temperature Adaptive Color

    Yes

Input Signal Types/Formats

Jump to...
  • 3G-SDI

    1080p50, 1080p59.94, 1080p60, 1080i100, 1080i119.88, 1080i120

  • HD-SDI

    RGB/YCC 4:2:2 and 4:4:4, 1080p60, 1080i60,1080i59.94,1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25 , 1080pSF29.97, 720p60, 720p59.94, 720p50

  • SD-SDI

    YCC 4:2:2 at 10-bits: 480i29.97, 576i25

  • HDMI

    Supports 8/10/12 bit color, 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25, 1080pSF30, 720p60, 720p59.94 , 720p50

  • Component

    Not Supported

  • Composite

    Not Supported

  • Audio

    HDMI and SDI

Output Signal Types/Formats

Jump to...
  • 3G-SDI

    YCC 4:2:2 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 all at 8 bits

  • HD-SDI

    RGB/YCC 4:2:2 and 4:4:4, 1080p60, 1080i60,1080i59.94,1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25 , 1080pSF29.97, 720p60, 720p59.94, 720p50

  • SD-SDI

    YCC 4:2:2 at 10-bits: 480i29.97, 576i25

  • HDMI

    Supports 8/10/12 bit color, 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25, 1080pSF30, 720p60, 720p59.94 , 720p50

  • Component

    Not Supported

  • Composite

    Not Supported

  • Audio

    No Audio Output

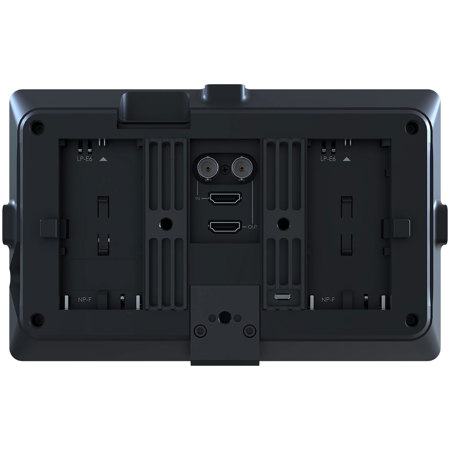

Connector Type

Jump to...
  • SDI

    1 SDI (in), 1 SDI (out)

  • HDMI

    1 HDMI (in), 1 HDMI (out)

  • Audio

    1/8in Mini Stereo Headphone

  • Power In

    LP-E6 style / Sony L style

Controls

Jump to...
  • Primary Control Interface

    Joystick + "Back" button

  • Record/Capture

    Capture button

  • User Defined Functions

    Uses "Pages" in conjunction with the Joystick control to provide any number of user defined monitoring options.

Data I/O

Jump to...
  • Storage

    SD Card (full-size)

  • Connector Type

    LP-E6/Sony L style

  • Battery Plate Included

    Canon LP-E6 / Sony NPF

  • Overload Protection

    Yes

  • Smart Battery Compliant

    Yes

Software

Jump to...
  • Pixel Zoom (Type)

    2x & 4x with smooth pan via pinch zoom gesture

  • Frame Guides

    Preset Aspect Ratios & Customizable

  • DSLR Scale

    Canon 5DMkii & Canon 7D

  • Custom Scale

    Underscan Only

  • Anamorphic De-Squeeze

    1.33x, 1.5x, 1.66x, 2.0x

  • Image Rotate

    Automatic or Manual Control

  • Image Flip

    Automatic or Manual Control

  • Cross Conversion

    Yes: HDMI to SDI & SDI to HDMI

  • Focus Assist (Colors)

    User Adjustable Color Style and Intensity

  • Peaking

    User Adjustable Intensity

  • False Color

    Spectrum, Arri Style and Fully User Customizable

  • Zebra

    Dual - User Configurable

  • Waveform

    Luma & RGB Style, Fully User Customizable with Region of Interest Highlighting

  • Vectorscope

    Yes

  • PIP

    No

  • RGB Parade

    Fully User Customizable

  • Histogram

    Luma & RGB Style

  • Horizon Indicator

    No

  • Image Capture

    With Dedicated Button and Image Gallery

  • Custom LUTS

    Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu

  • LUT Creation

    No

  • LUT Downstream

    Applied on Output Preview Page

  • LUT Import

    Via SD Card or USB Storage Device

  • Image Overlay

    Opacity Slider and Blink Setting

  • Blue Only

    No

  • Audio Meters

    Up to 8 channel

Environmental

Jump to...
  • Compliance

    CE

  • Operating Temperature

    30 to 90 deg. F (-1 to 32 deg. C)

  • Storage Temperature

    0 to 120 deg. F (-18 to 49 deg. C)

  • Screen Protection

    Includes: Impact resistant Gorilla Glass screen protection

  • Mount Points

    (7) 1/4-20 thread points (top, bottom, back & sides)

  • Dimensions

    Monitor (HxWxD): 5.2 x 1.1 x 8.25" (13.21 x 2.79 x 20.96cm)
    Hard Case (HxWxD): 4.9 x 10.8 x 9.9" (12.45 x 27.43 x 25.15cm)
    Interior: 9.6 x 7.4 x 4.0" (24.38 x 18.80 x 10.16cm)

  • Weight

    Monitor: 26 oz (737.09g) without battery)
    Hard Case: 39.2 oz (1111.30g)

  • UPC Code

    855534007540

About SmallHD 702 OLED 7.7" On-Camera Monitor Bundle, 1280x800

7.7-inch OLED Monitor with Wide Color Gamut
Fully featured on-camera monitor with stunning OLED color, HD waveform and scopes, 3D LUT support and a 4-sided sunhood.

• Stunning OLED Color
• SDI+ HDMI in/out
• 1280x 800 display resolution
• 7.7-inchscreen diagonal
• Scopes, Focus Assist, Pixel Zoom

PageBuilder OS
All SmallHD on-camera monitors are equipped with the powerful and easy-to-use PageBuilder operating system.

Wide Color Gamut
Each 702 OLED monitor comes from SmallHD precalibrated. Easily install your own 3D LUT calibration with advanced color management solutions like Light Illusion's, LightSpace CMS or SpectraCal's CalMAN. Load any 3D LUT via SD card using SmallHD's ColorFlow 3D LUT engine.

Software That Eliminates Hardware
Pagebuilder OS enables you to send your video signal downstream via the Output Preview page. Easily convert HDMI/SDI signals with Cross Conversion.

HD Waveform and Scopes
Display up to three, fully customizable Scopes on screen at a time with highly detailed data analysis.

Expose with Confidence
Exposure Assist supports both ARRI and Spectrum based false color, with built in IRE guides for reference. Utilize 2x Zebra to warn you when reaching a brightness level of your choosing. This is great for matching exposure across shots and cameras.

Versatile Image Framing
Select standard markers and safety areas that can be overlaid on the display as lines or matte overlays with custom opacity level and colors. Default aspect ratios include 4:3, 1.85, 2.39:1, 16:9 and Custom (user selectable).

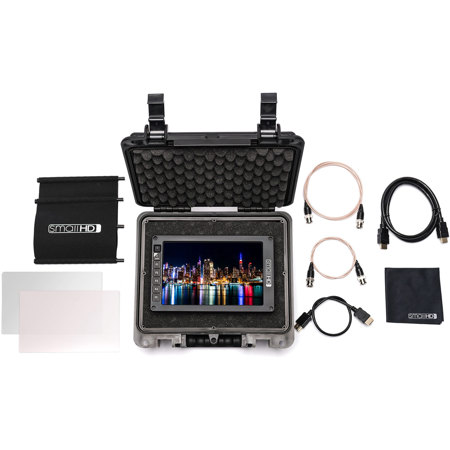

What's in the box:

  • SmallHD 702 OLED 7.7 " On-Camera Monitor
  • Medium Hard Case
  • Sun Hood
  • Nushield Dayvue 702 OLED Anti-Reflective Scratch Protector
  • Prok 702 OLED Screen Protector
  • 12 " Thin-Gauge HDMI Male Cable
  • 36 " HDMI to HDMI Male Cable
  • 24 " Thin BNC Cable
  • 48 " Thin BNC Cable
  • Microfiber Cleaning Cloth
  • SmallHD 1 Year Limited Warranty
