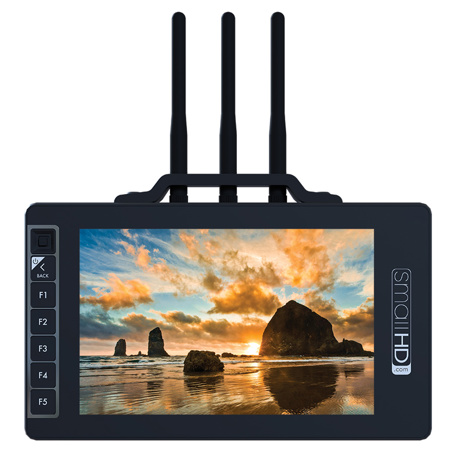

SmallHD 703 Bolt Lite 7" Director's Bundle, V-Mount
SKU: SMON703BTLVM
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Specs
Protection
Q&A
Questions & Answers
Reviews about this item
Review Summary
Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.
TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.
Invest In Your Gear and Peace Of Mind!
Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.
Repair or Replacement
If we can’t fix it, we’ll replace it at no additional cost.
Accidental Damage
Protect your product from drops, spills, and more.
Peace of Mind
Enjoy your gear without fear. We have you covered!
Failure Protection
When regular use of your product over time results in mechanical or electrical failure.
Zero Deductible
We will never charge you a deductible after the purchase of a plan.
Customer-Focused Support
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500
Browse our FAQ
SmallHD 703 Bolt Lite Specifications
Display
Display
Jump to...Panel Type
IPS LCD
Resolution
1920 x 1080
Pixel Density Ppi
323 ppi
Aspect Ratio
16:9
Active Area
7.02"
Brightness
2200
Contrast
1200:1
Color Gamut
70% NTSC
Color Depth
10-bit
Viewing Angle
178 deg. (CR<10)
Backlight Type
White LED
Input Signal Types Formats
Jump to...GSDI
YCC 4:2:2 at 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50
HDSDI
YCC 4:2:2 at 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SDSDI
YCC 4:2:2 at 10-bits: 480i29.97, 576i25
HDMI
YCC 4:2:2 at 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98,
HDMI (Contd.)
480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
Audio
SDI - Monitor through Headphone Jack - Metering up to 8 channels
Output Signal Types Formats
Jump to...GSDI
YCC 4:2:2 at 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
HDSDI
YCC 4:2:2 at 10-bits: 480i29.97, 576i25
SDSDI
YCC 4:2:2 at 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120,
SDSDI (Contd.)
480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
HDMI
SDI - Incoming Audio Stream is sent downstream via SDI connection
Connector Type
Jump to...SDI
1x 3G Input, 1x 3G Output
Audio
1x 1/8" Headphone Jack
Power In
1x Locking LEMO 2-pin Connectors Power Input
USB
1x Proprietary Locking LEMO 5-pin Connectors Power Input
Controls
Jump to...Primary Control Interface
Joystick Navigation, Dedicated Back/Power Button. 5 Additional User Assignable Function Buttons
Data I/O
Jump to...Storage
SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades, Profile Saving
USB
USB port supports storage devices for LUTs, Captured Images, Image Overlays, Profile Saving
Power
Jump to...Connector Type
1x Locking LEMO 2-pin Connectors Power Input
Voltage
With DV Battery Plate: 6.0 - 8.4V 7.2V Nominal
With High Voltage Battery Plate: 12 - 34V 14.4V Nominal
With LEMO Input: 12 - 34V MaxOverload Protection
Yes
Software
Jump to...Pixel Zoom Type
2x & 4x Zoom with smooth pan via joystick
Frame Guides
Yes: Preset Aspect Ratios & Customizable
DSLR Scale
Canon 5DMkii & Canon 7D
Custom Scale
Yes (Underscan Only)
Anamorphic Desqueeze
Yes: 1.33x, 1.5x, 1.66x, 2.0x
Image Rotate Manual/Automatic
Yes - Automatic or Manual Control
Image Flip Manual/Automatic
Yes - Automatic or Manual Control
Cross Conversion
Yes: HDMI to SDI & SDI to HDMI
Focus Assist Colors
Yes - User Adjustable Color Style and Intensity
Peaking
Yes - User Adjustable Intensity
False Color
Yes - Rainbow & Arri Style
Zebra
Yes - Dual - User Configurable
Waveform
Yes - Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope
Yes
RGB Parade
Yes - Fully User Customizable
Histogram
Yes - Luma & RGB Style
Horizon Indicator
Yes - With Dedicated Button
Image Capture
Yes - Loadable as Looks on Pages or as System wide Color Calibration via the settings menu
Dailies Recording playback
Yes - Available on SDI Out. Applied on Output Preview Page
Master Recording
Via SD Card or USB Storage Device
Wi-Fi Streaming
Yes with Opacity Slider and Blink Setting
Custom Luts
Yes - up to 8 channel
Wireless
Jump to...SDI Ancillary Data
Supports transmitting metadata, timecode and start/stop flags from certain camera manufacturers
Color Sampling
For SDI: YCbCr 4:2:2, 10-bit
Supported Resolutions
1080p60/59.94/50/30/29.97/25/24/23.98
1080psf30/29.97/25/24/23.98 1080i60/59.94/50 720p60/59.94/50 480i(NTSC)/576i(PAL)Video Compression
Visually lossless
Audio Compression
48KHz 24-bit PCM
Switches
On/Off
Wireless Network
5GHz (20&40Mhz), DFS Frequencies Available
RF Channel Selection
Auto only (NOT configurable)
Encryption
AES-130
RF Power
15dBm EIRP
Range
Up to 500' (152.40m) line of sight
Noise Rejection
Can coexist with Wi-Fi and 5GHz cordless phones
Environmental
Jump to...Compliance
FCC, IC, CE, RoHS
Operating Temperature
0 to 100 deg. F (-18 to 38 deg. C)
Storage Temperature
-4 to 120 deg. F (-20 to 49 deg. C)
Screen Protection
AR Coated Gorilla Glass Optical Bonding on Panel
Mount Points
1x 1/4"-20 Thread on left and right side of Monitor, 7x 1/4"-20
Thread on Bottom of Monitor, 7x 1/4"-20 Thread on Top of Monitor
Physical
Jump to...Dimensions (W x D)
1.21 x 8.4" (3.07 x 21.34cm)
5" high without antennas, 9.0 with antennasWeight
Without Battery: 32 oz (907.18g)
Other
Jump to...UPC Code
811786032792
About SmallHD 703 Bolt Lite
The 703 Bolt Lite brings Teradek and SmallHD technology together into a powerful, all-in-one handheld wireless monitoring solution.
SmallHD 703 Bolt Lite Features
- Ultra light, cable-less design
- Built-in 500ft Bolt Sidekick II receiver compatible with Bolt 500, 1000 and 3000
- SmallHD 703 monitor: 2200 nits, 1920 x 1080, IPS LCD
- Supports 100% of REC 709 color space
- V-Mount battery plate
- Monitor two input source simultaneously with Dual view mode
Join VIP PRO
2 Day Delivery on thousands of items!
Request a Callback
Chat one-on-one with an expert
Sell or Trade your Gear
Get started in 3 easy steps
Key Features
- Ultra light, cable-less design
- Built-in 500ft Bolt Sidekick II receiver compatible with Bolt 500, 1000 and 3000
- SmallHD 703 monitor: 2200 nits, 1920 x 1080, IPS LCD
- Supports 100% of REC 709 color space
- V-Mount battery plate
- Monitor two input source simultaneously with Dual view mode
What's in the box:
- 703 Bolt Lite 7" Wireless Monitor
- V-Mount Battery Bracket
- SmallHD 1 Year Limited Warranty
