SmallHD Cine 7 HD Touch Monitor w/Teradek Bolt 4K RX Module, V-Mount, Handles
See all SmallHD items

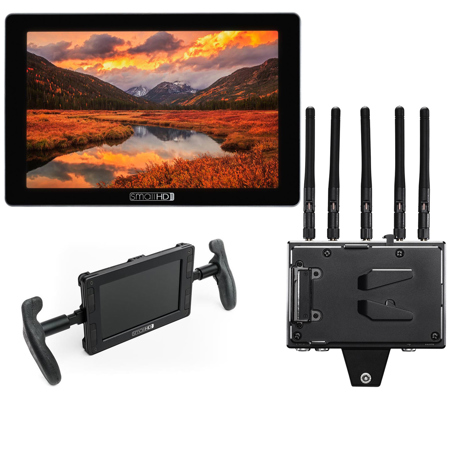

SmallHD Cine 7 7" Full HD Touchscreen On-Camera Monitor with Teradek Bolt 4K RX Monitor Module, V-Mount, Lightweight Rubber Handles

SKU: SMONCINE7A
(3)

This item is no longer available.

Recommended Alternatives

SmallHD CINE 7RED: Picture 1 regular
SmallHD Cine 7 7" Full HD Touchscreen Monitor Kit for RED KOMODO & DSMC3 Camera
$2,649.00
SmallHD INDIE 7RED: Picture 1 regular
SmallHD Indie 7 7" FHD Touchscreen Monitor Kit for RED KOMODO and DSMC3 Camera
$1,929.00$1,899.00
SmallHD Ultra 7: Picture 1 regular
SmallHD Ultra 7 7" WUXGA Touchscreen On-Camera Monitor
$3,099.00
SmallHD Indie 7: Picture 1 regular
SmallHD Indie 7 7" FHD On-Camera Monitor, w/750' V-Mount Receiver Module,Handles
$3,508.99
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2021-12-27T06:12:58

Rated 5 out of 5

A perfect monitor for on-camera.

It is perfect for my needs. I love the ability to add or remove modules. The screen is very responsive and bright enough to see in direct sun. That's all I can really ask for in a professional monitor. I upgraded from the 702 bright and can't go back. I was worried about smudges from my fingers, but it doesn't my viewing or experience at all. The lemo built in is such a wonderful feature too. The unit it lighter than my 702 as well. Can't go wrong with this kit.

Reid P.

2019-09-28T00:55:00

Rated 5 out of 5

An Accurate Surprise

I was a little hesitant to purchase this because I had heard small hd colors weren’t that accurate. But I was swayed by the Red camera control tech. And I was pleasantly surprised at how easy these monitors are to calibrate with the X-Rite module and the results! Great monitor. Accurate. Every tool you need and the OS is incredible.

ADAM R.

2019-08-19T10:15:12

Rated 2 out of 5

Great monitor and a fair price.

So far a great monitor. I like the size. The low profile size makes it easy to work with on set.

Michael B.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

SmallHD Cine 7 Specifications

Display

Display

Jump to...

  • Panel Type

    IPS LCD

  • Diagonal Size

    7"

  • Resolution

    1920x1200

  • Pixel Density

    322 ppi

  • Aspect Ratio

    16:10

  • Active Area

    5.95 x 3.72

  • Brightness

    1800 NITs

  • Contrast Ratio

    1000:1

  • Gamut

    100% DCI-P3 Coverage

  • Color Depth

    10-bit Processing (8-bit panel)

  • Viewing Angle

    160

  • Backlight Type

    LED

  • Adjustable Backlight

    Yes

  • Brightness

    1800 NITs

  • Color

    100% DCI-P3 Coverage

Input Signal

Jump to...

  • 3G-SDI Input Types

    YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

  • HD-SDI Input Types

    YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

  • SD-SDI Input Types

    YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

  • HDMI Input Types

    YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840x2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24,1080p23.98, 720p120, 720p119.88, 720p100,720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50

  • Audio Input Types

    HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal

Jump to...

  • 3G-SDI Output Types

    YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

  • HD-SDI Output Types

    YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

  • SD-SDI Output Types

    YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

  • HDMI Output Types

    YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200

  • Audio Output Types

    HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

Connector Type

Jump to...

  • SDI

    1x BNC 3G input and 1x BNC 3G selectable input/output

  • HDMI

    1 input and 1 output: HDMI Type-D Receptacles (full size)

  • Audio

    1x 3.5mm 3-pin Stereo Headphone Jack

  • Power In

    2-pin Locking

  • USB

    1x USB 2.0 Micro-B receptacle

Controls

Jump to...

  • Primary

    Touch Screen

  • Record Capture

    Image Capture Tool

Power

Jump to...

  • Connector

    LEMO

  • Voltage

    DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max

  • Power Supply

    Recommend DC 12-15V at -2.5 amp or greater

  • Battery Types

    L-Series, V Mount, Gold Mount

  • Overload Protection

    DC input: Reverse polarity

  • Battery Chemistry

    Li-ion

  • Battery Charging Time

    Monitor does not support the charging of batteries

  • Power Plug-in

    2-Pin Locking Connector

  • Battery Info

    Required, Not Included

  • Battery Material

    Lithium-ion

  • Battery Quantity

    2

  • Battery Type

    -

Software

Jump to...

  • Pixel Zoom

    1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom

  • Frame Guides

    Preset Aspect Ratios & Customizable

  • DSLR Scale

    Canon 5DMkii & Canon 7D

  • Custom Scale

    Yes (Underscan Only)

  • Anamorphic De-Squeeze

    0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x

  • Image Rotate

    Automatic or Manual Control

  • Image Flip

    Automatic or Manual Control

  • Cross Conversion

    Yes: HDMI to SDI & SDI to HDMI

  • Focus Assist

    User Adjustable Color Style and Intensity

  • Peaking

    User Adjustable Intensity

  • False Color

    Rainbow, Arri Style, Custom with up to 10 nodes

  • Zebra

    Dual - User Configurable

  • Waveform

    Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting

  • Vectorscope

    Yes

  • RGB Parade

    Fully User Customizable

  • Histogram

    Luma & RGB Style

  • Image Capture

    Yes

  • Custom LUTS

    Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu

  • LUT Downstream

    Available on SDI or HDMI Out. Applied on Output Preview Page

  • LUT Import

    via SD Card or USB Storage Device

  • Overlay

    With Opacity Slider and Blink Setting

  • Audio Meters

    HDMI & SDI up to 8 channel

Environmental

Jump to...

  • Compliance

    FCC, IC, CE, RoHS

  • Operating Temperature

    30 to 100 Degree F (-1 to 37 Degree C)

  • Storage Temperature

    0 to 120 Degree F (-17 to 48 Degree C)

  • Mount Points

    Four 1/4-20 Mount Points (Left, Right, Bottom, and Back)

  • Construction

    Anodized aluminum chassis

Physical

Jump to...

  • Dimensions (H x W x L)

    4.67 x 1.32 x 7.09" (11.86 x 3.35 x 18cm)

  • Weight

    20 oz (566.9g)

Other

Jump to...

  • UPC Code

    192223190511

About SmallHD Cine 7

FEATURED REVIEWS

An Accurate Surprise

By ADAM R.

I was a little hesitant to purchase this because I had heard small hd colors weren’t that accurate. But I was swayed by the Red camera control tech. And I was pleasantly surprised at how easy these monitors are to calibrate with the X-Rite module and the results! Great monitor. Accurate. Every tool you need and the OS is incredible.

A perfect monitor for on-camera.

By Reid P.

It is perfect for my needs. I love the ability to add or remove modules. The screen is very responsive and bright enough to see in direct sun. That's all I can really ask for in a professional monitor. I upgraded from the 702 bright and can't go back. I was worried about smudges from my fingers, but it doesn't my viewing or experience at all. The lemo built in is such a wonderful feature too. The unit it lighter than my 702 as well. Can't go wrong with this kit.

Professional and expandable on-camera monitor

Cine 7 is the ultimate 7" on-camera monitor for cinematographers, offering a color accurate wide-gamut display, cinema camera control, as well as Teradek RT and Bolt 4K integration.


- Sony L Series Battery Bracket -
Sony battery mounting solution for SmallHD Indie 7, 702 Touch, and CINE 7 Monitors

Utilize up to two Sony L Series Batteries. Bracket installs directly to rear of 702 Touch, Cine 7, or Indie 7 monitors.

SmallHD Cine 7 Features

  • Full HD 7-inch IPS LCD with 1920x1200 resolution
  • 10-bit color processing in 100% DCI-P3
  • 1800 nits of brightness
  • 4K & HDR compatible
  • 160-degree viewing angle

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Request a Callback

Chat one-on-one with an expert

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Full HD 7-inch IPS LCD with 1920x1200 resolution
  • 10-bit color processing in 100% DCI-P3
  • 1800 nits of brightness
  • 4K & HDR compatible
  • 160-degree viewing angle

What's in the box:

  • SmallHD Cine 7 7" Full HD Touchscreen On-Camera Monitor
  • Teradek Bolt 4K RX Monitor Module for Cine 7 and 702 Touch (V-Mount)
  • SmallHD Lightweight Black Rubber Handles with Neoprene Neck Strap
  • Sony L Series Battery Bracket
  • SmallHD 1 Year Limited Warranty
