SmallHD Cine 7 7" Full HD Touchscreen On-Camera Monitor, Bundle with Monitor Mount, Lithium-Ion Battery Kit, Gold Mount Bracket

SKU: SMONCINE7BD6 MFR: MON-CINE-7 BD6
Earn VIP Reward Points

PACKAGE INCLUDES:

  • SmallHD Cine 7 7" Full HD Touchscreen On-Camera Monitor
    SmallHD Cine 7 7" Full HD Touchscreen On-Camera Monitor
  • +
  • Wooden Camera Universal Ultra Arm Mini Monitor Mount, 1/4-20 & 3/8-16 Screw Knob
    Wooden Camera Universal Ultra Arm Mini Monitor Mount, 1/4-20 & 3/8-16 Screw Knob
  • +
  • SmallHD 24" Thin Gauge BNC Male to BNC Male SDI Cable
    SmallHD 24" Thin Gauge BNC Male to BNC Male SDI Cable
  • +
  • 5 more

Note: 1 or more items are unavailable for immediate shipping

Key Features

  • Experience superior clarity with the SmallHD Cine 7's Full HD on-camera monitor.
  • Achieve accurate focus with the touchscreen monitor's enhanced focus assist tools.
  • Enjoy seamless integration using the monitor's HDMI and SDI cross-conversion feature.
  • Mount your monitor easily using the included Wooden Camera Universal Ultra Arm Mini.
  • Power your on-camera monitor reliably with the included Core SWX battery kit.
  • Optimize your exposure with customizable waveform and false color tools on this monitor.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$179.99

4 Year

$215.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2021-12-27T06:12:58

Rated 5 out of 5

A perfect monitor for on-camera.

It is perfect for my needs. I love the ability to add or remove modules. The screen is very responsive and bright enough to see in direct sun. That's all I can really ask for in a professional monitor. I upgraded from the 702 bright and can't go back. I was worried about smudges from my fingers, but it doesn't my viewing or experience at all. The lemo built in is such a wonderful feature too. The unit it lighter than my 702 as well. Can't go wrong with this kit.

Reid P.

2019-09-28T00:55:00

Rated 5 out of 5

An Accurate Surprise

I was a little hesitant to purchase this because I had heard small hd colors weren’t that accurate. But I was swayed by the Red camera control tech. And I was pleasantly surprised at how easy these monitors are to calibrate with the X-Rite module and the results! Great monitor. Accurate. Every tool you need and the OS is incredible.

ADAM R.

2019-08-19T10:15:12

Rated 2 out of 5

Great monitor and a fair price.

So far a great monitor. I like the size. The low profile size makes it easy to work with on set.

Michael B.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

SmallHD Cine 7 Specifications

Display

Display

Jump to...
  • Panel Type

    IPS LCD

  • Diagonal Size

    7" (17.78cm)

  • Resolution

    1920x1200

  • Pixel Density

    322 ppi

  • Aspect Ratio

    0.673611111111111

  • Active Area

    5.95 x 3.72

  • Brightness

    1800 NITs

  • Brightness

    1800 NITs

  • Contrast Ratio

    41.6673611111111

  • Gamut

    100% DCI-P3 Coverage

  • Color Depth

    10-bit Processing (8-bit panel)

  • Viewing Angle

    160

  • Backlight Type

    LED

  • Adjustable Backlight

    Yes

  • Color

    100% DCI-P3 Coverage

Input Signal

Jump to...
  • 3G-SDI Input Types

    YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

  • HD-SDI Input Types

    YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

  • SD-SDI Input Types

    YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

  • HDMI Input Types

    YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840x2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24,1080p23.98, 720p120, 720p119.88, 720p100,720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50

  • Audio Input Types

    HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal

Jump to...
  • 3G-SDI Output Types

    YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

  • HD-SDI Output Types

    YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

  • SD-SDI Output Types

    YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

  • HDMI Output Types

    YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200

  • Audio Output Types

    HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

Connector Type

Jump to...
  • SDI

    1x BNC 3G input and 1x BNC 3G selectable input/output

  • HDMI

    1 input and 1 output: HDMI Type-D Receptacles (full size)

  • Audio

    1x 3.5mm 3-pin Stereo Headphone Jack

  • Power In

    2-pin Locking

  • USB

    1x USB 2.0 Micro-B receptacle

Controls

Jump to...
  • Primary

    Touch Screen

  • Record Capture

    Image Capture Tool

  • Connector

    LEMO

  • Voltage

    DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max

  • Power Supply

    Recommend DC 12-15V at -2.5 amp or greater

  • Battery Types

    L-Series, V Mount, Gold Mount

  • Overload Protection

    DC input: Reverse polarity

  • Battery Chemistry

    Li-ion

  • Battery Charging Time

    Monitor does not support the charging of batteries

  • Power Plug-in

    2-Pin Locking Connector

  • Battery Info

    Required, Not Included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

Software

Jump to...
  • Pixel Zoom

    1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom

  • Frame Guides

    Preset Aspect Ratios & Customizable

  • DSLR Scale

    Canon 5DMkii & Canon 7D

  • Custom Scale

    Yes (Underscan Only)

  • Anamorphic De-Squeeze

    0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x

  • Image Rotate

    Automatic or Manual Control

  • Image Flip

    Automatic or Manual Control

  • Cross Conversion

    Yes: HDMI to SDI & SDI to HDMI

  • Focus Assist

    User Adjustable Color Style and Intensity

  • Peaking

    User Adjustable Intensity

  • False Color

    Rainbow, Arri Style, Custom with up to 10 nodes

  • Zebra

    Dual - User Configurable

  • Waveform

    Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting

  • Vectorscope

    Yes

  • RGB Parade

    Fully User Customizable

  • Histogram

    Luma & RGB Style

  • Image Capture

    Yes

  • Custom LUTS

    Loadable as Looks on Pages or as System wide Color Calibration via the settings menu

  • LUT Downstream

    Available on SDI or HDMI Out. Applied on Output Preview Page

  • LUT Import

    via SD Card or USB Storage Device

  • Overlay

    With Opacity Slider and Blink Setting

  • Audio Meters

    HDMI & SDI up to 8 channel

Environmental

Jump to...
  • Compliance

    FCC, IC, CE, RoHS

  • Operating Temperature

    30 to 100 Degree F (-1 to 37 Degree C)

  • Storage Temperature

    0 to 120 Degree F (-17 to 48 Degree C)

  • Mount Points

    Four 1/4-20 Mount Points (Left, Right, Bottom, and Back)

  • Construction

    Anodized aluminum chassis

Physical

Jump to...
  • Dimensions (H x W x L)

    4.67 x 1.32 x 7.09" (11.86 x 3.35 x 18cm)

  • Weight

    20 oz (566.9g)

  • UPC Codes

    192223249745, 665415770216, 811786033041, 811786033003, 857497005960, 811786030842, 811786031139, 811786031337, 606184859061

Related Articles & Videos

The Best On-Camera Monitors & External Camera Screens

The Best On-Camera Monitors & External Camera Screens

Do you need a bigger monitor for upcoming video shoots? Check out our top picks for the best on-camera monitor and external camera screen.
Read more

About SmallHD Cine 7

FEATURED REVIEWS

An Accurate Surprise

By ADAM R.

I was a little hesitant to purchase this because I had heard small hd colors weren’t that accurate. But I was swayed by the Red camera control tech. And I was pleasantly surprised at how easy these monitors are to calibrate with the X-Rite module and the results! Great monitor. Accurate. Every tool you need and the OS is incredible.

A perfect monitor for on-camera.

By Reid P.

It is perfect for my needs. I love the ability to add or remove modules. The screen is very responsive and bright enough to see in direct sun. That's all I can really ask for in a professional monitor. I upgraded from the 702 bright and can't go back. I was worried about smudges from my fingers, but it doesn't my viewing or experience at all. The lemo built in is such a wonderful feature too. The unit it lighter than my 702 as well. Can't go wrong with this kit.

Be at the forefront of cinematic innovation with the SmallHD Cine 7 7" Full HD Touchscreen On-Camera Monitor. This high-end, feature-rich device is designed for cinematographers who demand precision color accuracy, comprehensive camera control, and seamless integration with Teradek RT and Bolt 4K.

The SmallHD Cine 7 monitor stands out with its ultra-bright 1800 nits, 322 ppi, 1920 x 1200 IPS LCD touchscreen, offering 3D LUT compatibility. The intuitive PageOS 4 interface simplifies the activation and saving of different monitoring tools and focusing aids, enhancing user experience. The monitor also includes an L-series mount battery plate at the rear, designed to accept two L-series batteries, ensuring a reliable power supply for your device.

Experience seamless connectivity with the Cine 7 monitor's support for UHD 4K HDMI output, along with various HD and SD formats. The monitor boasts a full-size HDMI input, HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output, facilitating smooth and uninterrupted connectivity. The monitor's cross-conversion support from HDMI to SDI and vice versa adds to its versatility.

The included dual L-series battery plate allows for hot-swapping of batteries, ensuring an uninterrupted power supply during critical shooting moments. The battery plate is also swappable, providing additional flexibility.

The Sony L Series Battery Bracket enhances your power options. This battery mounting solution is compatible with SmallHD Indie 7, 702 Touch, and CINE 7 Monitors, allowing the use of up to two Sony L Series Batteries. The bracket can be easily installed directly to the rear of the 702 Touch, Cine 7, or Indie 7 monitors.

The SmallHD Cine 7 monitor offers multiple mounting points with four 1/4"-20 points on the top, left, right, and back, allowing you to customize the rig according to your shooting needs.

The Cine 7 monitor also includes advanced RED Control Features, such as run/stop, color controls, exposure controls, status, color temperature, video format, playback, shutter, and menu control. The extensive software features include pixel zoom, DSLR scale, custom scale, anamorphic de-squeeze, image flip, image rotation, color focus assist, peaking, false color, dual zebra, waveform, vectorscope, RGB parade, histogram, image capture, custom LUTs, LUT import, image overlay, and audio meters for both HDMI and SDI up to 8 channels.

Elevate your on-set experience with the SmallHD Cine 7 7" Full HD Touchscreen On-Camera Monitor. Its wide-gamut display, cinema camera control, Teradek RT and Bolt 4K integration, and intuitive PageOS 4 make it an indispensable tool for cinematographers striving for perfection.

SmallHD Cine 7 Features

  • High-resolution 7" touchscreen: A crystal clear 1920 x 1200 resolution on a 7-inch screen
  • Brightness and clarity: A luminous 1800 cd/sq. m, 10-bit IPS LCD panel
  • Power flexibility: A swappable L-Series dual-battery plate
  • Full HD support: Can handle up to 1920 x 1080p60 input
  • Multiple connectivity: Offers 1x HDMI input, 1x HDMI output, 1x 3G-SDI input, and 1x 3G-SDI output
  • Advanced display tools: Comes with Waveform, RGB Parade, and Vectorscope
  • Versatile card slot: A card slot that supports image capture, LUTs, and upgrades
  • DCI-P3 color space: 10-bit color processing in 100% DCI-P3
  • High brightness: A stunning 1800 nits of brightness
  • Compatibility: 4K and HDR compatible
  • Wide viewing angle: A generous 160-degree viewing angle
  • Wall mountable: Comes with a wall mount

Key Features

  • Experience superior clarity with the SmallHD Cine 7's Full HD on-camera monitor.
  • Achieve accurate focus with the touchscreen monitor's enhanced focus assist tools.
  • Enjoy seamless integration using the monitor's HDMI and SDI cross-conversion feature.
  • Mount your monitor easily using the included Wooden Camera Universal Ultra Arm Mini.
  • Power your on-camera monitor reliably with the included Core SWX battery kit.
  • Optimize your exposure with customizable waveform and false color tools on this monitor.

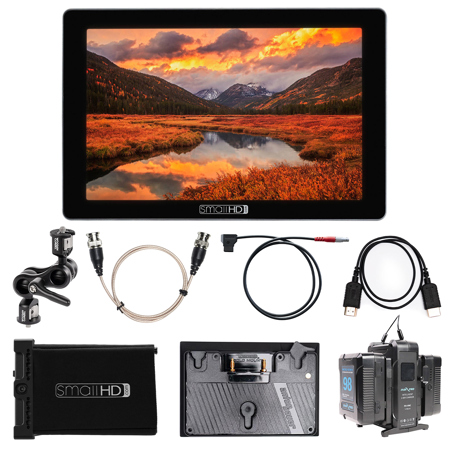

What's in the box:

  • SmallHD Cine 7 7" FHD Touch On-Camera Monitor
  • Sony L Series Battery Bracket
  • SmallHD 1 Year Limited Warranty
  • Bundle Includes:
  • Wooden Camera Universal Ultra Arm Mini Monitor Mount with Combo 1/4-20 & 3/8-16 Screw Knob
  • IndiPRO 2x Micro-Series 98Wh Gold Mount Li-Ion Battery and Dual Charger Kit
  • SmallHD 24" Thin Gauge BNC Male to BNC Male SDI Cable
  • 24" HDMI Cable
  • Sunhood
  • 36" D-Tap to LEMO 2-Pin Male Power Cable
  • Gold Mount Battery Bracket
